Covita Micro+basic Smokerlyzer Training Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

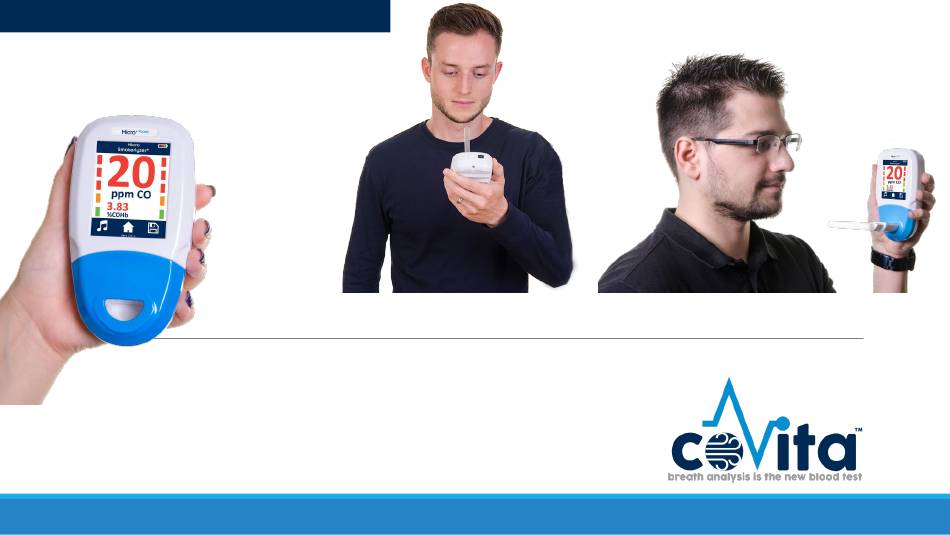

Part 1 | Breath CO Monitor Training
+™basic
®
Micro
Smokerlyzer
Training
# 1
se lli n g & m o st tr u ste d b r e a th
C O
m o n i to r i n th e w o r ld
1
© COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro+basic Smokerlyzer Training and is the answer not in the manual?

Questions and answers

Related Manuals for Covita Micro+basic Smokerlyzer Training

Summary of Contents for Covita Micro+basic Smokerlyzer Training

  • Page 1 & m o st tr u ste d b r e a th m o n i to r i n th e w o r ld © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 2: Table Of Contents

    Page 29 – 32 Infection Control & Accessories & Software ◦ Page 33 – 34 Warnings & Routine Maintenance ◦ Page 35 Reference Materials ◦ Page 36 The End © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 3 , a leader in the medical diagnostic equipment space, offers some of the most sought-after technologies for detecting, diagnosing, and managing, various health conditions, ailments, and dependencies. We continue to expand into the field of breath analysis for medical testing and diagnostics with our slogan, “breath analysis is the new blood test”.

  • Page 4: Support, Service & Training

    Smokerlyzer ™ Support, Service & Training ● coVita provides all support and service from our offices located in the USA. ● Any support issues will be handled immediately. ● Most issues can be resolved remotely with a quick troubleshooting call.

  • Page 5: Carbon Monoxide (Co)

    It is present in our bodies from both cellular breakdown and environmental sources. When inhaled, displaces oxygen in the bloodstream to form carboxyhemoglobin (COHb). This starves the body tissues of the oxygen, vital to repair, regeneration and general living. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 6 Half-life  The half-life of is about 5 hours. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 7 7000+ toxic substances present in cigarette smoke, some 70 of which are known carcinogens. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 8 ●For the smokers, the Smokerlyzer® is a motivational visual aid (similar to what the scale is to watching your weight) to encourage them to quit and to measure their progress while doing so. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 9 ® Smokerlyzers bring the reality of smoking to life by instantly showing smokers their levels in familiar traffic light colors. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 10: Smokerlyzer

    Since the 1980s, the Smokerlyzer® range breath carbon monoxide (CO) monitors have been the gold standard to aid in smoking cessation, tobacco treatment & education, wellness, behavioral health and clinical research. coVita | Bedfont demonstrated leadership as an innovator as seen in the progression of the devices below. 1986...

  • Page 11: Summary Of Features

     Research mode*  Monitor firmware & software Blind participants to any biofeedback * Micro+ ™pro ONLY - Must request feature be installed before monitors are shipped. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 12: Part Identification, Layout

    Chart - COppm to %FCOHb & %COHb ® 10. Smokerlyzer Poster 11. Infection Control Guide Note: Full Manual & COdata+ patient database software can be downloaded at www.covita.net © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 13: Monitor Layout

    7. Vent Hole – DO NOT COVER WITH LABELS ETC. 8. Battery Compartment 9. Battery compartment clip 10. Reset Button** 11. Programming Switch** **DO NOT USE UNLESS INSTRUCTED BY COVITA ** © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 14: Simple Steps

    ® Micro Smokerlyzer ™ Simple Steps INSTANT RESULTS RECORD RESULTS © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 15: Perform A Breath Test

    Press the music icon to mute the sound. Press the home icon to return to the main home screen. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 16 5. Remove the D-piece between tests to purge sensor with fresh air. 6. To switch off, press and hold the power button for 3 seconds, unit will also power off after 2 minutes of inactivity to save power. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 17 To compensate, they smoke those fewer cigarettes harder leaving both their nicotine intake and CO level relatively unchanged. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 18 Traffic Light Description Reading PPM Description Reading PPM Color Color Smoker Smoker Flashing Flashing Smoker 20-35 Smoker 7-35 Amber Smoker 7-19 Amber Smoker Green Non-Smoker Green Non-Smoker © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 19: Maintenance Screens

    ® Micro Smokerlyzer ™ Maintenance Overview Screens Set Time Traffic Light Ranges & Date Auto-Log Breath Calibration Hold ● Touch Gear Icon © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 20 Data Review | Maintenance Screens ● Monitor will autosave the last 150 readings to the log ● Readings are time & date stamped ● Touch Gear Icon ● Touch Log Icon © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 21 ● Touch Gear Icon ● Touch Calendar Icon ● Adjust as needed using up and down arrows and then press disk icon to save your changes © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 22 15 seconds as this is the optimal breath hold for conducting a test ● Touch Gear Icon ● Touch timer icon ● Touch save icon to lock in changes © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 23 ● Use the upper red slider and ● Touch Traffic Light Icon bottom green slider to adjust the ranges to meet your specific needs and then touch save icon or arrow to cancel. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 24 ◦ basic will remind you with a pop-up alert when calibration is due. Micro ™ ● Touch Gear Icon ● Touch Calibration Icon to Enter Calibration Mode © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 25 A. 20ppm Can of Carbon Monoxide (CO) B. Regulator C. Cali-adaptor Tubing ● Other Required Items: D. D-piece basic Micro ™ Kit Item: CO-CALIB-34-20 Can Only Item: CO-CAN-34-20 © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 26: Simple Calibration

    > help > support Note: You must lock in calibration by tapping green check mark. Connect Turn On Successful Connect Automaticall Regulator Tubing y Calibrates Calibration © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 27 5 a room temperature If calibration fails again minutes before environment before please contact coVita. calibrating. calibrating for minimum 5 minutes. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 28 6 months. monthly. ● Press ● Press to start calibration OR after replacing Press to defer calibration if you don’t the D-piece. have your calibration kit with you. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...

  • Page 29: Infection Control

    As with any electronic device it is important to not oversaturate the monitor with any liquid or wipe. A recommended tip is after wiping the monitor down, place the monitor screen side down until dry. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 30 On the outside, soft-touch finish of the silicone exterior provides a non-slip surface for enhanced grip and adds an additional layer of protection from scratches, dirt, and grease caused by everyday use. Item: SKIN © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 31 SteriBreath™ Eco mouthpieces are entirely made from paper and are 100% recyclable and 100% biodegradable. The mouthpieces are individually wrapped for convenience, ease of handling and greater infection control. Item: STERIBREATH (200 Mouthpieces) © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 32 COdata+™. The Smokerlyzer® checks for updates on launch and prompts you to update the monitor. Simply follow the prompts on the screen. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 33 After performing a reset, the device will need to have the date/time set and be calibrated before it can be used. © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 34 1. Replace batteries only with alkaline batteries when indicated by the empty symbol. 2. coVita recommends removal of the batteries when the device is not used for prolonged periods of time to prevent battery leaks. 3. Replace breath sampling D-piece every 30 days or if visibly soiled or ®...

  • Page 35: Reference Materials

    Training Smokerlyzer ® CO Level Interpretation Poster Part 2 – Breath CO Test Interpretation Quiz & Certificate of Completion Handouts Breath Carbon Monoxide (CO) Test Results Explained © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
  • Page 36 Also check out our website for more free tools, reference guides, and handouts. Thank you for being part of the coVita family. 800.707.5751 | www.covita.net | info@covita.net © COPYRIGHT 2023 COVITA LLC, ALL RIGHTS RESERVED | V050123 | PART 1...
