Summary of Contents for Covita COmpactUSB

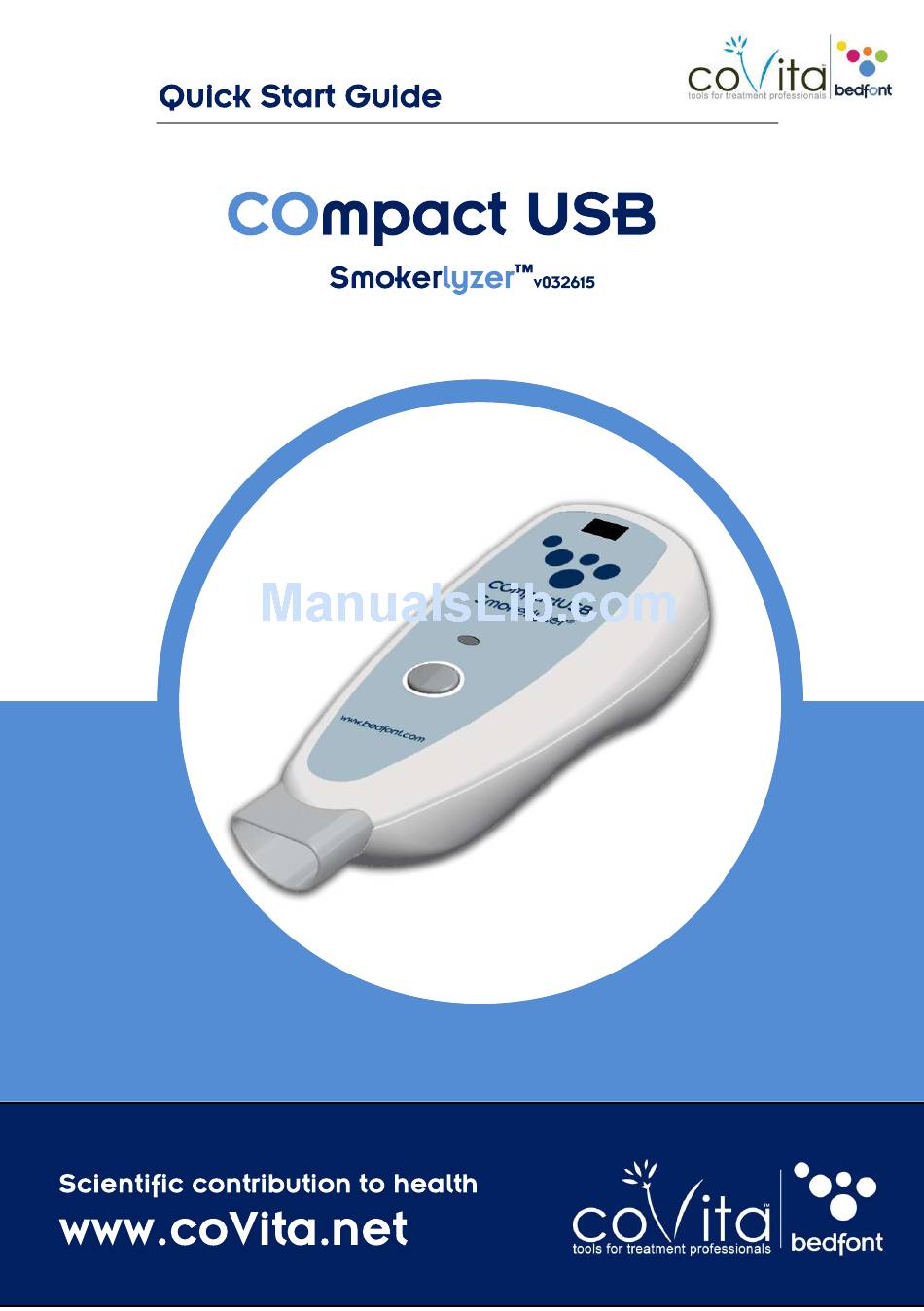

- Page 1 ™ Page 1 (800)707-5751 www.covita.net...
-
Page 2: Installation
A COmpactUSB package contains the device, USB cable, mouthpiece & D- piece. The COmpactUSB itself is a Human-Interface-Device (HID) and requires no drivers to be installed for operation; these are already contained within the Windows driver set. Installation To install the software, first go to our website www.covita.net/downloads/CompactUSB.exe... -
Page 3: Software Activation
If you don't see the window, please skip to Step 4. The COmpactUSB software will launch and a pop up activation window will prompt you to enter your product key. figure 1.1a The product key will normally be found on your invoice/sales receipt. - Page 4 4. COmpactUSB™ ACTIVATION: With the COmpactUSB™ software opened, the following screen will be displayed, figure 2. Note the device state is ‘Not Connected’. Figure 2. 5. Plug the small end of the USB cord into the device and the other larger end into any USB port using the supplied USB cable, Figure 3a.
- Page 5 6. A New device window will now appear, figure 4. This window only appears once for each device that is connected. Refer to the back of the COmpactUSB for the pin code. This should be entered on this screen and then click save.
- Page 6 Onscreen you will then be asked to inhale, figure 6. Figure 6. Then hold your breath for 15 seconds, figure 7. Figure 7. Page 6 (800)707-5751 www.covita.net...
- Page 7 Wait a few seconds for the reading to stabilize. Then Click ‘Save & Continue’. Figure 8. 10. You will now need to answer the two questions, figure 9. Then Click ‘Save & Continue ’. Figure 9. Page 7 (800)707-5751 www.covita.net...
- Page 8 Click ‘Reset’. It will ask you to ‘Please Wait’ while the unit zeros, figure 11. Then ‘Connected - Ready’ as in figure 5. Start with Step 6 to repeat the test. Figure 11. Page 8 (800)707-5751 www.covita.net...
- Page 9 Page 9 (800)707-5751 www.covita.net...
