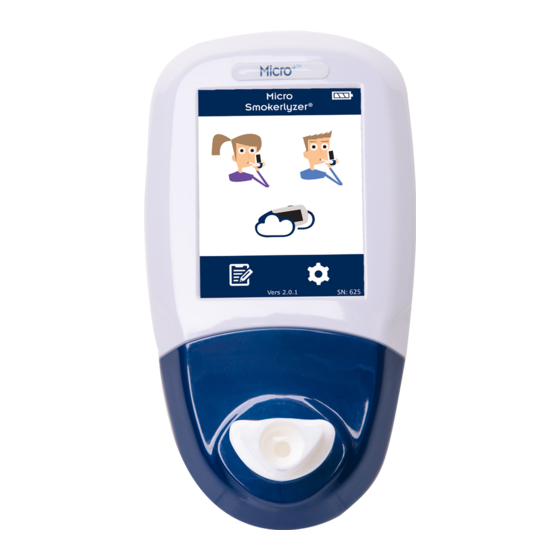

Covita bedfont Micro+ basic Smokerlyzer Manual

Firmware ≤ V2.31
A. Calibra on Tips
Figure B

B. Required Parts

C. Calibra on Kit Set Up
Micro
Smokerlyzer
Calibration Guide
1. coVita calibration instructional videos can be found
under the support section of www.covita.net .
2. You must calibrate every 6 months to correct for
sensor drift using 20 ppm Carbon Monoxide (CO)
calibration gas. On occasion your
Figure A
prompt you for an intermittent calibration.
3. Your
prompt you to calibrate every 6 months.
4. Be sure to identify your flow meter-regulator for
correct instructions.
5. Remove flow meter-regulator from can for proper
storage and replace dust cap. (You may hear a pop
and this is normal.)
Ensure that the cali-adaptor tubing has no kinks
6.
while the gas is flowing.
Be sure you are using the compatible cali-adaptor
7.
tubing and D-piece to avoid issues with calibrating.
8. Be sure you are inserting the D-piece into the monitor
correctly. The circle opening must be facing you.
(Figure A & B)
Never block the air/vent hole on the Micro
9.
labels etc.
20 ppm Carbon Monoxide (CO) Calibration
A.
Can
Fixed Flow 1 lpm meter-regulator
B.
Cali-adaptor Tubing
C.
D-Piece
D.
E. Micro
1. Remove white or black dust cap from can of gas
2. Ensure the control valve on the flow meter-regulator
is in the off position.
3. Screw the regulator-flow meter onto the gas can
(some slight pressure may be required). This can be
done by screwing the gas can into the valve.
4. Attach the small end of the tubing onto the regulator-
flow meter.
Insert the larger end of the cali-adaptor tubing into
5.
the D-piece. Ensure a tight fit.
Verify the gauge on the regulator-flow meter is
6.
registering gas (arrow is not on zero)
www.covita.net | 800-707-5751
Copyright 2018 coVita LLC All Rights Reserved v042618
™
+ basic, baby, & pro
®
+™
Micro
has built in calibration reminders to
+™ ®
Smokerlyzer
+™
Micro
may
+™
with
