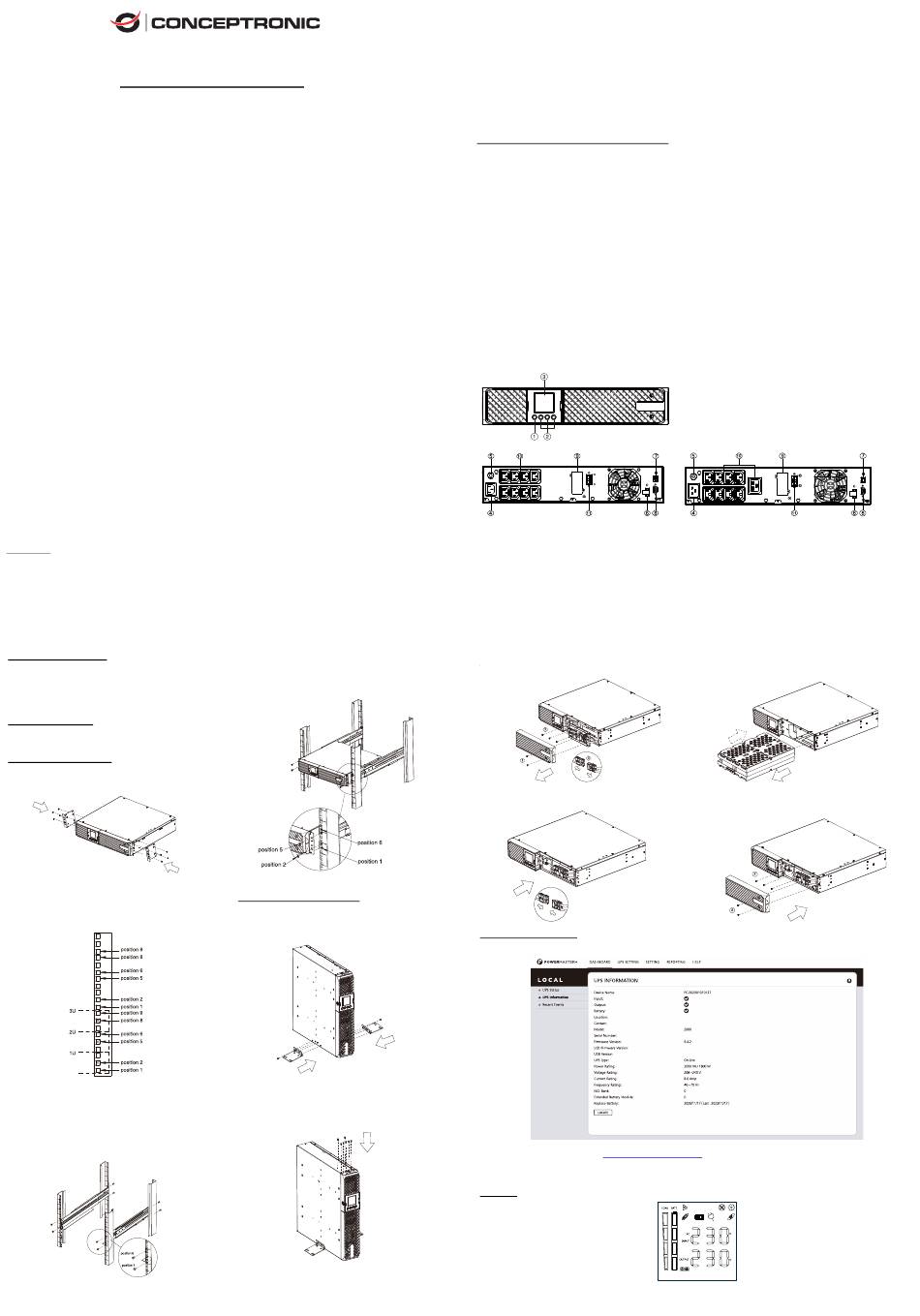

Conceptronic ZEUS51E1K User Manual

User Manual
Online UPS
ZEUS51E1K / ZEUS51E2K / ZEUS51E3K
This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual
thoroughly before attempting to unpack, install, or operate the UPS.
CAUTION! The UPS must be connected to a grounded AC power outlet with fuse or circuit breaker protection. DO NOT plug the UPS into an outlet that is
not grounded. If you need to power-drain this equipment, turn off and unplug the unit.
CAUTION! The battery can power hazardous components inside the unit, even when the AC input power is disconnected.
CAUTION! The UPS should be placed near the connected equipment and easily accessible.
CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area, free of conductive contaminants. (Please
see specifications for acceptable temperature and humidity range).
CAUTION! (No User Serviceable Parts): Risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service
personnel.
CAUTION! (Non-Isolated Battery Supply): Risk of electric shock, battery circuit is not isolated from AC power source; hazardous voltage may exist
between battery terminals and ground. Test before touching.
CAUTION! To reduce the risk of fire, connect the UPS to a branch circuit with 10 amperes (1000 / 1500 / 2000) / 16 amperes (3000) maximum over-current
protection in accordance to CE requirement.
CAUTION! The AC outlet where the UPS is connected should be close to the unit and easily accessible.
CAUTION! Please use only VDE-tested, CE-marked mains cable, (e.g. the mains cable of your equipment), to connect the UPS to the AC outlet.
CAUTION! Please use only VDE-tested, CE-marked power cables to connect any equipment to the UPS.
CAUTION! When installing the equipment, ensure that the sum of the leakage current of the UPS and the connected equipment does not exceed 3.5mA.
CAUTION! The 1000 / 1500 / 2000 / 3000 / Battery module models are only qualified maintenance personnel may carry out installations.
CAUTION! Do not unplug the unit from AC Power during operation, as this will invalidate the protective ground insulation.
CAUTION! To avoid electric shock, turn off and unplug the unit before installing the input/output power cord with a ground wire. Conne ct the ground wire
prior to connecting the line wires!
CAUTION! Do not use an improper size power cord as it may cause damage to your equipment and cause fire hazards.
CAUTION! Wiring must be done by qualified personnel.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! Under no circumstances this unit should be used for medical applications
involving life support equipment and/or patient care.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not use with or near aquariums. Condensation from the aquarium
can come in contact with metal electrical contacts and cause the machine to short out.
CAUTION! Do not dispose of batteries in fire as the battery may explode.
CAUTION! Do not open or mutilate the battery, released electrolyte is harmful to the skin and eyes.
CAUTION! A battery can present a risk of electric shock and high short circuit current. The following precaution should be observed when working on
batteries
1. Remove watches, rings or other metal objects.
2. Use tools with insulated handles.
CAUTION! The unit has a dangerous amount of voltage. When the UPS indicators is on, the units may continue to supply power thus the unit's outlets may
have a dangerous amount of voltage even when it's not plugged in to the wall outlet.
CAUTION! Make sure everything is turned off and disconnected completely before conducting any maintenance, repairs or shipment.
CAUTION! Connect the Protection Earth (PE) safety conductor before any other cables are connected.
WARNING! (Fuses): To reduce the risk of fire, replace only with the same type and rating of fuse.
DO NOT INSTALL THE UPS WHERE IT WOULD BE EXPOSED TO DIRECT SUNLIGHT OR NEAR A STRONG HEAT SOURCE!
DO NOT BLOCK OFF VENTILATION OPENINGS AROUND THE HOUSING!
DO NOT CONNECT DOMESTIC APPLIANCES SUCH AS HAIR DRYERS TO UPS OUTPUT SOCKETS!
SERVICING OF BATTERIES SHOULD BE PERFORMED OR SUPERVISED BY PERSONNEL KNOWLEDGE OF BATTERIES AND THE REQUIRED
PRECAUTIONS. KEEP UNAUTHORIZED PERSONNEL AWAY FROM BATTERIES!
UNPACKING
(1) UPSx1; (2) Quick installation guide x1; (3) Input power cord (EU/UK) x2; (4) Rackmount ears (Stands) x2; (5) Flat head screws: M4x8Lx8; (6) Screw hole
dust covers x8; (7) Pan head screws:M5x12Lx4; (8) Plastic washers x8; (9) USB cable x1; (10) RS232 cable x1
HARDWARE INSTALLATION
These versatile UPS systems can be mounted in a rackmount or
vertical tower orientation. This versatility is especially important to
growing organizations with changing needs that value having the
option to position a UPS on a floor or in a rackmount system. Please
follow the instructions below for the respective mounting methods.
SAFETY PRECAUTIONS
CAUTION! To prevent the risk of fire or electric shock, only use the
supplied hardware to attach the mounting brackets.
RACKMOUNT INSTALLATION
Step 1: Rackmount ears installation
Attach the two rackmount ears to the UPS using the provided screws
M4X8L*8pcs.
Step 2: Rackmount rails Installation(optional)
1) The rails adjust to mount in 48-cm (19-inch) panel racks from 52
to 91.5cm (20.5 to 36 inches) deep. Select the proper holes in the
rack for positioning the UPS in the rack. The UPS takes up
position 1 through position 6.
2) Attach the rackmount rail to your rack with two M5X12L screws
and two plastic washers at the front of the rack. (Located in
position 1 & position 6) Do not tighten the screws. Adjust the rail
size on the rail assembly of your rack. Secure the rail to the rear of
the rack with two M5X12L screws and two plastic washers.
Tighten all screws at the front and rear of the rail. Once
completed, perform the same steps for assembling the other
rackmount trail.
Step 3: Install the UPS on the rack (optional)
Place the UPS on a flat stable surface with the front of the unit facing
toward you. Secure the UPS to your rack with four M5X12L screws at
the front of the rack. (Located in position 2 & position 5).
VERTICAL/TOWER INSTALLATION
Step 1: Attach the base stands
Tighten the screws (M4X8L*8pcs) of the base stands (rackmount ears)
onto the bottom of the UPS.
Step 2: Attach dust covers
Insert dust cover into the rackmount ear screw holes that are not being
used.
POWER MODULE FRONT/REAR PANEL DESCRIPTION
1. Power On/Off Button
Master ON/OFF for the UPS.
2. Function Buttons
Scroll up, scroll down, select and cancel LCD menu.
3. Multifunction LCD Readout
Indicate status information, settings and events.
4. AC Input Inlet
Connect the AC Power cord to a properly wired and grounded outlet.
5. Input Circuit Breaker
Provide input overload and fault protection.
6. EPO (Emergency Power Off) Connector
Enable Power-Off in emergency from a remote location.
7. USB port
This is a connectivity port which allows communication and control between the UPS and the connected computer. It is recommended to install the Power
master software on the PC/Server connected with the USB cord.
8. Serial Port
Serial port provides communication between the UPS and the computer. The UPS can control the computer's shutdown during a power outage through the
connection while the computer can monitor the UPS and alter its various programmable parameters.
9. SNMP/HTTP Network slot
Slot to install the optional SNMP card for remote network control and monitoring.
10. Battery Backup & Surge Protected Outlets
Provide battery backup and surge protection. They ensure power is provided to connected equipment over a period of time during a power failure.
11. Extended Runtime Battery Module Connector
Connect to additional external battery modules.
ZEUS51E1K / ZEUS51E2K / ZEUS51E3K
ZEUS51E1K / ZEUS51E2K
Step 1: Remove the front panel. Remove the retaining screws from the
Battery Installation and replacement battery bracket and then remove the cover itself. undraw the
connectors.
Step 3: Fasten the battery bracket and then insert the connectors.
Place the connectors in the bracket.
SOFTWARE INSTALLATION
Power Master+ management software provides a user-friendly interface for your power systems. The graphic user-interface is intuitive and displays essential
power information at a glance. Please follow procedure below to install the software.
Installation procedure:
Download Power Master+ from the website: http://www.powermonitor.software/
Double-click the file and follow the installation steps.
When your computer restarts, the Power Master+ software will appear as a blue icon located in the system tray.
LCD Panel
ZEUS51E3K
Step 2: Pull the battery tray out slowly. Put the new battery tray back
into the compartment after that.
Step 4: Tighten the screws of the battery bracket and front panel .
