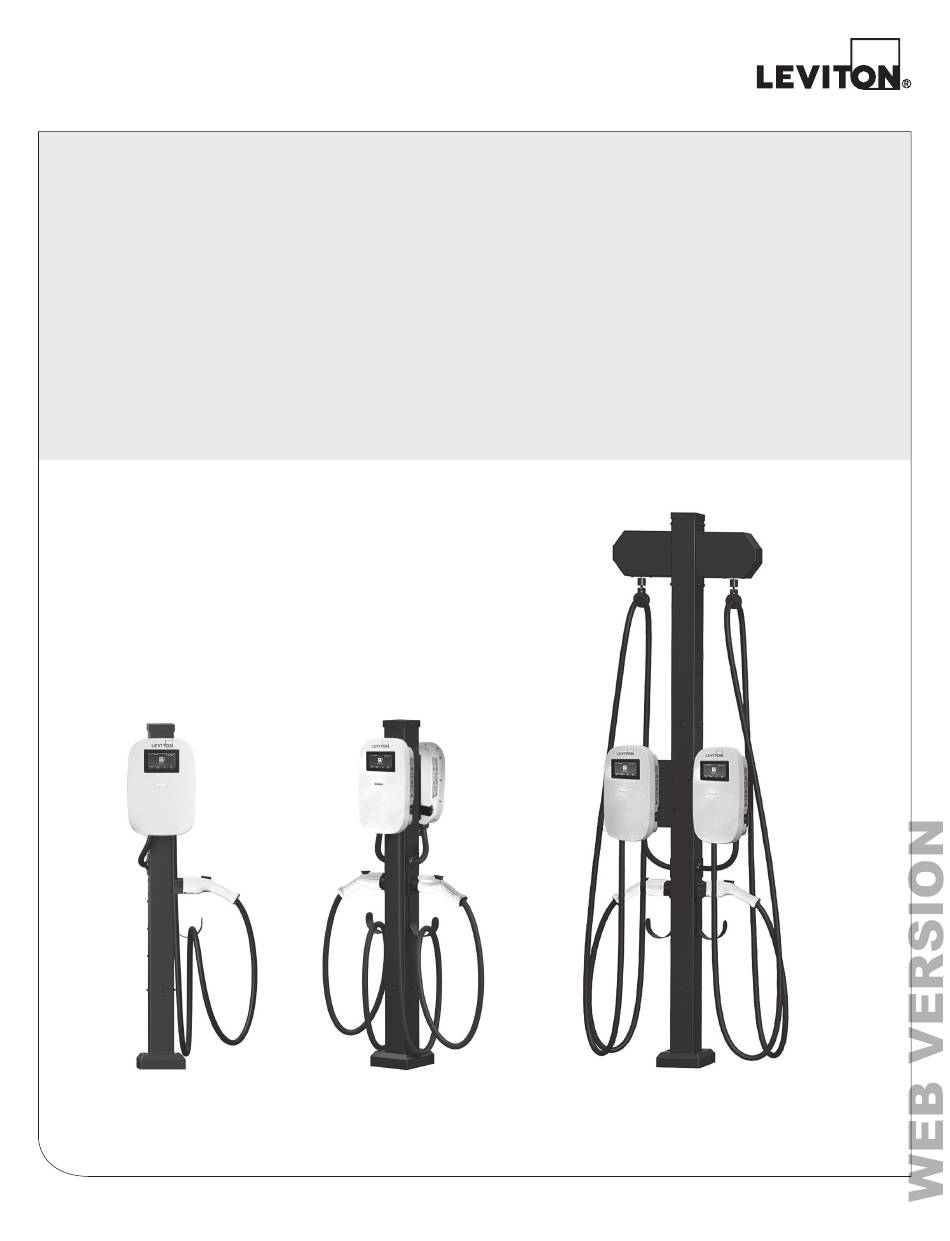

EV Series Charging Pedestals
Cat. Nos. EPED1-1, EPED2-2, EPCMX-6, and EPCMY-6
Installation Manual
Cat. No. EPED1-1
Cat. No. EPED2-2
Cat. Nos. EPCMX-6 and EPCMY-6
PK-A3510-10-00-5A-W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Leviton EV Series

  • Page 1 EV Series Charging Pedestals Cat. Nos. EPED1-1, EPED2-2, EPCMX-6, and EPCMY-6 Installation Manual Cat. No. EPED1-1 Cat. No. EPED2-2 Cat. Nos. EPCMX-6 and EPCMY-6 PK-A3510-10-00-5A-W...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 WARNINGS .............................1 INSTALLATION ..........................2 2.1 Prepare The Concrete Base ....................2 2.2 Concrete Base Requirements ....................2 2.3 Anchoring ..........................3 2.4 Pedestal Installation Without Cable Management System ..........4 2.5 Pedestal With Cable Management System Installation ............8 STANDARD STATEMENTS AND WARRANTY ................13...
  • Page 4: Warnings

    1 WARNINGS Safety Instructions Failure to follow the safety instructions can result in risk of death, injuries and damage to the device! The producer assumes no liability for claims resulting from this! Electrical hazard! • The installation, commissioning and maintenance of the charging station must only be performed by correctly trained, qualified and authorized personnel who are knowledgeable of and responsible for the compliance with existing standards and installation regulations.
  • Page 5: Installation

    2 INSTALLATION 2.1 Prepare the Concrete Base Prepare concrete base per 15.75 in. measurements shown. (400 mm) 15.75 in. (400 mm) 15.75 in. (400 mm) Fill concrete base per measurements shown. 3.9 in. (100 mm) 15.75 in. (400 mm) 15.75 in. (400 mm) 7.1 in.
  • Page 6: Anchoring

    2 INSTALLATION 2.3 Anchoring Position the Lower Pedestal on concrete base. 2. Anchor the Lower Pedestal to the concrete base using four M8*100 mm Expansion Screws.
  • Page 7: Pedestal Installation Without Cable Management System

    2 INSTALLATION 2.4 Pedestal Installation Without Cable Management System 2.4.1 Packing List Single Version Back-to-back Version Item Cat. No. EPED1-1 Cat. No. EPED2-2 Description Number QTY (PCS) QTY (PCS) Middle Pedestal Lower Pedestal Connector Base and Hook M5*22 mm Screw M8*100 mm Expansion Screw M8*18 mm Screw M6*18 Pan Head Torx Screws...
  • Page 8 2 INSTALLATION Verify box contents match these parts. PEDESTAL Installation...
  • Page 9 2 INSTALLATION 2.4.2 Asssembly a. Mounting the single version (Cat. No. EPED1-1): Insert the Middle Pedestal into the Lower Pedestal. Secure with four M6*18 mm Screws, M6 Spring Washers, and M6 Flat Washers. NOTE: See the positional ordering M6*18 mm Screws with M6 Spring Washers and Step 5 M6 Flat Washers.
  • Page 10: Connect The Cables

    2 INSTALLATION b. Mounting the back-to-back version (Cat. No. EPED2-2): Take off the wall-mounted bracket, and secure to the corresponding position on the pedestal with four M8*18 mm Screws. 2. Mount charging stations on the charger holder plate using two M5*12 mm Screws on two sides of the charger. Repeat for other side.
  • Page 11: Pedestal With Cable Management System Installation

    2 INSTALLATION 2.5 Pedestal With Cable Management System Installation 2.5.1 Packing List Side to side Version Cat. Nos. EPCMX-6 and EPCMY-6 Item Number Description QTY (PCS) Middle Pedestal Lower Pedestal Cable Retractor Connector Base and Hook Upper Pedestal M5*14 Countersunk Head Screws M8*18 mm Screw M5*22 Countersunk Head Screws M8*100 mm Expansion Screw...
  • Page 12 2 INSTALLATION Verify box contents match these parts. PEDESTAL Installation...
  • Page 13 2 INSTALLATION 2.5.2 Assembly Insert the Middle Pedestal into the Lower Step 6 Pedestal and secure wire with four M6*18 mm Screws, M6 Spring Washers, and M6 Flat Washers. NOTE: See the positional ordering M6*18 mm Screws with M6 Spring Washers and M6 Flat Washers.
  • Page 14 2 INSTALLATION 2.5.3 Positioning the cable clamp Determine where to position the charging station cable clamp (Choose the suitable cable sleeve, which the size is marked inside the cable steeve). The cable portion between the clamp and the charging connector must not touch the ground when the cable management system is completely retracted.
  • Page 15 2 INSTALLATION 2.5.4 Mounting the side to side Charging Station Remove the wall-mounted bracket, and secure it in the corresponding position on the side to side bracket with eight M8*18 mm Screws. 2. Secure side to side bracket on to the Middle Pedestal with four M8*18 mm Screws, M8 Spring Washers, and M8 Flat Washer.
  • Page 16: Standard Statements And Warranty

    LIMITED 1 YEAR WARRANTY AND EXCLUSIONS Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for one year from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option.
