Leviton 1PF18 Quick Start Manual

WARNINGS:
• TO AVOID FIRE, SHOCK OR DEATH: TURN OFF POWER AT CIRCUIT BREAKER OR
FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING!
• To be installed and/or used in accordance with electrical codes and regulations.
• If you are not sure about any part of these instructions, consult an electrician.

Overview

Each model can accommodate one or two conduit raceways. There are four, 7/16 in. holes on the internal mounting bracket.
They are secured to a flat surface with the provided hardware. The pedestal can be used with a UL/C-UL listed (RTRT/RTRT7)
receptacle rated at 60A maximum, and a UL/C-UL listed switch (WFXV/WFXV7) rated at 60A maximum.
NOTE: All 12 in. heights are for special applications only, as they do not meet UL Standard 1773, paragraph 5.3.1.
"The distance between the marked final grade level of the mounting post/pedestal and the lowest live part shall not be less
than 12 in." These models may be used in applications that extend the height requirement to allow for that 12 in. distance.
Examples are concrete columns, piers, and indoor installations that do not require a "3R" rating. Low voltage for communication
applications, such as data, voice, Ethernet, or speaker wiring can be located lower than the 12 in. minimum.

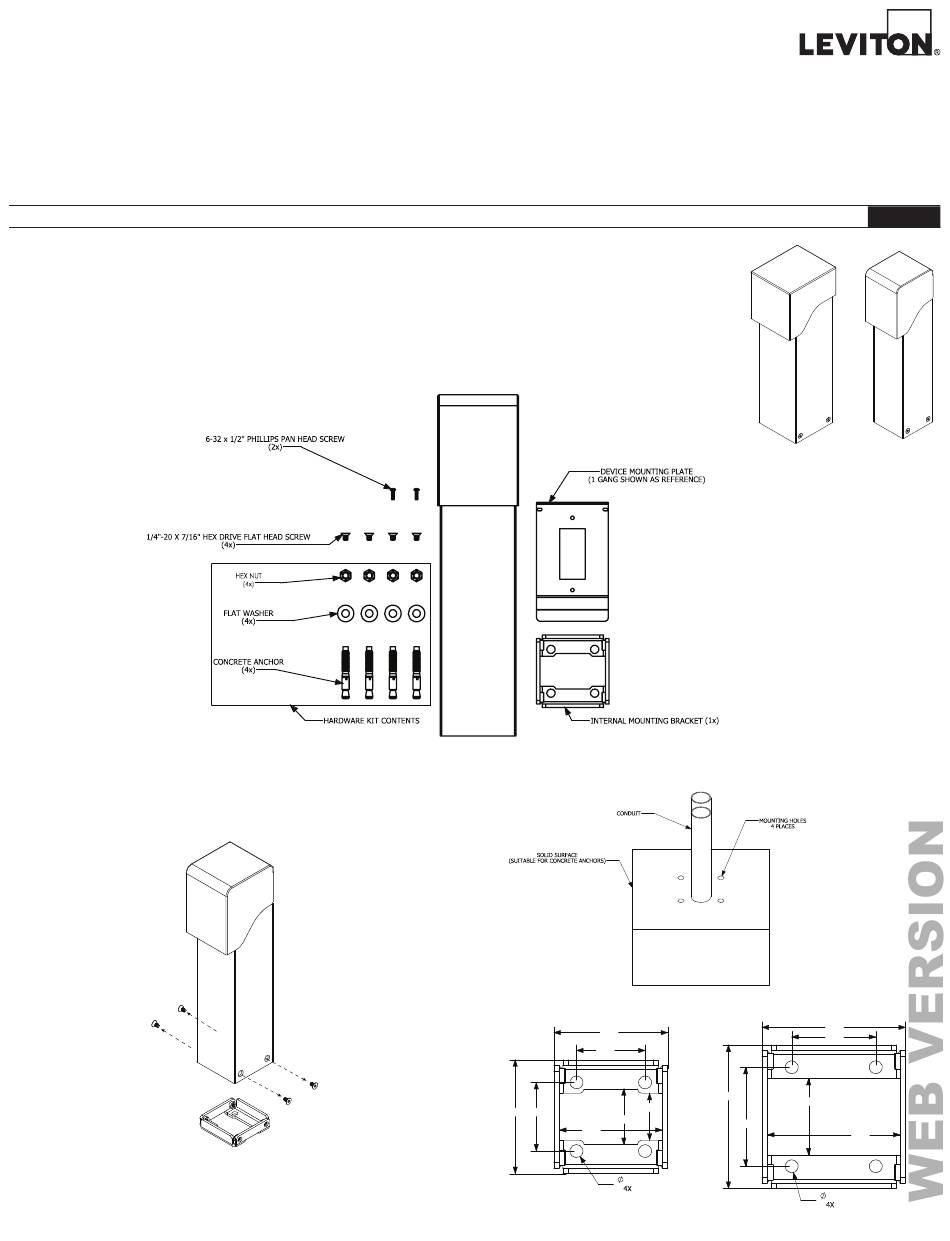

What Is Included

Installation
1. Remove internal mounting bracket located inside the bottom of the pedestal.
Use a 5/32 in. Allen wrench or hex drive bit to remove the four screws on the
bottom of the pedestal.
NOTE: Do NOT discard the bracket or screws, as you will re-install them in
a later step.
Flush Mount Pedestal with Internal Mounting Bracket
Cat. Nos. 1PF18 and 1PF24

INSTALLATION INSTRUCTIONS

CAUTIONS:
• Splices, if necessary, must be made with proper splicing equipment, materials or kits.
• No user serviceable components. DO NOT attempt to service or repair.
2. Use the supplied internal mounting bracket as a template, or use the
dimensions shown in the diagram, and drill four mounting holes.
1PF Models
3.83 in.
2.31 in.
1.58 in.
3.83 in. 2.31 in.
1.88 in.
3.46 in.
0.44 in.
Can Accommodate:
Two 1 1/4 in. Conduits
PK-A3466-10-00-0A
ENGLISH
2PF Models
4.83 in.
2.83 in.
4.83 in.
2.58 in.
3.33 in.
4.46 in.
0.44 in.
Can Accommodate:
Two 1 1/2 in. Conduits
