Flexco FLEX-LIFTER Installation & Safety Instructions

Conveyor belt lifter
Hide thumbs Also See for FLEX-LIFTER:
1
2
3
4

Advertisement

Quick Links

Download this manual

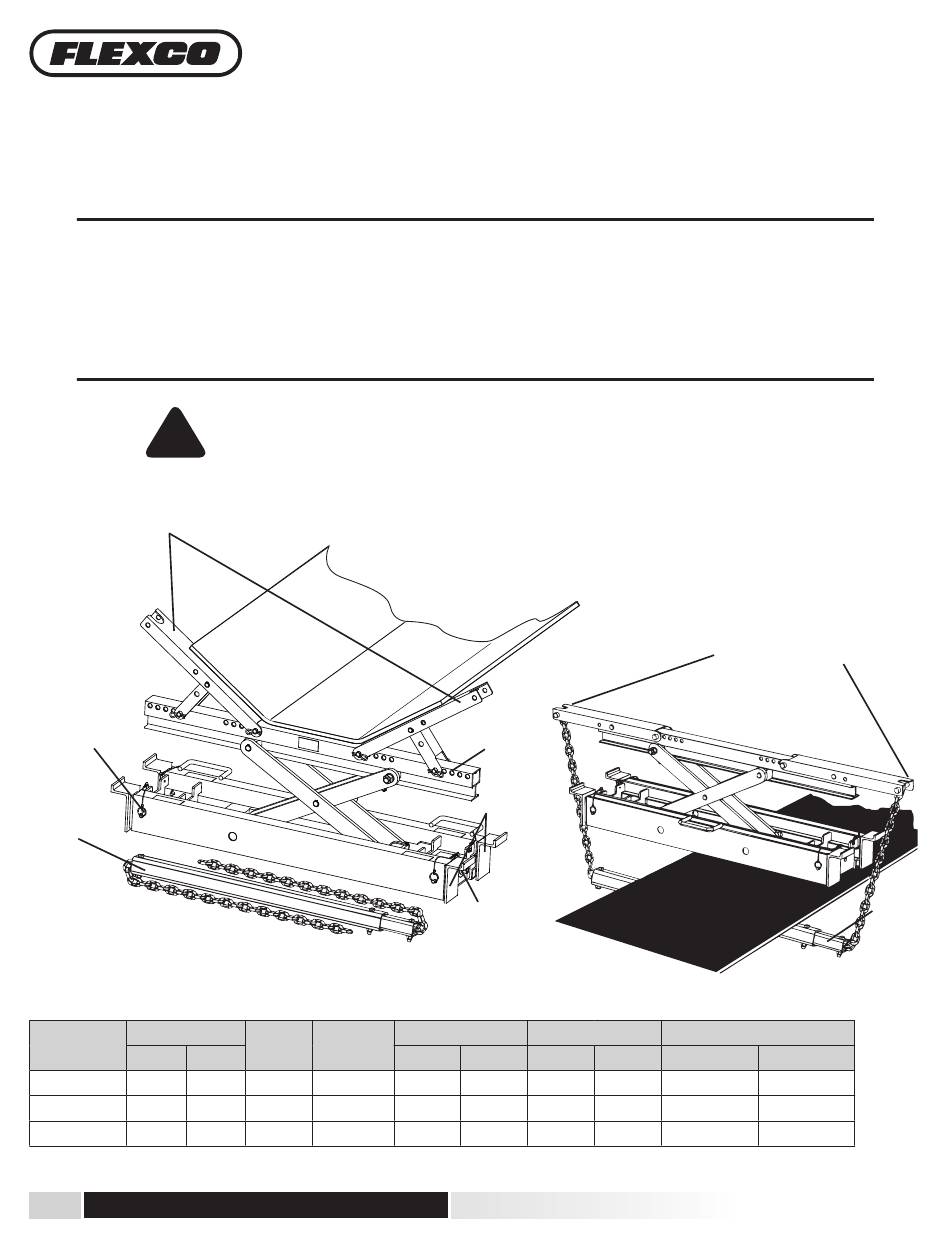

Installation & Safety Instructions
!
Trough Wings
Extension Leg Pin (4)
Return Lift Bar
SPECIFICATIONS:
Weight
Size
lb.
Medium
66
Large
78
X-Large
128
www.flexco.com • phone: 1-800-541-8028
FLEX-LIFTER
CONVEYOR BELT LIFTER
Before operating the Flex-Lifter™, users must read
and understand the following instructions.
Model
Part No.
kg.
29.9
FL-M
76469
35.4
FL-L
76470
58.1
FL-XL
76983
Trough
Wing Pin (4)
Extension Legs (4)
Adjusting Nut
Closed Height
Vertical Lift
in.
mm
in.
7.25
185
14.12
7.25
185
16.25
7.75
200
18.62
™
Attachment Points
Belt Width Range
mm
in.
355
36–60
410
48–72
475
72–96
Return
Lift Bar
mm
900–1500
1200–1800
1800–2400

Advertisement

loading
Need help?

Need help?

Do you have a question about the FLEX-LIFTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Flexco FLEX-LIFTER

Summary of Contents for Flexco FLEX-LIFTER

  • Page 1 Installation & Safety Instructions FLEX-LIFTER ™ CONVEYOR BELT LIFTER Before operating the Flex-Lifter™, users must read and understand the following instructions. Trough Wings Attachment Points Trough Extension Leg Pin (4) Wing Pin (4) Extension Legs (4) Return Lift Bar Return...
  • Page 2 To prevent loss of structural integrity: workers to deploy and remove the belt lifter from • Flex-Lifter™ must only be used to lift conveyor belts - awkward setups to avoid muscular and skeletal injuries. Do Not Lift personnel, vehicles, or other equipment with this dedicated lifting device.
  • Page 3 • Ratchet, Drill Motor or Impact Wrench Fig. 1 STEP 1. Measure conveyor width. After determining the area of the conveyor where the Flex-Lifter™ will be used, measure the inside width of the main conveyor structure (Fig. 1). Fig. 2a STEP 2.
  • Page 4 Safely slide the Flex-Lifter from the structure and position the extension legs to their innermost position for safe transporting and storage. Visit www.flexco.com for other Flexco locations and products, or to find an authorized distributor. ©2020 Flexible Steel Lacing Company. 09-10-24. X1689 —4—...
