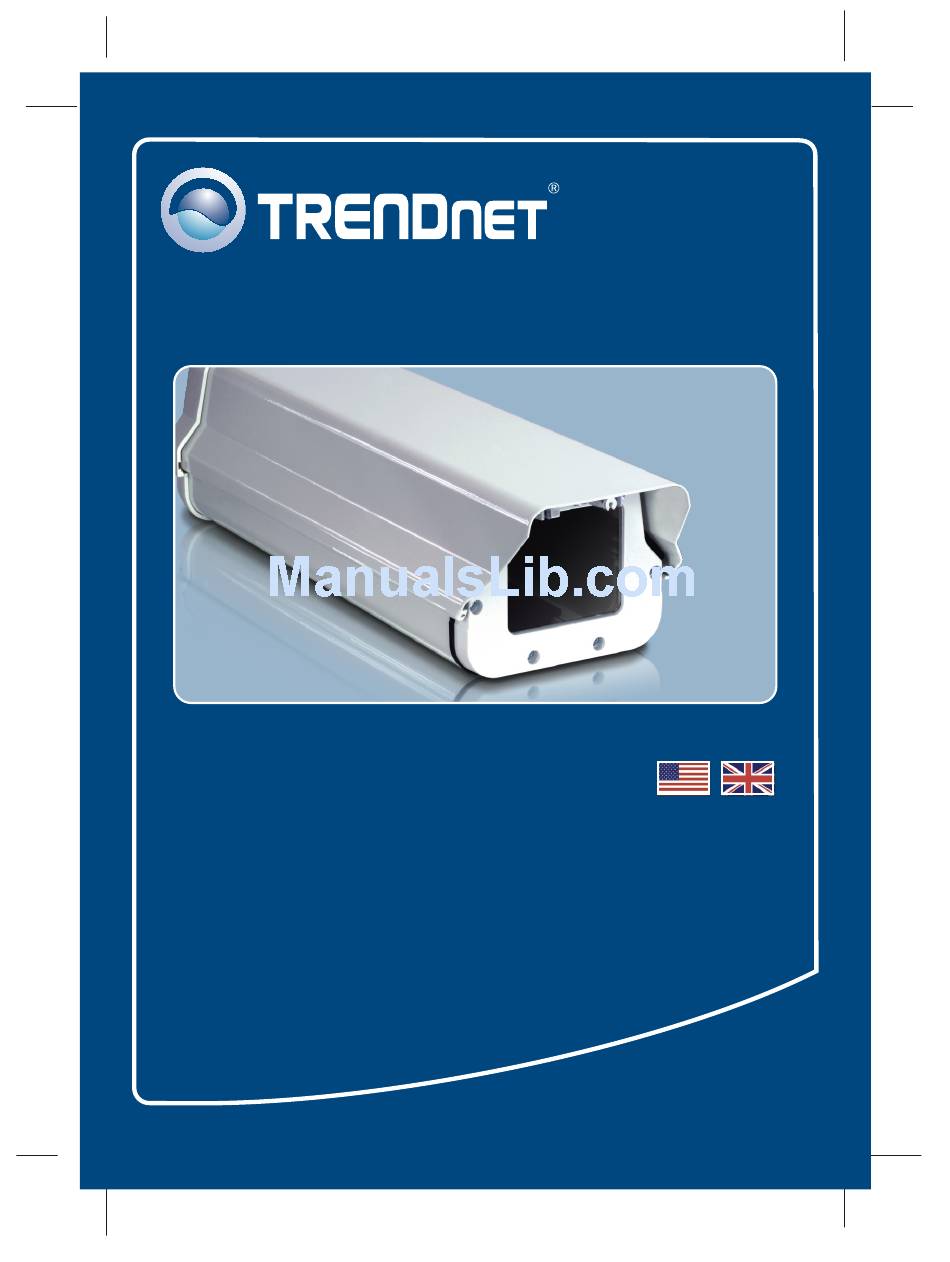

- Page 1 Quick Installation Guide TV-H510 H/W: V1...
- Page 2 Table of Contents English ...................... 1 1. Before You Start ................2. Hardware Installation ................. Troubleshooting ..................9 Version 04.13.2009...
-
Page 3: English
1. Before you start Package Contents TV-H510 Quick Installation Guide Power Adapter (12V DC, 0.6A) 1 x Wall Mount Bracket 4 x Hex Screws 4 x Mounting Screws 4 x Mounting Screw Anchors 4 x Mounting Washers 1 x Allen Wrench 1 x Cable Strain Relief Plug * Installation Requirements The following items below are not included. -
Page 4: Hardware Installation
2. Hardware Installation Note: Configure your IP Camera to match your network before installing the device. Hardware Installation 1. Lift up the latch and pull the roof upward. 2. Remove the screws from the metal grounding bar. 3. Move the metal grounding bar towards the back of the TV-H510 and secure it with the screws. - Page 5 6. Connect the black bracket back inside the enclosure. Move the camera as close to the glass as possible. This example shows a TRENDnet TV-IP100W-N. 7. Insert the TV-H510 power adapter, the IP Camera's power adapter and Ethernet cable through the mounting bracket.
- Page 6 8. Insert the TV-H510's power adapter, the IP Camera's power adapter and Ethernet cable through the hole. 9. Connect the Ethernet cable and power adapter to the camera 10. Connect the power terminal to the provided 12V DC, 0.6A power adapter.
- Page 7 Installing External Antenna to Wireless IP Camera Note: 1. Before installation, you need the following products: TEW-ASAK, antenna cable (TEW-L406 or TEW-L412) and an external antenna (TEW-AO14D). 2. Since the TV-IP512W requires two surge arresters (TEW-ASAK), two antenna cables (TEW-L406 or TEW-L412) and two external antennas (TEW-AO14D), you will need to perform steps 3, 4, 5 and 8 for each surge arrester (TEW-ASAK).
- Page 8 5. Connect the SMA end of the TEW-ASAK(s) to the IP camera. 6. Connect the IP camera's power adapter to the IP camera. 7. Follow steps 10-12 in the Hardware installation section above. 8. Follow the directions in the QIG for the TEW-ASAK(s) to connect the surge arrester to your external antenna (eg.
- Page 9 Mounting the Camera Housing 1. Place the mounting bracket against the wall and mark each of the four holes with a pencil. 2. Drill holes for the screw anchors at each marked position. Make sure the drill bit matches the size of the provided screw anchors.
- Page 10 Your installation is now complete. For detailed information regarding the TV-H510 configuration and advanced settings, please visit TRENDnet's website at www.trendnet.com Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 11: Troubleshooting
If you still encounter problems or have any questions regarding the TV-H510, please contact TRENDnet's Technical Support Department. - Page 12 If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
- Page 13 TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
- Page 14 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 15 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2009. All Rights Reserved. TRENDnet.
