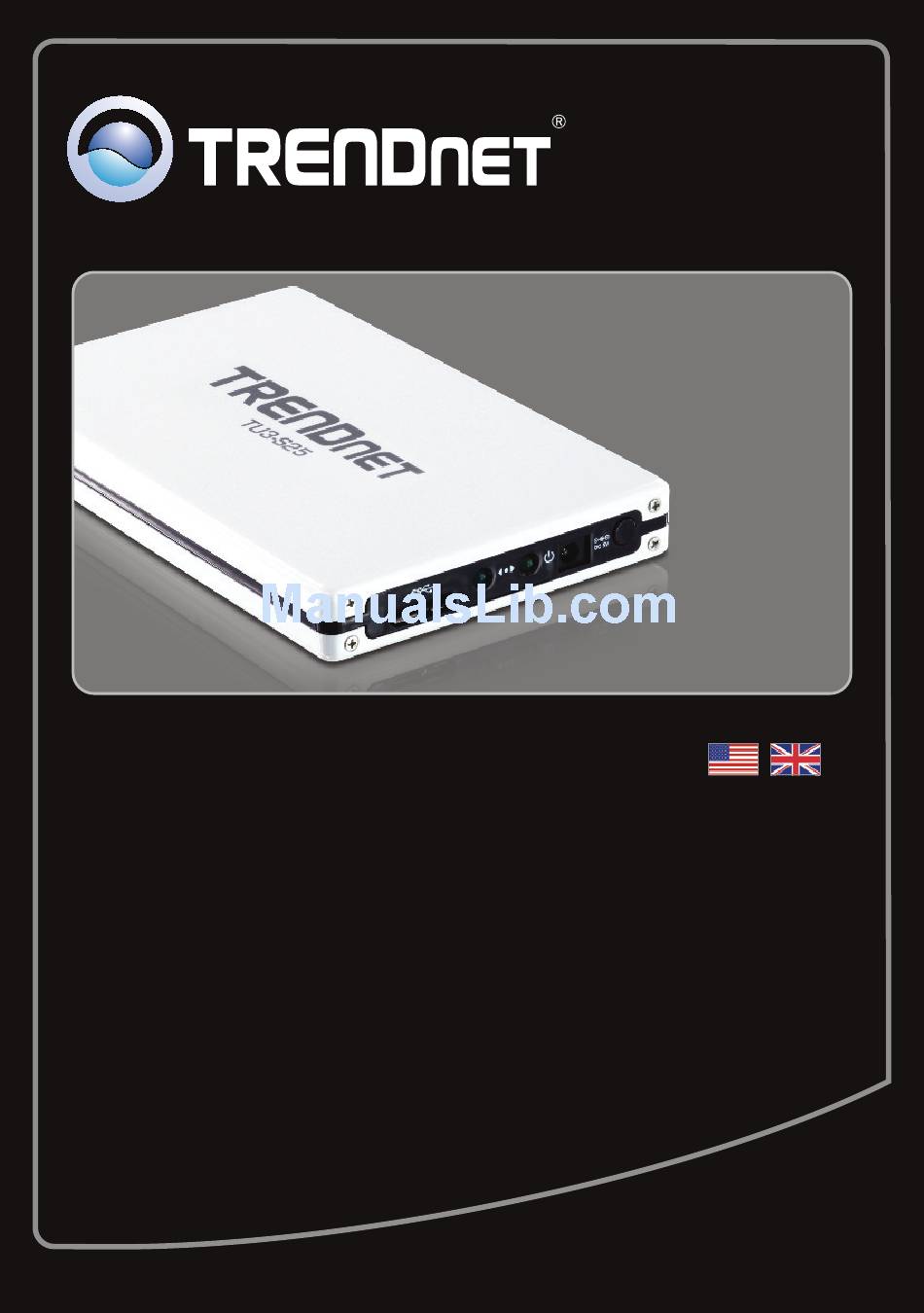

- Page 1 Quick Installation Guide TU3-S25 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Accessing Storage Devices on TU3-S25 Troubleshooting Version 06.17.2010... -
Page 3: English
1. Before You Start Package Contents TU3-S25 Multi-Language Quick Installation Guide CD-ROM (User’s Guide) USB 3.0 Type A to micro B Cable (0.9m/3ft) Hard drive mouting screws System Requirements USB 3.0 / 2.0 / 1.1 port 2.5” SATA I/II Internal Hard Drive CD-ROM Drive Supported Operating Systems CPU Memory... -
Page 4: Hardware Installation
2. Hardware Installation 1. Unscrew and remove the two case covers. 2. Unscrew the circuit board from the TU3-S25. 3. Connect the SATA hard drive to the circuit board. 4. Secure the circuit board to the TU3-S25. - Page 5 5. Slide the cover back on and secure it with the 4 screws. 6. Connect the micro B end of the USB cable into the TU3-S25. 7. Connect the Type A end of the USB cable into an available USB port on your computer. 8.
-
Page 6: Accessing Storage Devices On Tu3-S25
Hard Disk Drives. Your Configuration is complete For detailed information regarding the TU3-S25 configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register... -
Page 7: Troubleshooting
MassStorage USB Device is listed. 2. If you are attaching a brand new hard drive, format the drive. Please refer to question 2 for more information. If you still encounter problems or have any questions regarding the TU3-S25, please contact TRENDnet's Technical Support Department. - Page 9 Copyright ©2010. All Rights Reserved. TRENDnet.
