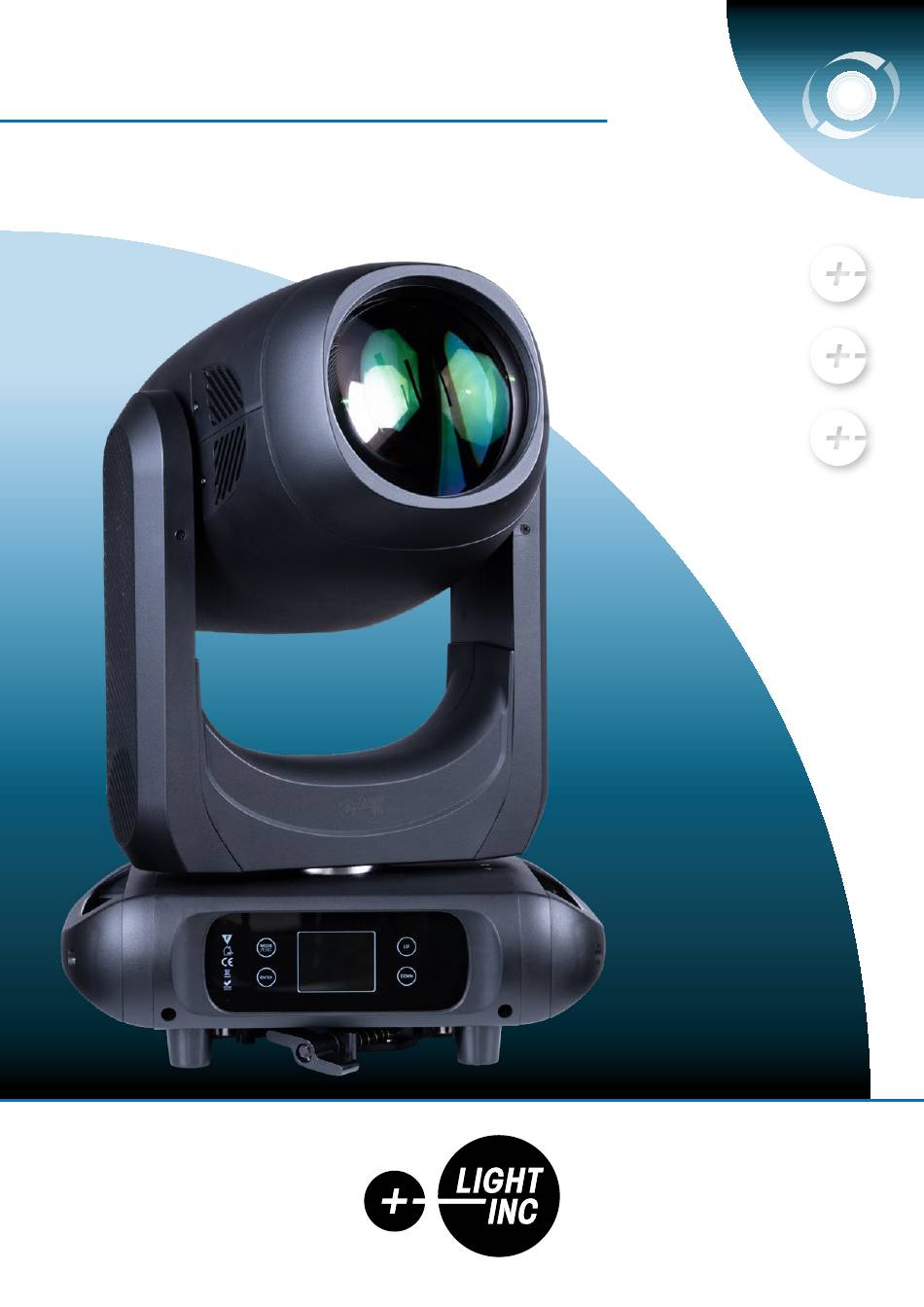

OMNIA HYBRID-350 CMY
MANUAL
MOVING HEAD
COMPACT AND
POWERFUL
VIBRANT CMY
COLOR MIXING
ULTRA FAST
ZOOM OPTIC
www.light-inc.nl
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OMNIA HYBRID-350 CMY and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT INC OMNIA HYBRID-350 CMY

Summary of Contents for LIGHT INC OMNIA HYBRID-350 CMY

  • Page 1 MOVING HEAD OMNIA HYBRID-350 CMY MANUAL COMPACT AND POWERFUL VIBRANT CMY COLOR MIXING ULTRA FAST ZOOM OPTIC www.light-inc.nl...

  • Page 2: Table Of Contents

    CONTENTS PAGE 1. Safety Information 2. Technical Information 3. Photometric 4. Display 5. Menu 6. Wiring Chart 7. DMX Chart 8. Error Messages 9. Cleaning and Maintenance 10. Notes...

  • Page 3: Safety Information

    THANK YOU FOR PURCHASING OUR PRODUCTS Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the outer and inner packaging for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact.

  • Page 4: Technical Information

    2. TECHNICAL INFORMATION POWER COLORS Voltage: AC100~240v,50/60Hz 1 color wheel with 8 colors + white Source: 350W white LED • Interchangeable, indexable, bidirectional infinite Power consumption: 420W color rotation effect 7200K • CMY color mixing Life: • >20,000H Linear CTO (3200K - 7200K) MOVEMENT Pan movement: 540°...

  • Page 5: Dimensions And Weight

    FEATURES DISPLAY DMX channels: 25/36CH 2.8 inch LCD display with English/Chinese menu Prism: 5 facet circular prism + Auto lock and display flip 6 facet linear prism CONTROL Rotates in both directions at variable speed DMX, Auto, Manual Motorized Focus Motorized zoom: DIMENSIONS AND WEIGHT 3°- 48°...

  • Page 6: Photometric

    3. PHOTOMETRIC...

  • Page 7: Display

    4. DISPLAY Shows the various menu options and selected functions. Button: ENTER Choose the selected function DOWN Move down in the menu MENU To enter into, or leave the menu To go back or move up in the menu ETHERNET: Transfers fixture’s information to a main controller.
  • Page 8 Magenta 000 - 255 Yellow 000 - 255 000 - 255 Rot. Gobo wheel 000 - 255 Gobo Rotation 000 - 255 Fix Gobo Wheel 000 - 255 Mode Manual Control Prism 1 000 - 255 Prism Rot 1 000 - 255 Prism 2 000 - 255 Prism Rot 2...
  • Page 9 Tilt Colour Wheel Cyan Magenta Yellow Rot. Gobo wheel Calibrate Password / 8 Gobo Rot. Fix Color wheel Zoom Focus Prism Prism Rot. Prism Prism Rot. Frost Menu Pan / Tilt Motor Reset Color Gobo Other Reset Default Chinese Language English User Time Password...

  • Page 10: Wiring Chart

    OMNIA HYBRID-350 CMY DMX ADDRESS SETTING All OMNIA HYBRID-350 CMY fixtures must have a DMX start address correctly set when using a DMX signal to control them. The DMX start address is the channel from which the OMNIA HYBRID-350 CMY “listens” to the digital control information sent by the DMX controller.

  • Page 11: Dmx Chart

    7. DMX CHART Please refer to below configurations to control the fixtures Attention: 1. The unit will maintain the last condition until reset if you cut off the DMX signal. 2. For the channel function, keep the value for about 5 seconds then the corresponding function will take into effect.
  • Page 12 DMX Mode Value Function 25CH 36CH 56-61 Yellow/Green 62-67 Green 68-73 Green/Orange 74-79 Orange 80-85 Orange/Light blue 86-91 Light blue 92-97 Light blue/Magenta 98-103 Magenta 104-109 Magenta/Blue 110-115 Blue 116-121 Blue/Open 122-127 Open 128-189 Forwards rainbow effect from fast to slow 190-193 No rotation 194-255...
  • Page 13 DMX Mode Value Function 25CH 36CH 73-85 Rot. gobo 6 86-98 Rot. gobo 7 99-111 Gobo 1 shake slow to fast 112-124 Gobo 2 shake slow to fast 125-137 Gobo 3 shake slow to fast 138-150 Gobo 4 shake slow to fast 151-163 Gobo 5 shake slow to fast 164-176...
  • Page 14 DMX Mode Value Function 19CH 25CH Prism 1 0-127 Open 128-255 Prism Rotating prism 1 index, rotating prism rotation 0-127 Prism indexing 128-189 Forwards prism rotation from fast to slow 190-193 No rotation 194-255 Backwards prism rotation from slow to fast Rotating prism 1 indexing Fine 0-255 Fine indexing...

  • Page 15: Error Messages

    8. ERROR MESSAGES When you turn on your OMNIA HYBRID-350 CMY, it will first perform an automatic reset. The display may show “Err channel is XX” indicating there is a problem with one or more of the channels. “XX”represents channel 1, 2, 3, 4, 5 or 6, which contain the testing sensor for positioning.

  • Page 16: Cleaning And Maintenance

    Rot_Gobo wheel Er (Rot_Gobo1wheel - error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the steppermotor is defective (or its driving IC on the main PCB). The Rot_Gobo1 - movement is not located in the default position after the reset. Fix_Gobo wheel Er (Fix_Gobowheel - error) This message will appear after the reset of the fixture if the head’s magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the steppermotor is defective (or its driving IC on the...
  • Page 18 ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE BSL B.V. SPAARPOT 19 | 5667 KV GELDROP | THE NETHERLANDS | +31 (0)40 750 24 95 WWW.BSL-LIGHTING.COM | WWW.LIGHT-INC.EU...
