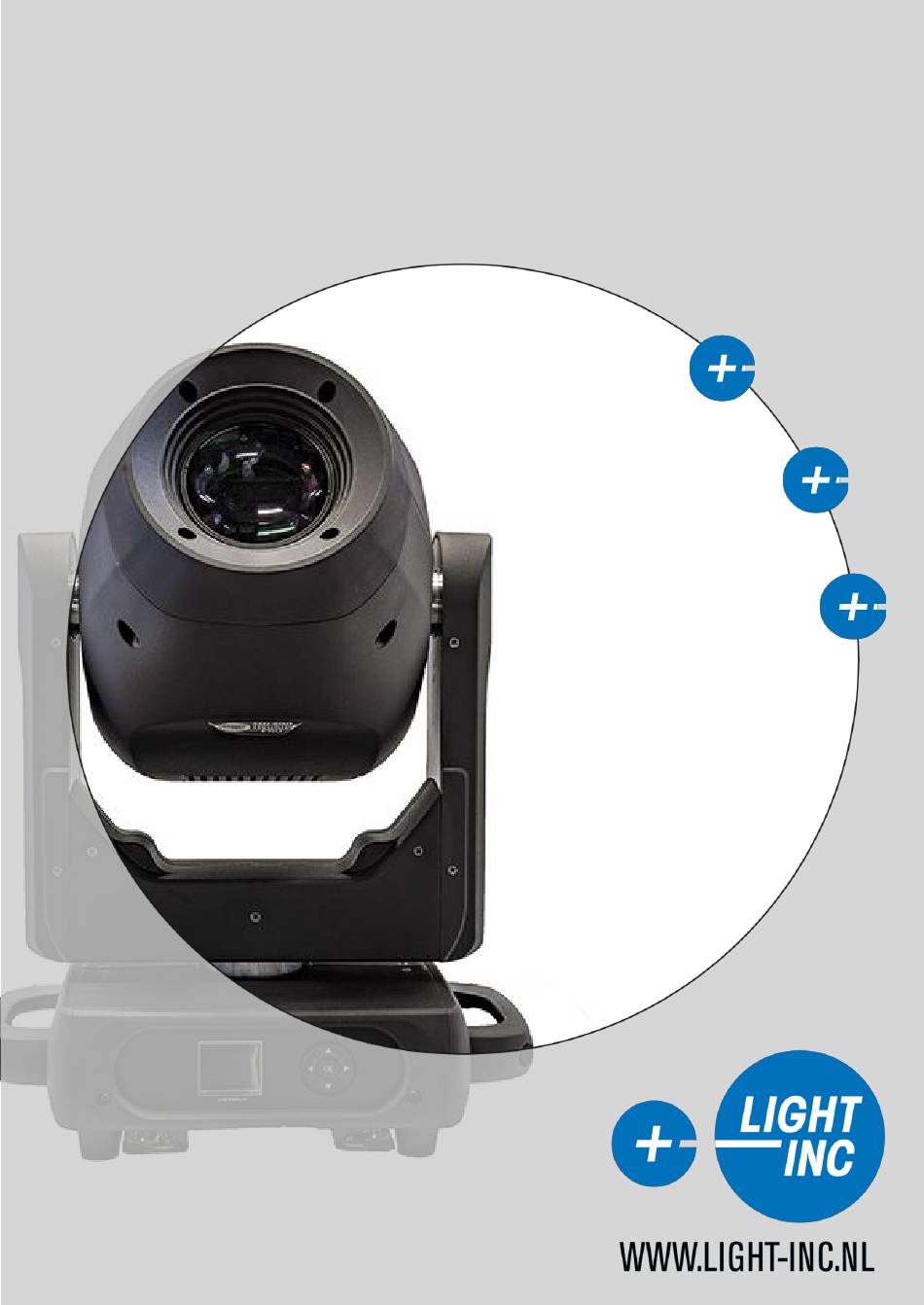

- Page 1 MANUAL MH-200 HYBRID PRO MKII HIGHLY EFFICIENT LED DOUBLE PRISM IRIS & FROST...
-
Page 2: Safety Information
THANK YOU FOR PURCHASING OUR PRODUCTS Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the outer and inner packaging for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. - Page 3 SETTING UP Power Supply: Before plugging in your unit, be sure the voltage in your area matches the required voltage for your fixture. The unit has auto power supply and is workable in 90-250V/50~60Hz. Connection to the mains: For protection from electric shock, the fixture must be earthed. Install a suitable plug on the power cord, note that the cores in the power cord are colored according to the following table.
- Page 4 LCD display operation: Address 001-512 Revl Show Reve Natu Chinese Language English 01MIN 05MIN Backlight Display 08MIN Ligh 01MIN 05MIN MenuBack 08MIN BackFlah Open Return Open X Reverse Open Y Reverse XY Setup XY Speed Norm X Angle Open XY Fback Return Open Shortout...
- Page 5 WorkHour 0001 Times 0001 Infosee LampTemp Version HM02 Sparetim Most Sparecut Most Return Channel 000-255 Channel 01 000-255 Control Channel 02 Tilt 000-255 Channel 03 Fixed-Gobo 000-255 Return Rot-Gobo 000-255 Factory Color 000-255 Defaults Focus 000-255 Redress Zoom 000-255 Built-in Dimmer 000-255 Prism 1...
-
Page 6: Dmx Chart
DMX CHART Standard Reduced Mode DMX Value Function Mode 0～255 Pan 0～540 0～255 Pan Fine 16bit 0～255 Tilt 0～230 0～255 Tilt Fine 16bit 0～255 Pan/Tilt Speed Fast-Slow 0～255 Dimmer Strobe Open 3～103 Strobe slow-fast 104～107 Open 108～207 Pulse Strobe 1 Slow to Fast 208～212 Open... - Page 7 Rotation Gobo Wheel 0～7 Open 8～15 Gobo 1 16～23 Gobo 2 24～31 Gobo 3 32～39 Gobo 4 40～47 Gobo 5 48～55 Gobo 6 56～63 Gobo 7 64～70 Gobo 7 shake Fast - slow 71～77 Gobo 6 shake Fast - slow 78～84 Gobo 5 shake Fast - slow...
-
Page 8: Rigging The Fixture
RIGGING THE FIXTURE Caution: • Fixture may cause severe damage when falling down. If you have doubts concerning the safety of a possible installation, do not install the moving head. • Before rigging make sure that the installation area can hold a minimum point load of 10 times the fixtures weight. -
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS Electrical LCD operation • • Power supply: Electronic auto-ranging Built-in demo sequences • • Input voltage range: 90-250V, 50/60Hz Silent cooling fans • • Fuse: 5 A@220V Strong three-phase motors • • Power consumption: 300W@230V Stand-alone operation • Supported protocols: DMX512 •... - Page 10 ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE 19 | 5667 KV GELDROP BSL B SPAARPOT THE NETHERLANDS +31 (0)40 750 24 95 LIGHTING LIGHT...
