LIGHT INC ERA BEAM-150 LED Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ERA BEAM-150 LED
MANUAL
ENDLESS TILT
DUAL OVERLAPPING
PRISM
LINEAR FROST
www.light-inc.nl
MOVING HEAD

Advertisement

loading
Need help?

Need help?

Do you have a question about the ERA BEAM-150 LED and is the answer not in the manual?

Questions and answers

Related Manuals for LIGHT INC ERA BEAM-150 LED

Summary of Contents for LIGHT INC ERA BEAM-150 LED

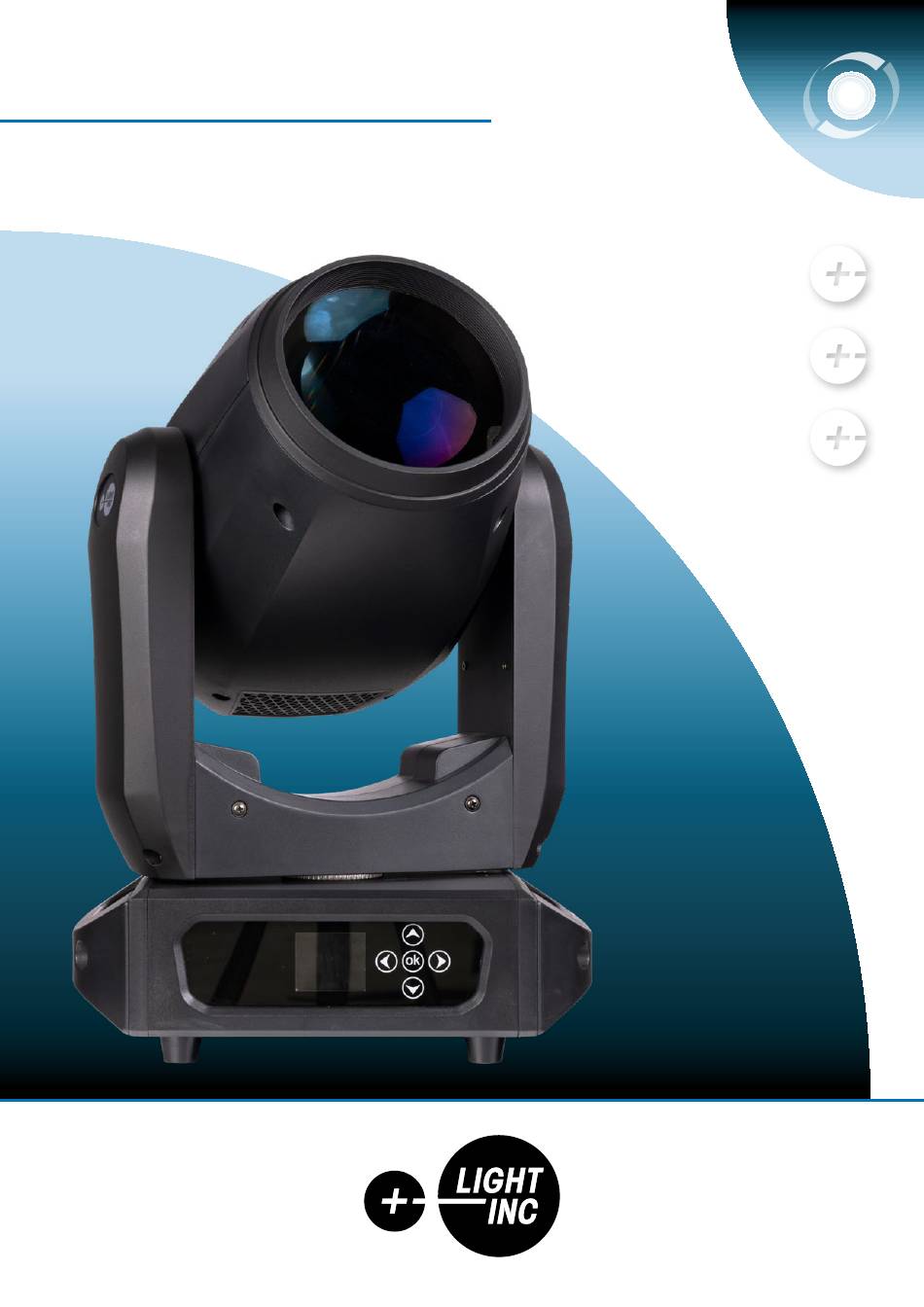

  • Page 1 MOVING HEAD ERA BEAM-150 LED MANUAL ENDLESS TILT DUAL OVERLAPPING PRISM LINEAR FROST www.light-inc.nl...
  • Page 2 THANK YOU FOR PURCHASING OUR PRODUCTS Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the outer and inner packaging for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact.
  • Page 3 2. INSTALLATION A fixture can be placed on the stage floor directly, or mounted on a truss at any direction without impacting its performance. Please use a safety cord that can support 10 times the weight of the fixture while mounting it on the truss.
  • Page 4 DMX terminator In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last fixture in the chain.
  • Page 5 1. Display reverse direction: The screen can be flipped if required 2. Language setting: Set the system language, switch between Chinese and English 3. Channel mode: Set the channel mode, the number of menu options indicates the number of channels 4.
  • Page 6 4. OPERATION MENU 1. Address setting, 2. Setting, 3. Info , 4. Manual, 5. Status, 6. Dmxlevel, 7. Reset, 8. Exitmenu Level 1 Level 2 Level 3 Level 4 Content Address Setting 1 - 512 Dis_Reve Natu/Rev1 Language Engh/Chin DMX Mode 13CH/16CH RunMode DMX/Musc/Auto...
  • Page 7 Level 1 Level 2 Level 3 Level 4 Content Address Setting 1 - 512 XY DMX Natu/Err Effect Natu/Err Focus Hall Natu/Err Color Hall Natu/Err Gobo Hall Natu/Err STATUS Current status of lamps and lanterns Y Hall Natu/Err X FB Natu/Err Y FB Natu/Err...
  • Page 8 Level 1 Level 2 Level 3 Level 4 Content Address Setting 1 - 512 0-255 PanFine 0-255 Tilt 0-255 TiltFine 0-255 T-nonpolar 0-255 XY SP 0-255 Strobe 0-255 Dimmer 0-255 DMX LEVEL Color 0-255 Current DMX channel value StaticGB 0-255 Prism 0-255 PrismRot1...
  • Page 9 DMX Channel Value Function Short mode Standard Mode Strobe Close 4-103 Strobe: Slow->Fast 104-107 Open 108-207 Pulse strobe: Slow->Fast 208-212 Open 213-225 Strobe at random: slow speed 226-238 Strobe at random: medium speed 239-251 Strobe at random: fast speed 252-255 Open Dimmer 0-255...
  • Page 10 DMX Channel Value Function Short mode Standard Mode Gobo Open Gobo1 8-10 Gobo2 11-13 Gobo3 14-16 Gobo4 17-19 Gobo5 20-22 Gobo6 23-25 Gobo7 26-28 Gobo8 29-31 Gobo9 32-34 Gobo10 35-37 Gobo11 38-40 Gobo12 41-43 Gobo13 44-54 Open 55-62 Shake from slow to fast: Gobo 1 63-70 Shake from slow to fast: Gobo 2 71-78...
  • Page 11 DMX Channel Value Function Short mode Standard Mode Frost 0-63 Stop 64-255 0-100% Focus 0-255 0-100% Function To achieve the following effect, push the DMX value to the appropriate position and rest for at least 4 seconds 0-210 211-225 Effect reset 226-240 Pan/Tilt rest 241-255...
  • Page 12 7. APPEARANCE Head Base 8. TECHNICAL DATA Electric parameters The specifications of the light source Input voltage: 100v~240v ac, 50/60hz Light source: 150W white led engine Input power: Color temperature: 350w@240v 7800k±200k Power factor: Rated life: pf>0.90 Color Fixed gobo wheel 1 white light + 14 colors.
  • Page 13 Prism/frost Control • 1 8-facet prism and 1 8+16+24-facet prism • International standard dmx 512 protocol • bi-directional rotation from slow to fast • 3-pin interface • both can be overlapped • 13 channels in short mode and 16 channels in standard mode Focus •...
  • Page 14 9. TROUBLE SHOOTING Problem Action ► Check the fuse on the power socket. The fixture doesn’t switch on ► Check the lamp. ► Make sure that the fixture’s start address is right The lamp is on but the fixture doesn’t respond to the controller ►...
