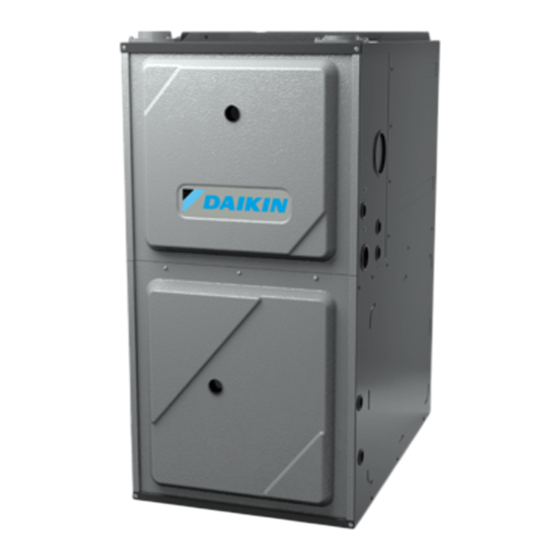

Daikin DR96TN Manual

■
Standard Features
• Heavy-duty stainless-steel tubular heat exchanger
• Stainless-steel secondary heat exchanger
• Two-stage gas valve provides quiet,
economical heating
• Durable Silicon Nitride igniter
• Quiet two-speed induced draft blower
• Self-diagnostic control board with constant
memory fault history output to a 3-digit
7 segment LED display and push buttons
• Energy-efficient multi-speed (9-speed tap)
ECM blower motor
• Multiple continuous fan speed options offer
quiet air circulation
• Color-coded low-voltage terminals with provisions
for electronic air cleaner and humidifier
• AHRI Certified; ETL Listed
• All models comply with CA Low NOx standards
• Can not be installed in California's South Coast
Air Quality Management District (SCAQMD)
and San Joaquin Valley Air Pollution Control
District (SJVAPCD).
SS-DR96TN_DD96TN-R32
DR96TN / DD96TN
■
Cabinet Features
• Designed for multi-position installation -
DR96TN: upflow, horizontal left or right
DD96TN: downflow, horizontal left or right
• Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side
venting - DR96TN/upflow models only
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return
with easy-cut tabs for effortless removal
in bottom air-inlet applications
* Complete warranty details available from your local dealer or at www.daikincomfort.com. To receive
the Lifetime Heat Exchanger Limited Warranty (good for as long as you own your home), the 12-Year
Unit Replacement Limited Warranty and the 12-Year Parts Limited Warranty, online registration must be
completed within 60 days of installation. Additional requirements for annual maintenance are required for
the Unit Replacement Limited Warranty. Online registration and some of the additional requirements are
not required in California or Québec. The duration of warranty coverages in Texas differs in some cases.
www.daikincomfort.com
Two-Stage, 9-Speed
ECM Gas Furnace
Up to 96% AFUE
Heating Input: 30,000 -120,000 BTU/h
■
Contents
Nomenclature ........................................ 2
Product Specifications ........................... 3
Dimensions ............................................ 5
Airflow Specifications ............................ 7
- DR96TN ............................................. 7
- DD96TN ........................................... 11
Wiring Diagram .................................... 14
Accessories .......................................... 15
) ≤ 2%
Leak
05/24
