Quick Installation Guide
TU2-HDMI
1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TU2-HDMI and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TU2-HDMI

Summary of Contents for TRENDnet TU2-HDMI

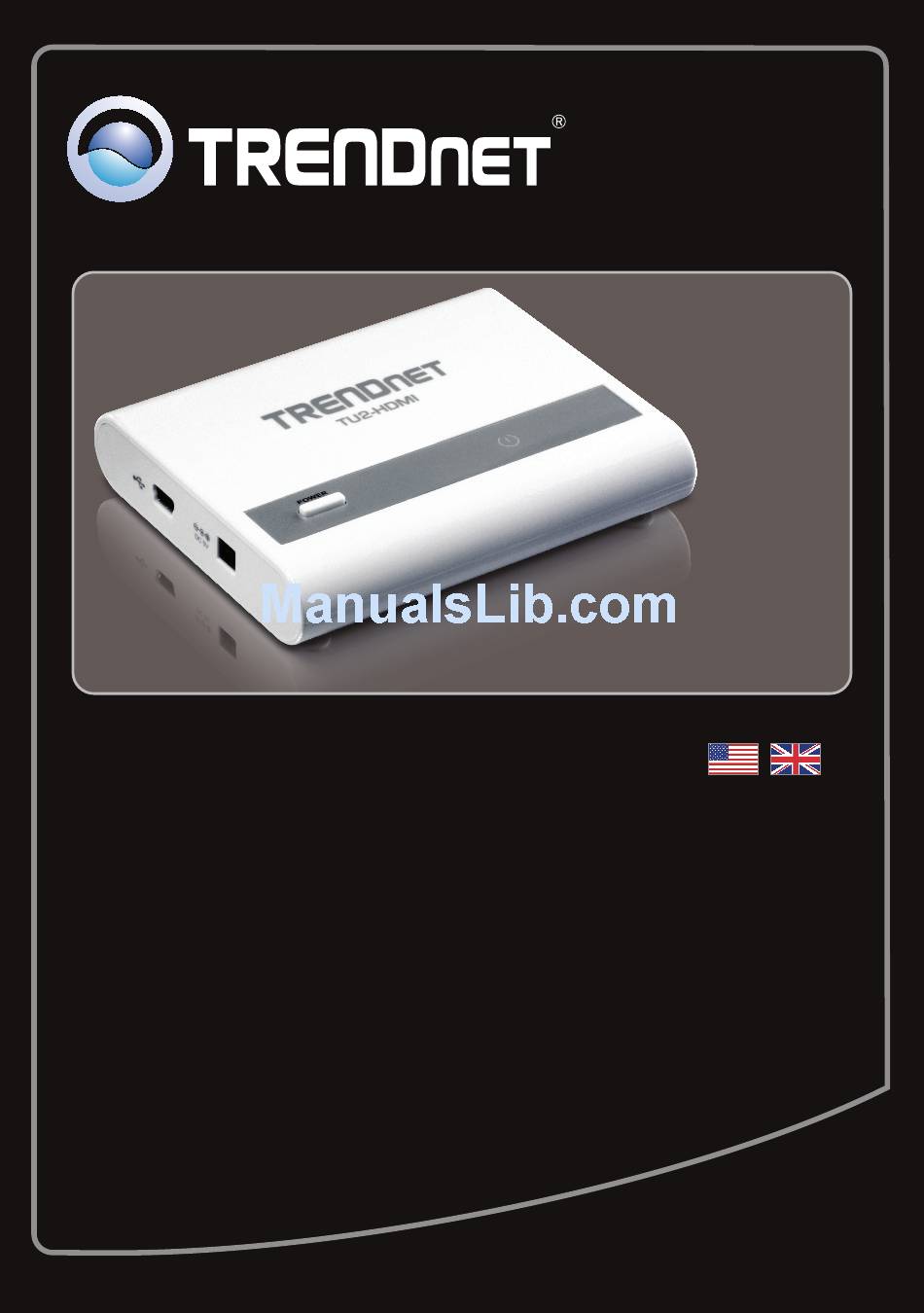

  • Page 1 Quick Installation Guide TU2-HDMI 1.01...

  • Page 2: Table Of Contents

    Table of Contents English 1. Before You Start 2. How to Install 3. Configure the Display Settings Troubleshooting Version 02.16.2011...

  • Page 3: English

    1. Before You Start Package Contents Ÿ TU2-HDMI Ÿ Multi-Language Quick Installation Guide Ÿ CD-ROM (Utility and Driver) Ÿ 1 x USB cable (45 cm / 18 in.) System Requirements Ÿ Computer with an available USB 1.1 or 2.0 port Ÿ...

  • Page 4: How To Install

    2. How to Install Note: DO NOT connect the TU2-HDMI to your computer until instructed to do so. 1. Insert the Utility and Driver CD-ROM into your computer's CD-ROM drive. 2. Click Autorun.exe (Windows 7/Vista only). 3. Click Install Utility & Driver. 4.
  • Page 5 6. Connect the Type A end of the USB cable to an available USB port on your computer. 7. The computer will automatically detect and install the drivers. 8. Click Restart Now (Windows Vista only). 9. Connect one end of a HDMI cable to the TU2-HDMI's HDMI port.

  • Page 6: Configure The Display Settings

    3. Configure the Display Settings Extended Desktop Extended View (Image divided over multiple TVs) USB to HDMI Monitor Extender (TU2-HDMI) Windows 7 1. Hold down the Windows key and press P on your keyboard. Press P until Extend is selected. Then let go of the Windows Key.
  • Page 7 Mirror Mirror View (Image repeated over multiple TVs) USB to HDMI Monitor Extender (TU2-HDMI) Windows 7 1. Hold down the Windows key and press P on your keyboard. Press P until Duplicate is selected. Then let go of the Windows Key. Windows Vista/XP 1.

  • Page 8: Troubleshooting

    Plug-and-Play compliant and hot-pluggable 3. How many TU2-HDMIs can I connect to my computer? You can connect up to 6 TU2-HDMIs to your computer. If you still encounter problems or have any questions regarding the TU2-HDMI, please contact TRENDnet's Technical Support Department.
  • Page 10 Copyright ©2011, All Rights Reserved. TRENDnet.
