- Page 1 TK-EX2 CAT5 KVM Extention Kit User’s Guide Kit d'extension CAT5 pour KVM Guide de l'utilisateur CAT5 KVM Extention Kit Bedienungsanleitung Equipo de Extensión KVM CAT5 kit de amplificador de vídeo Version 12.21.06 Copyright ©200 . 6 All Rights Reserved. TRENDware International, Inc.
-
Page 2: Table Of Contents
Table of Contents English ... 1. Prepare for Installation ... 2. Introduction ... 3. Installation ... Specifications ... Troubleshooting ... -
Page 3: English

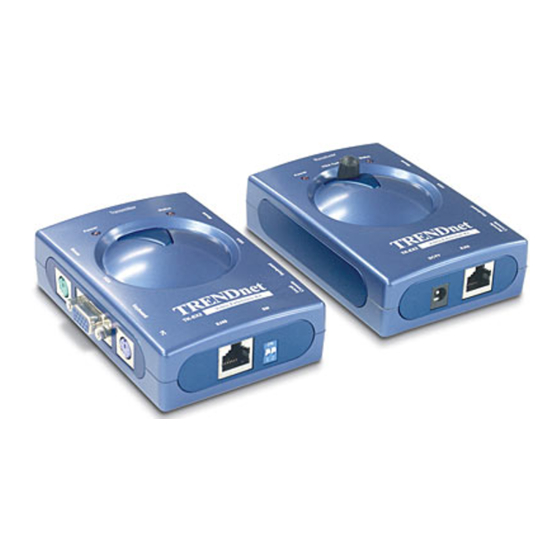

Please make sure you have everything in the box: (receiver and transmitter) 3 Head KVM cable The TK-EX2 Video Extention Kit is compatible with virtually all computers and operating systems. You only need to have one monitor, one PS/2 keyboard, and one PS/2 mouse. -
Page 4: Introduction
Microsoft Intellimouse, Microsoft Optical Mouse, and Logitech Net Mouse. Software Support The TK-EX2 Video Extention Kit does not require any drivers or software. It is compatible with the following operating systems: Windows 98SE/ME/2000/XP, Linux, and DOS. Plug-N-Play and Hot-Pluggable The TK-EX2 Video Extention Kit connects to your computers via the PS/2 interface for convenient Plug-and-Play functionality and hot-pluggable. -
Page 5: Installation
KVM cable. If you are connecting the TK-EX2 Transmitter to a PC, connect the PC port of the TK-EX2 Transmitter to the keyboard, mouse, and video ports with a KVM cable. If you are connecting the TK-EX2 Transmitter to a KVM switch, connect the PC port of the TK-EX2 Transmitter to the Console port of the KVM switch. - Page 6 English...
-
Page 7: Specifications
Specifications Computer Connections: KVM Cable: Console Port Connectors: PC Port Connectors: VGA Resolution: Power Type: Dimensions: Weight: Operating Temperature: Storage Temperature: Humidity: Certifications: 1 set of 60cm (2ft) KVM Cable. 1 x PS/2 keyboard 6-pin mini din female 1 x PS/2 mouse 6-pin mini din female 1 x VGA HDDB15 (15-pin) female 1 x PS/2 keyboard 6-pin mini din female 1 x PS/2 mouse 6-pin mini din female... -
Page 8: Troubleshooting
Yes, you can connect or disconnect the PS/2 cables while the computers are turned on because the PS/2 interface is Plug-and-Play and Hot-Pluggable. Can I still perform Hot-Key functions if the TK-EX2 is used on a KVM switch? Yes, you can still perform Hot-Key functions. - Page 9 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 10 Product Warranty Registration Please take a moment to register your product online. Go to TRENDware’s website at http://www.TRENDNET.com TRENDnet Technical Support US Canada Toll Free Telephone: 1(866) 845-3673 24/7 Tech Support Europe (Germany France Italy Spain Switzerland UK) Toll Free Telephone: +00800 60 76 76 67...
