Summary of Contents for Futech TM4010

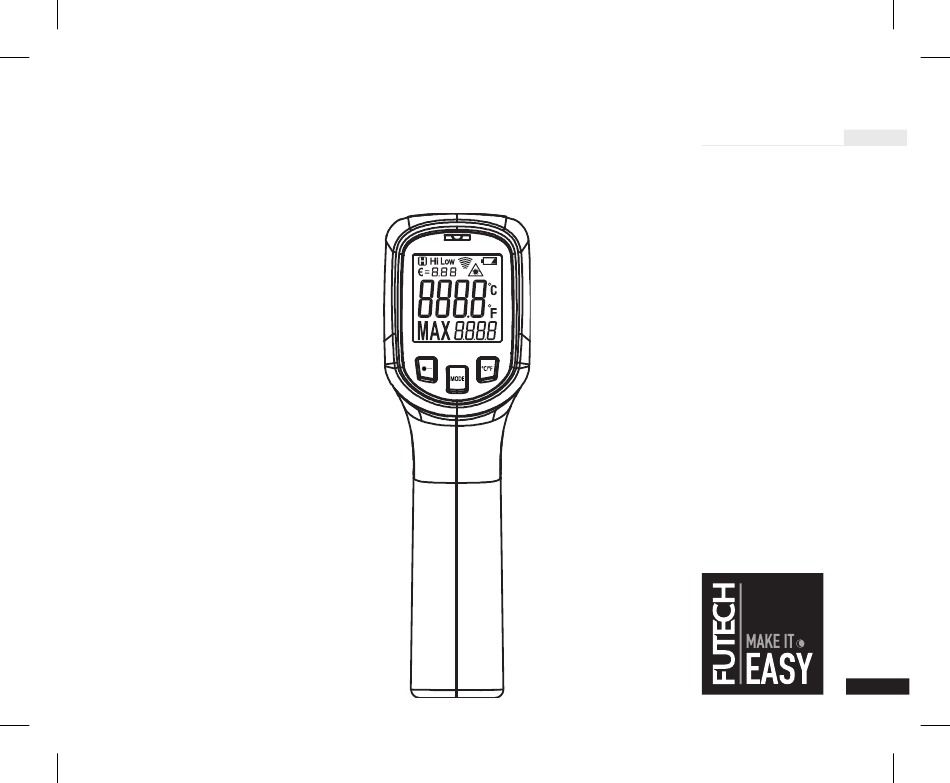

- Page 1 USER EN ENGLISH MANUAL Manual in your TM4010 INFRARED THERMOMETER language? Check the back cover...
- Page 2 OVERVIEW DISPLAY Data hold DEVICE High limit alarm 01 Alarm indicator Low limit alarm 02 LCD screen Measurement indicator 03 Laser control / Value down Laser symbol “On” 04 Mode button Low battery indicator 05 Celcius-Fahrenheit / Value up °C (Celsius) temperature unit 06 Infrared sensor °F (Fahrenheit) temperature unit 07 Laser light...
-
Page 3: First Time Usage
· Gently wipe surface with a moist cotton cloth. SAFETY Cleaning the case: Please read the safety instructions provided as separate booklet · Use water (soap optional) on a damp sponge or cloth. with the device. While the product is in operation, be careful not to expose your BATTERY eyes to the emitting laser beam. -
Page 4: Field Of View
FIELD OF VIEW NON-CONTACT TEMPERATURE The device’s field of view is 12:1 (Ex. If the thermometer is 12 · Aim the thermometer to the surface of the object. mm from the surface (spot), the diameter of the target must be ·... -
Page 5: Changing Temperature Unit
· Press value up [05] / value down button [03] to set the alarm The thermometer is set to an emissivity of 0.95 by default. to desired high temperature value. While measuring, set the emissivity on the thermometer to · Hold value up [05] / value down button [03] to quickly match the object being measured. - Page 6 EMISSIVITY TABLE COPPER, ELECTRICAL TERMINAL BLOCKS NICKEL, OXIDIZED 0.2 - 0.5 COPPER, OXIDIZED 0.4 - 0.8 PAINT ADHESIVE TAPE 0.96 FERRO-NICKEL, ABRASIVE BLASTING 0.3 - 0.6 PAPER 0.70 - 0.99 ALUMINIUM PLATE 0.09 FERRO-NICKEL, ELECTRO POLISHING 0.15 PAPER, WHITE 0.68 ALUMINUM, A3003 ALLOY (OXIDIZED) FERRO-NICKEL, OXIDIZED 0.7 - 0.95...
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL TM4010 DECLARATION OF CONFORMITY Measurement range −50°C ~ 400°C (−58°F ~ 757 °F) Futech (Belgium) declares under its own responsibility that this device: Emissivity 0.1 - 1.0 - TM4010 INFRARED THERMOMETER D:S Ratio 12:1 Spectral Response 8µ to 14µ... - Page 8 USER MANUAL other languages: DANSK ITALIANO DEUTSCH NEDERLANDS ESPAÑOL NORSK EESTI KEEL PORTUGUÊS SUOMEN KIELI SLOVENŠČINA FRANÇAIS SVENSKA ÍSLENSKA Facebook @futechtools LinkedIn futechtools World Wide Web futech-easy.com YouTube @futechtools...
