Futech TEMPPOINTER 9 Quick Start Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

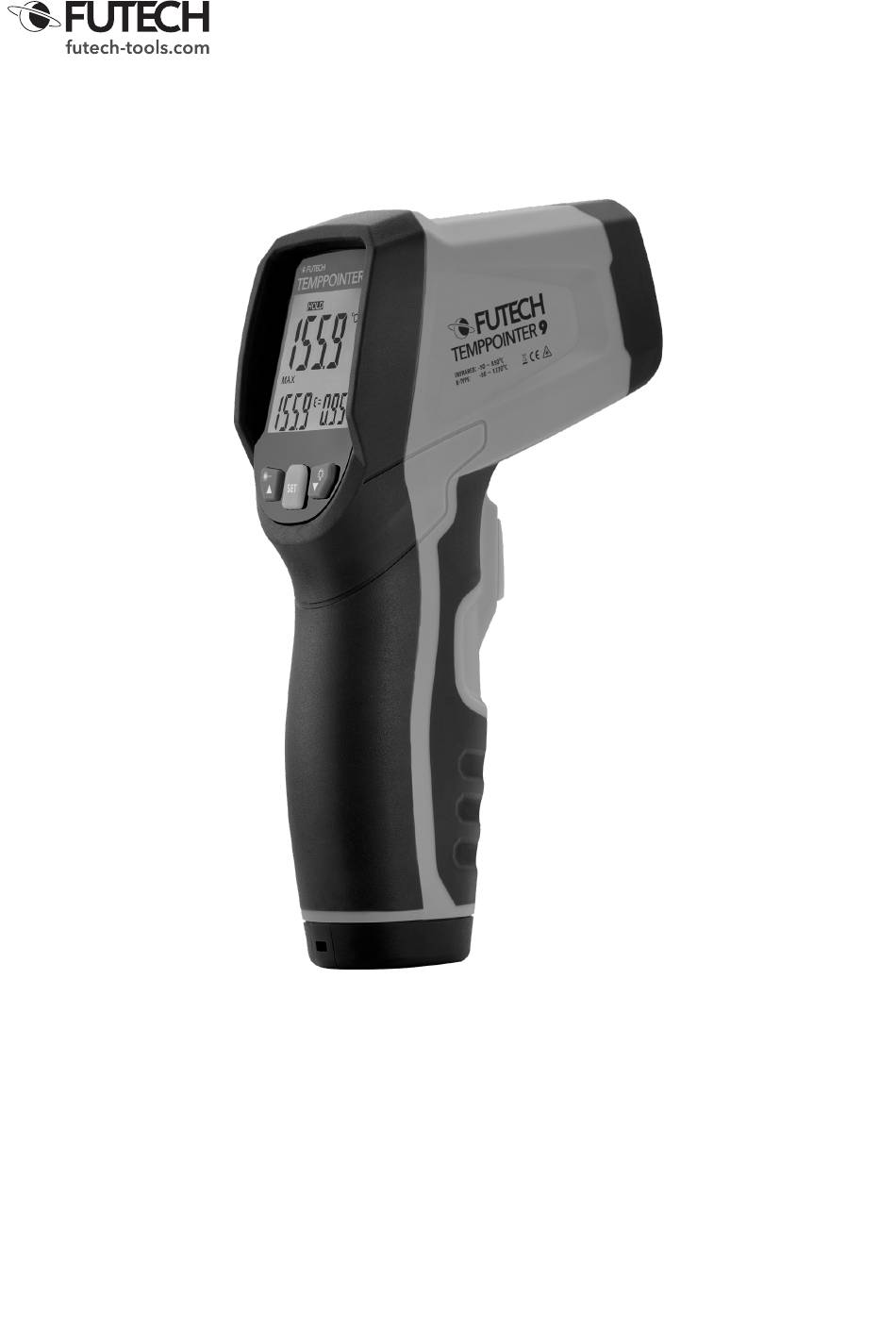

TEMPPOINTER 9
infrared thermometer
Thank you for purchasing the Futech Temppointer 9. This device is designed for
non-contact (infrared) temperature measurements at the touch of a button. The
build in laser pointer increases target accuracy while the backlight LCD and handy
push-buttons combine for convenient, ergonomic operations.
The Temppointer 9 can be used to measure the temperature of objects' surface
that is improper to be measured by traditional (contact) thermometer, such as
moving objects, the surface with electricity current or objects which are uneasy to
be touched.
Proper use and care of this meter will provide years of reliable service.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEMPPOINTER 9 and is the answer not in the manual?

Questions and answers

Related Manuals for Futech TEMPPOINTER 9

Summary of Contents for Futech TEMPPOINTER 9

  • Page 1 TEMPPOINTER 9 infrared thermometer Thank you for purchasing the Futech Temppointer 9. This device is designed for non-contact (infrared) temperature measurements at the touch of a button. The build in laser pointer increases target accuracy while the backlight LCD and handy push-buttons combine for convenient, ergonomic operations.
  • Page 2 DESCRIPTION Laser hole Infrared (IR) sensor LCD Display Laser button / Up button (for EMS, High Alarm, Low Alarm) SET button (Settings) Backlight / Down button (for EMS, High Alarm, Low Alarm) TYPE-K input Built-in screw for tripod 1/4” Lanyard hole 10.

  • Page 3: Measurement Operation

    As the distance (D) from the object increases, the spot size (S) of the area meas- 192 mm ured by the Temppointer 9 becomes larger. The relationship between distance and spot size for this unit is 16:1. This means Ø12 mm that when measuring at a distance of 16cm of the object, the measuring surface Ø24 mm...
  • Page 4 · As long as the HOLD symbol (B) is visible on the screen, pushing the Backlight / Down button (6) will switch on or off the backlight of the LCD display. · As long as the HOLD symbol (B) is visible on the screen, pushing the SET button (5) will show you MAX / MIN / AVG / DIF values during the last measurement (after pushing the measurement trigger (10)).

  • Page 5: Battery Replacement

    (4) and/or the down button (6). High Alarm Level (H.AL) On/Off You can set a High Alarm Level if you want the Temppointer 9 attends you when the measured temperature is above the H.AL temperature you’ve set.

  • Page 6: Specifications

    Relative humidity 10%~90%RH (operating) <80%RH (storage) Power supply 2x 1,5V AAA batteries Futech is a registered brand of Laseto NV, Belgium. Futech declares that the Temppointer 9 is in conformity with the following standards: · EN61326-1:2013 · EN61326-2-2:2013 following the provisions of Directive: ·...
