Summary of Contents for VisionTrack VT5500-C

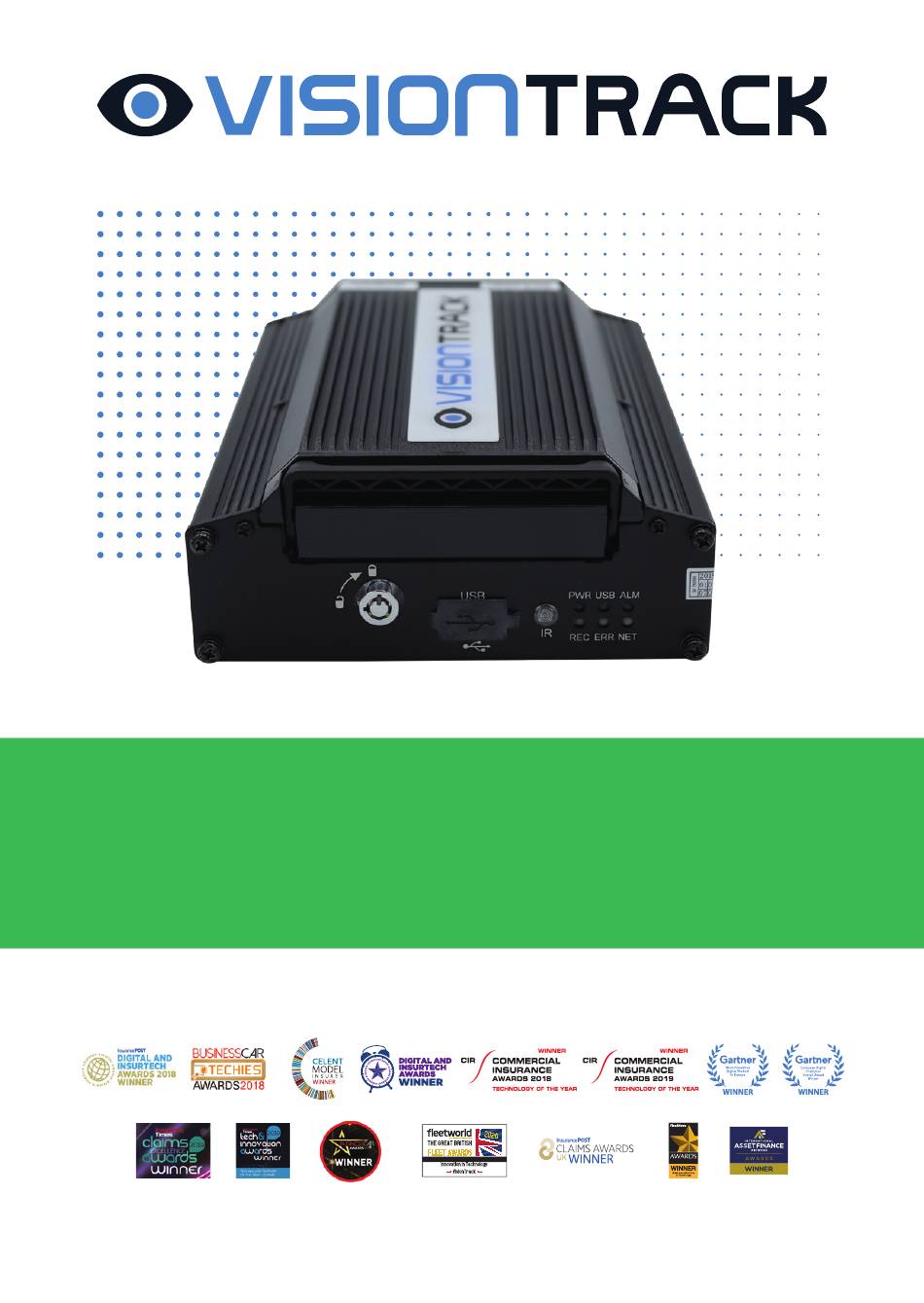

  • Page 1 VT5500-C INSTALLATION GUIDE www.visiontrack.com...
  • Page 2: Table Of Contents

    Table of Contents: Important Information Overview Required Tools What’s in the box VT5500-C Details Pre-Installation Checks VT5500-C Wiring Power Supply Antennas Camera Connections Positioning and Mounting Panic Button Cable Routing Commissioning Notes t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 3: Important Information

    Unauthorised changes or alterations to the equipment or the installation will invalidate certification issued by the Approved Accreditation Bodies and may also affect the vehicle manufacturers warranty. Under no circumstances may any part of the product be installed inside the engine compartment area. t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 4 Important Information: List of do’s and don’t’s when installing a VisionTrack MDVR. Power: All VisionTrack devices MUST be wired to their own power supply and not connected/shared to an existing power pickup point. We recommend that the vehicle power pickup points should be located using the vehicle manufactures instructions. *THIS MEANS YOU CANNOT USE ANOTHER TELEMATICS PROVIDERS POWER SUPPLY OR PICK UP POINTS TO POWER A VISIONTRACK DEVICE.
  • Page 5: Overview

    (MDVR) designed for vehicle surveillance and monitoring, with built-in connectivity, advanced video compression, GPS positioning technology for live tracking and 4G for wireless data upload. The MDVR fully integrates with VisionTrack’s Platform and has as a built-in three-axis G-shock sensor as standard, offering full driver behavior reporting.
  • Page 6: Engineering Tools

    Cable Ties Drill Torch Plastic Cutter Wire Cutter Wire Stripper Solder Wire Crimping Connectors Soldering Iron Crimping Tool Electrical Tape Multimeter Amalgamating Tape Round File Plastic Lever Heat Gun (Gas) Heatshrink Reinforced Tape t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 7: What's In The Box

    VT5500-C INSTALLATION GUIDE What’s in the box: VT5500-C Mobile DVR VT5500-C Mounting Arms and Screws VT5500-C 4G/3G Antenna VT5500-C GPS Antenna VT5500-C Power Input VT5500-C Keys VT5500-C Fuses t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 8: Vt5500-C Details

    VT5500-C INSTALLATION GUIDE VT5500-C Details: Front Panel Rear Panel t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 9: Pre-Installation Checks

    VT5500-C INSTALLATION GUIDE Pre-Installation Checks: Please follow these checks before installation is started. Validate that the vehicle presented matches the vehicle details on the VisionTrack Service Portal. Take note of and document any damage to where the camera(s) will be fitted, e.g.
  • Page 10: Vt5500-C Wiring

    VT5500-C INSTALLATION GUIDE VT5500-C Wiring: Connect the cameras to the VT5500-C as follows: Camera Position Port VT-C20-IPC Front VT408-AHD Left Side A/V IN 1 VT408-AHD Right Side A/V IN 2 VT646-AHD Rear A/V IN 3 Rear-facing Camera (VT648-AHD Image) Side-facing Cameras...
  • Page 11: Power Supply

    VT5500-C INSTALLATION GUIDE Power Supply: The power connection for the VT5500-C is simple, it consists of three wires and connections: • Permanent Power (12/24V) • Ignition ACC • Ground NOTE: Always test the wires with multimeter prior to making the connections.
  • Page 12: Antennas

    VT5500-C INSTALLATION GUIDE Antennas: The VT5500-C comes with two stand-alone antennas. One GPS and one 3G/4G GSM. These need to be installed covertly, i.e. behind panels, in the vehicle and connected to the DVR. The GPS antenna must be installed with the adhesive pad facing down.
  • Page 13: Camera Connections

    The rubber sheaths alone are not enough to make the connection waterproof. Amalgamating tape should also be used. This is particularly important for connections that are made outside the vehicle. t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 14: Positioning And Mounting

    NOTE: Ensure the DVR is securely mounted in the vehicle with its front panel, featuring LEDs, oriented towards the direction of travel. This setup allows the internal accelerometer to accurately measure harsh driving events. t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 15: Panic Button

    The VT-PANIC button is connected to the VT5500-C via the Alarm In/Out Cable as shown below. It should be enabled by default but must be checked during the commissioning call.
  • Page 16: Cable Routing

    VT5500-C INSTALLATION GUIDE Cable Routing: When routing the VT5500-CŁand camera cables you must ensure that you do the following: • Secure the cables with cable ties at regular intervals • Avoid blocking or interfering with airbags or moving parts • Follow existing wiring where possible •...
  • Page 17: Commissioning

    Otherwise it will not boot up. Start the engine and wait for 5 minutes and call the VisionTrack technical support team on 888-969-6203, or use commissioning app to commission the device.
  • Page 18: Notes

    VT5500-C INSTALLATION GUIDE Notes: t 888-969-6203 | e Support.US@visiontrack.com | w visiontrack.com/us...
  • Page 19 VT5500-C INSTALLATION GUIDE 111 West Ocean Blvd 4th Floor Long Beach CA 90802 VisionTrack Copyright © 2024 - All Rights Reserved.
