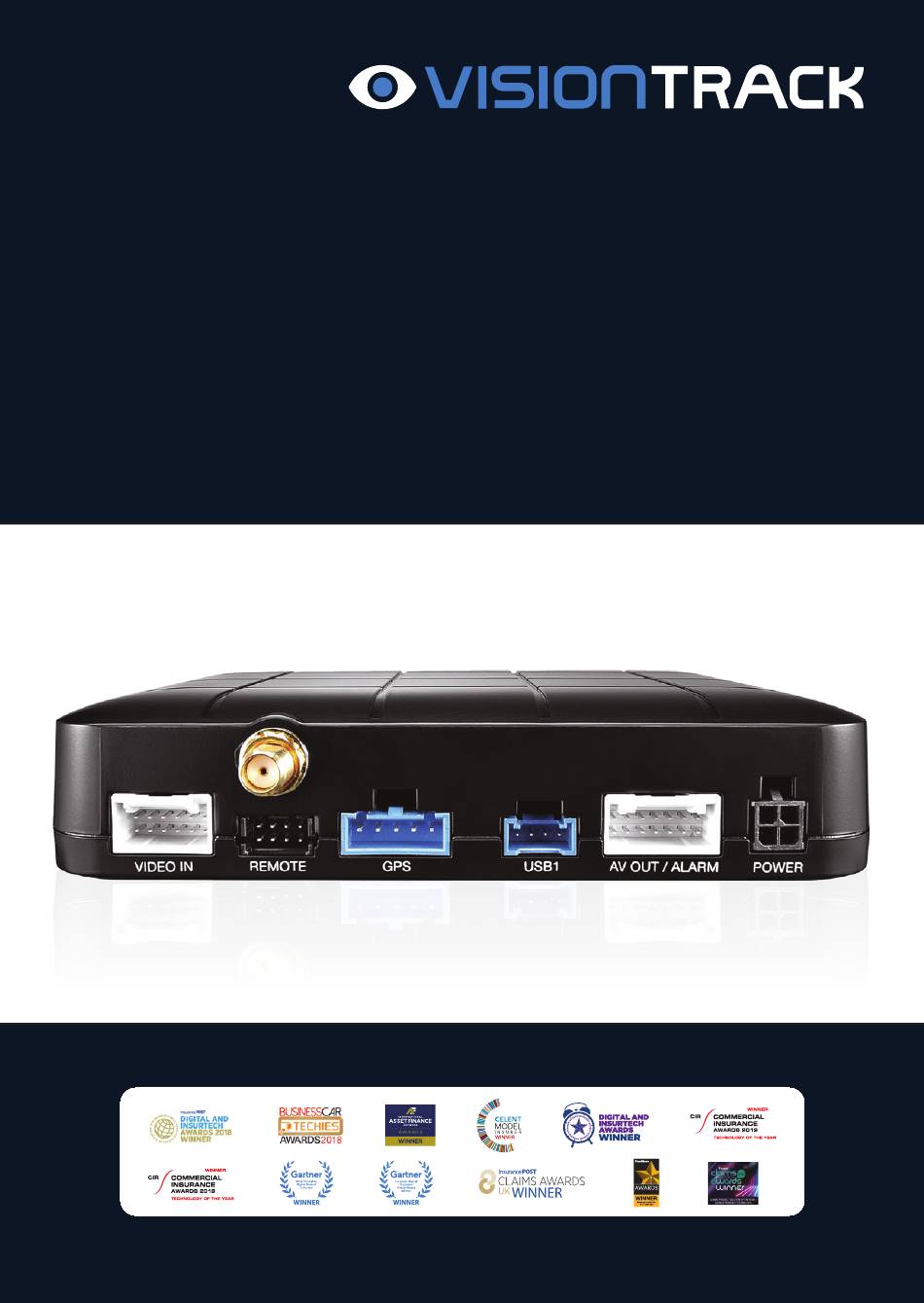

- Page 1 THE NEXT GENERATION OF TELEMATICS AND INTEGRATED CAMERA SOLUTIONS VT4000 INSTALLATION GUIDE THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com...
-
Page 2: Key Features
VT4000 INSTALLATION GUIDE Overview The VT4000 is a 4-channel mobile digital video recorder, providing 1080p full HD video for excellent picture detail and clarity, together with all the benefits of remote or local viewing, recording and playback. Key Features: FORWARD FACING... -
Page 3: Safety Advice
VT4000 INSTALLATION GUIDE Safety advice CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Please make sure you follow the safety advice/instructions given in the user guide. -
Page 4: Gps Reception
VT4000 INSTALLATION GUIDE GPS RECEPTION Activate the product in an area without large buildings to improve GPS reception. The commercial purpose GPS has the average range error of more than 15 meters and the range error could be more than 100 meters due to environmental conditions like buildings, roadside trees etc. -
Page 5: What's In The Box
VT4000 INSTALLATION GUIDE What’s in the box: 1. VT4000 Video Recorder 2. VT-PANIC Button Power Cable GPS Antenna module Audio/Video out cable Camera input cable 3G Antenna User Guide (If not, please go to website) 3M™ Pad (x2) Wire Clips (x5) - Page 6 VT4000 INSTALLATION GUIDE VT4000 Details: Debug port for Front Serial port development SD Memory Card Slot External Microphone input SD Locking Switch USB port Internal Microphone 3G antenna connector Rear & Buzzer Power input Camera input GPS input USB to Serial input Audio/Video output &...
-
Page 7: Installation
VT4000 INSTALLATION GUIDE VT4000 Installation: Park your vehicle on a flat level surface. Turn off the engine before installing the VT4000. Find installation location for VT4000 like in the glove box, under the dash or in the trunk. NOTE: The adhesive will not stick well with dust or oil, etc. Please make sure the surface is clean before applying. - Page 8 WARNING! On installation please leave camera to boot up completely for approximately 5 minutes and call VisionTrack support team on 01246 223 152 to confirm camera install is complete. If you do not do this it will INVALIDATE the warranty.
-
Page 9: Panic Button
VT4000 WIRING GUIDE Panic Button Green LED (Network) Blue LED (Record) Red LED (Warning) PANIC Button M1 button M2 button (G-Sensor Calibration) (Change Camera View) POWER CABLE Black (Ground) Red (Power Battery +) White (Ignition ACC + ) ALARM IN/OUT CABLE... - Page 10 VT4000 WIRING GUIDE LED and Buzzer Specification: 01246 225 745...
- Page 11 VT4000 INSTALLATION GUIDE 01246 225 745...
- Page 12 THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com VT4000 INSTALLATION GUIDE 2 Chapman Way High Brooms Industrial Estate Tunbridge Wells Kent TN2 3EF...
