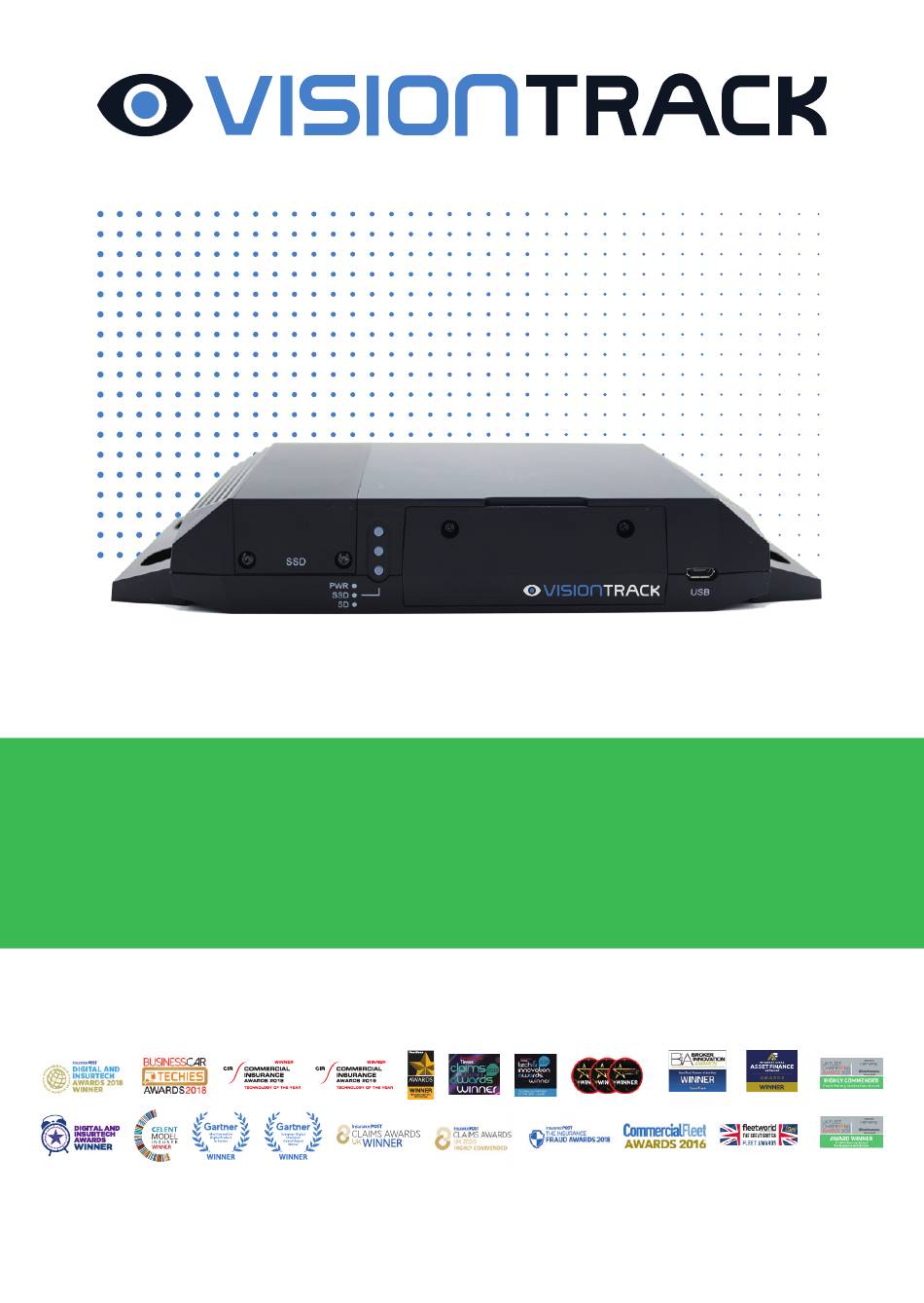

- Page 1 VT4500 INSTALLATION GUIDE THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com...
- Page 2 Approved Accreditation Bodies and may also affect the vehicle manufacturers warranty. Under no circumstances may any part of the product be installed inside the engine compartment area. t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 3 Securing: The MDVR has an internal accelerometer to measure harsh driving events so you MUST ensure that it is firmly secured in the vehicle. MUST also ensure the device is calibrated as part of the commission process. t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
-
Page 4: Key Features
IoT pl form elem ics sof w re Acc r e G-shock sensor F ll lock ble me s res imp c force n mper-proof c se riving s le t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com... -
Page 5: What's In The Box
VT4500 Locking Case S-VT4500 GPS MODULE S-VT4500 4G MIMO ANTENNA Camera Input Cable Monitor Output/Alarm Input Cable Power Cable VT4500 REMOTE CONTROL Cable Clips Screws and Torx Key Preperation Pad t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com... - Page 6 VT4500 INSTALLATION GUIDE VT4500 Details: Micro USB Port Device Status Indicators (LED) SSD Access Cover SIM/SD Card Access Cover Cover Mounting Clips See page 8 t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 7 Park your vehicle on a flat level surface. Turn off the engine before installing the VT4500. Find installation location for VT4500 like in the glove box, under the dash or in the trunk. Use provided Velcro adhesive to secure VT4500 recorder. Velcro can be attached and detached freely.
-
Page 8: Panic Button
Alarm In1, Voltage on/off (3~70V) ALARM_IN2 (Alarm In2, Voltage on/off (3~70V) ALARM_IN3 (Alarm In3, Voltage on/off (3~70V) RPM_IN SPEED_IN Speed ALARM_IN4 Alarm in4, NC/NO ALARM_OUT1A Alarm out GND (x2) Ground t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com... - Page 9 Line the connection up with POWER (shown above) and push until click to secure. S-VT4500 4G MIMO ANTENNA Line the antenna connections up with the VT4500 inputs and twist to secure (clockwise). ANT 1 (8) ANT (9). t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 10 Enable recording of last file and shut down Power input DC 12V/24V 3A Delayed Power Shutdown Supports Delayed Power Shutdown Size / Weight 195mm X 144mm X 31mm / 323g Operation Temp. -10˚~55˚ t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 11 VT4500 INSTALLATION GUIDE LEDs and Buzzer Specification: t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 12 VT4500 INSTALLATION GUIDE VT4500 Dimensions LxHxW: Dimensions LxHxW 108.3x30.5x195 Items Definition AV Input AV Output/Alarm Diversity Antenna Remote Control AV Output DC Power In Primary Antenna t +44 (0) 1246 225 745 | e orders@visiontrack.com | w visiontrack.com...
- Page 13 VT4500 INSTALLATION GUIDE 2 Chapman Way High Brooms Industrial Estate Tunbridge Wells Kent TN2 3EF...
