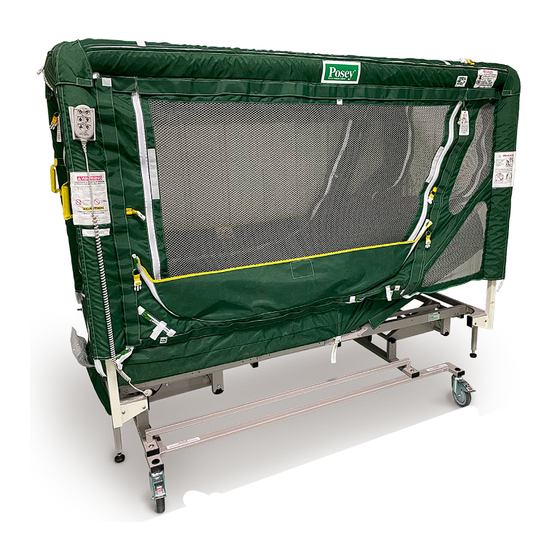

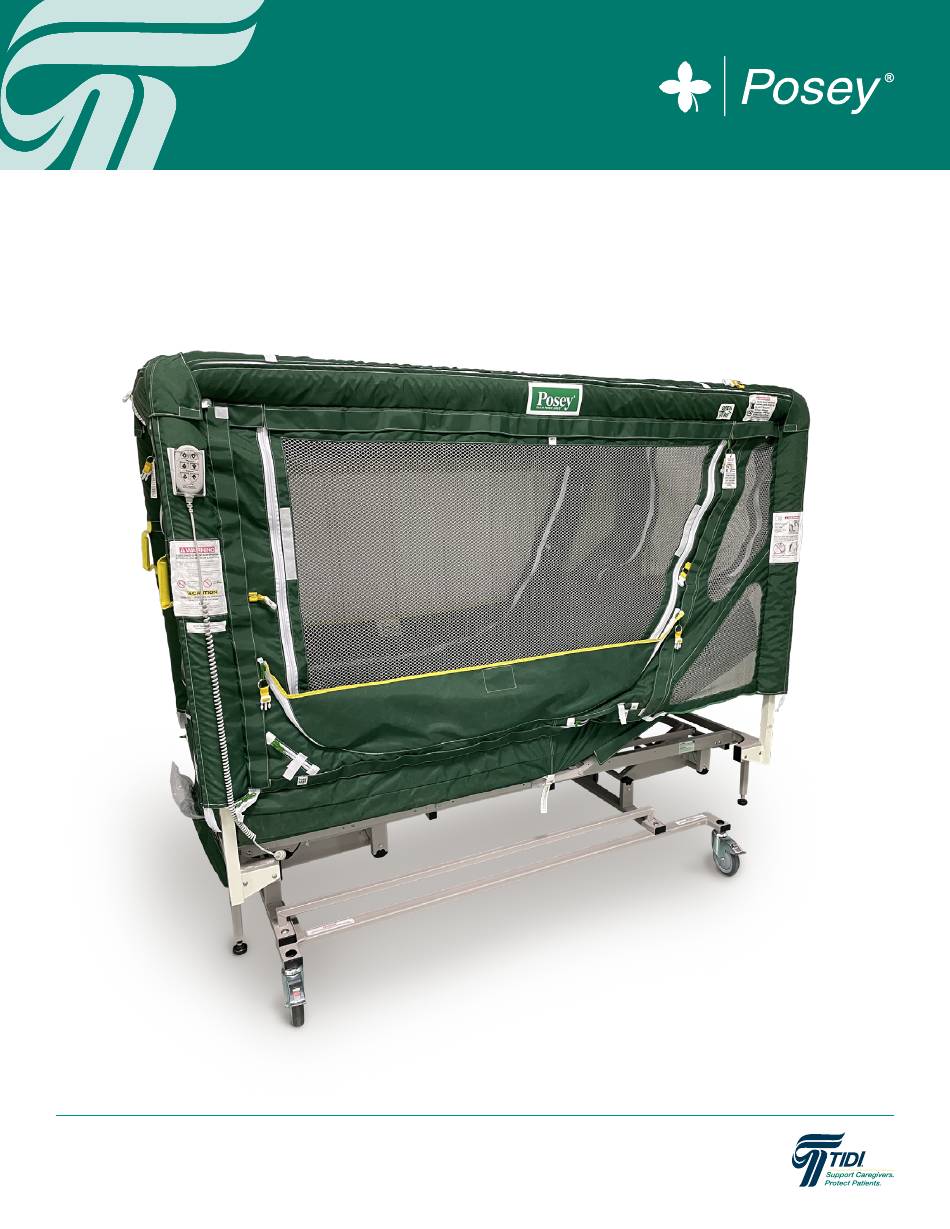

® Posey Bed 8075 Assembly Instructions Posey Bed 8075 shown with Basic American Liberty bed platform For Basic American Liberty bed only Rx ONLY May be patented: see www.tidiproducts.com/virtual-patent-marking...
TABLE OF CONTENTS INTRODUCTION General information Installation BED ASSEMBLY Unpacking the parts Head/foot adapter with transfer brake assembly Caster leg assembly Canopy head end flap bar FRAME ASSEMBLY — POSTS Frame assembly — Rails Foam pad assembly Canopy installation Canopy head end flap installation Mattress installation Wall Saver Installation Power cord attachment...
In order to ensure safe assembly, the operator must always comply with the instructions and warnings contained in the Assembly Instructions. NOTE: The protective devices installed on both the Posey Bed and the accessories may neither be removed nor modified.
The bed is heavy and large; therefore, it is strongly recommended that a second person assist with the assembly of the Posey Bed 8075 to provide stability and to help prevent injury. The bed assembly portion requires two people.
BED ASSEMBLY — UNPACKING THE PARTS Remove all protective packaging from parts and confirm that all parts have been included with the bed. If any items are missing or damaged, please contact TIDI Technical Service at 1.800.521.1314. Note: The authorized stainless steel nylon lock nuts are waxed to prevent seizing and galling when tightening fasteners.
Page 6
❒ Head end flap bar ❒ Bed frame, Basic American model: Liberty ❒ Mattress ❒ Posey Bed canopy ❒ Wireform Wallsaver W W W.TIDIPRODUC TS.COM | 1.8 0 0. 521.1 314 POSE Y BED 8 075 A SSEMBLY INSTRUC TIONS...
BED ASSEMBLY — TRANSFER BRAKE ASSEMBLY MATERIALS • Hardware packet A • 1/2” Socket • Parts K (2) • 9/16” Wrench (1) • 3/16” Allen wrench • Rubber mallet Steps Instructions Install 1 jam nut, 1 lock tooth washer, and four spacers onto the transfer brake foot.
BED ASSEMBLY — CASTER LEG ASSEMBLY MATERIALS • 3/16” Allen wrench Hardware packet B 1/2” Socket • • • Parts GL and GR • 3/4” Socket – GL: Left side of bed • 5/16” Allen wrench – GR: Right side of bed •...
Page 9
BED ASSEMBLY — CASTER LEG ASSEMBLY (continued) Steps Instructions Turn the bed assembly upright, ensure all four casters are still locked by pressing down on the lock on each caster. (STEP 1). Turning the bed upright requires two people. Install 1-1/4” round finishing plug into caster legs. (Fig.
BED ASSEMBLY — CANOPY HEAD END FLAP BAR MATERIALS • Hardware packet C Parts L • • 5/32” Allen wrench • 7/16” Socket Steps Instructions Insert 1/4”-20 1-1/2” bolt into hole in the bar (M) followed by spacer. Repeat on other end of bar. (Fig. 11) •...
NOTE: The frame assembly consists of distinct left and right posts for both the head and foot of the bed frame. Each post is labeled with a letter for easy assembly. Reference the Posey Bed frame location to assist with assembly. (Fig. 16) Frame assembly requires two people to provide stability and to help prevent injury.
FRAME ASSEMBLY — RAILS MATERIALS • Hardware packet C • Parts J (2) • 9/16” Wrench/socket Steps Short rail instructions This section requires two people. Hole direction inward Locking Hold and align one of the short rails (Part J) between the left washer and right head posts (Parts H, I).
FRAME ASSEMBLY — FOAM PAD ASSEMBLY MATERIALS • Parts D (2), E (8) Steps Instructions Open the slot on a short foam pad (Part D) and wrap around the short rail at either the head or foot of the bed. (Fig. 25) NOTE: Make sure that the slot faces outward, away from the bed frame.
FRAME ASSEMBLY — CANOPY INSTALLATION MATERIALS • Parts O (1) • Assembled bed frame Steps Instructions When zipping the canopy, make sure the zipper pins are completely seated. Failure to do this will prevent the zipper from closing securely, which may lead to unassisted bed exit and potential patient injury.
FRAME ASSEMBLY — CANOPY HEAD END FLAP INSTALLATION Steps Instructions Locate the canopy head end flap and the head end flap bar at the head of the bed. (Fig. 32B) Open the hook-and-loop flap and wrap around the head end flap bar at the head of the bed.
Head Foot If not using the Posey Bed 8075 mattress, a mattress that measures 6” x 36” x 80” (15 x 91 x 203 cm) ONLY must be used. Any other size mattress may result in patient injury or death.
FRAME ASSEMBLY — POWER CORD ATTACHMENT Steps Instructions Place the bed control into one of the clear pockets on the canopy near the foot of the bed. (Fig. 37) Secure the power cord with the power cord strap located at the head of the bed. (Fig. 38A, 38B and 38C) WALL SAVER INSTALLATION MATERIALS •...
(Fig. 42) The Posey Bed is now ready for delivery or storage. NOTE: The Posey Bed is designed for use in normal indoor environments. The Posey Bed may be stored in ambient warehouse temperatures at normal humidity levels.
IFU packet Please call TIDI Technical Service at 1.800.521.1314 for more information. For cleaning instructions and warranty, please refer to the Posey Bed 8070/8075 user manual (M6239), which may be downloaded from www.tidiproducts.com. POSE Y BED 8 075 A SSEMBLY INSTRUC TIONS...
Return Merchandise Authorization (RMA). Carefully pack and ship the returned product to us, with your RMA and decontamination form, to TIDI warrants to the original purchaser that the Posey Bed 8070/8075 is TIDI Products, LLC 2530 Lindsay Privado Dr. Ste. A Ontario, CA 91761: free of defects in materials and workmanship.
