8060
User Manual
U.S. Pat. No. 7,047,991 & 7,383,849
Rx ONLY
Posey Company • 5635 Peck Road, Arcadia, CA 91006-0020 USA
Phone: 1.800.447.6739 or 1.626.443.3143 • Fax: 1.800.767.3933 or 1.626.443.5014 • www.posey.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bed 8060 and is the answer not in the manual?

Questions and answers

Summary of Contents for Posey Bed 8060

  • Page 1 8060 User Manual U.S. Pat. No. 7,047,991 & 7,383,849 Rx ONLY Posey Company • 5635 Peck Road, Arcadia, CA 91006-0020 USA Phone: 1.800.447.6739 or 1.626.443.3143 • Fax: 1.800.767.3933 or 1.626.443.5014 • www.posey.com...
  • Page 2 This User’ s Manual is intended for those providing care to patients in the Posey Bed 8060 who are successfully trained on the use of the Posey Bed 8060. It is important that the person(s) using the Posey Bed be properly trained before using the bed. In addition to this manual, you should also review: • The Assembly Instructions • The In-Service Training Manual symbols The symbols below are used throughout this manual and should be carefully read. A Warning alerts you to a safety hazard or unsafe practice, which, if not avoided, could result in serious injury or death. A Caution alerts you to a hazard, which, if not avoided, may result in minor or moderate injury to you or the patient, or damage to the Posey Bed 8060. NOte A Note provides helpful information to make bed use easier and more efficient. definitions The following words have special meaning when used in this Manual: BiOhazaRdOus – matter that is contaminated with human blood; tissues; certain body fluids. Check with the patient’ s doctor if you have any questions about this hazard. CaRe PLaN – the patient’ s Individualized Care Plan (ICP) as written by the IDHT (see below). iNteRdisCiPLiNaRY heaLthCaRe team (idht) – writes the Care Plan and supervises patient care. The team may include, among others, Doctors, Nurses, Occupational Therapy, Physical...
  • Page 3: Table Of Contents

    Posey Bed 8060 ........................9 Parts of the Posey Bed 8060 system ......................... 9 Choosing the Right Bed for use with the Posey Bed 8060 .............10-11 Warnings and Precautions ..........................12-14 Basic Bed Operation .............................15-18 Install or Replace Mattress ..........................15...
  • Page 4: Welcome To The Posey Bed 8060

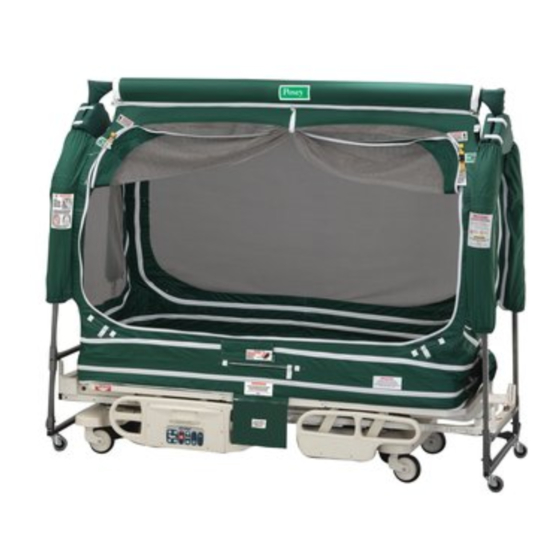

    Welcome to the Posey Bed 8060 introduction The Posey Bed 8060 is an A-Frame canopy system. When attached to a compatible hospital bed (not included), the 8060 is designed to help provide a safe, controlled environment for patients at extreme risk of injury from a fall or unassisted bed exit. Prescription Only Because the Posey Bed 8060 is a restraint, its use must be prescribed by a licensed doctor. Anyone and Required caring for a patient in the Posey Bed 8060 must be trained. training Benefits The Posey Bed 8060 was designed to help provide these benefits: • A controlled patient environment, • Reduce the risk of unassisted bed exit, • Reduce the risk of patient falls, • Avoid the risk of a patient being trapped under a mattress, and • Eliminate the need for side rails when the patient is alone. This avoids the risk of the patient being trapped in the side rails, or between the mattress and side rails. Risks Improper use of the Posey Bed 8060 may lead to serious injury or death. Patient monitoring should be determined by hospital protocol, a doctor, and the patient’ s care plan. As with any less restrictive restraint system, it is important to understand when the Posey Bed 8060 is needed, when it should not be used, and the dangers related to entrapment, suffocation, choking, and falls. Posey Bed 8060...
  • Page 5: About The Posey Bed 8060

    Posey Bed 8060 indications for use The Posey Bed 8060 is an A-Frame canopy system. When attached to compatible hospital bed (When the Posey Bed (not included) the 8060 is designed to help provide a safe, controlled environment for patients 8060 can be used) at extreme risk of injury from a fall or unassisted bed exit. The Posey Bed 8060 is a less restrictive alternative to physical restraints such as belts, vests, or jackets for patients at least 46 inches tall, weighing between 46 and 300 pounds. The Posey Bed 8060 is a restraint, and must be prescribed by a licensed physician that includes Rx use in the home environment. The Posey Bed 8060 must follow: Bed use • All state regulations, • Federal Center for Medicare & Medicaid Services (CMS) Regulations, • The patient’ s care plan (check with the doctor if you have any questions about whether a patient’ s care plan is needed to help meet any special needs (if applicable) of the patient, • The policies of your facility (if applicable). Patients Who may...
  • Page 6: When The Bed Should Not Be Used (Contraindications)

    When the Bed should Not be used (Contraindications) When Not to use It is important to note that Posey Bed 8060 is not suitable for every patient because every the device patient’ s diagnoses, or activity level are different, the Posey Bed 8060 is not suitable for every patient. The Posey Bed 8060 is not intended for use with: • Patients who weigh less than 46 pounds, or are shorter than 46 inches. – These patients are at risk of serious injury or death, and the Posey Bed 8060 h as not been tested for use by such patients. • Patients who weigh more than 300 pounds. – This is the maximum load capacity of the Posey Bed 8060 canopy. • Patients diagnosed with any condition that may cause violent or self-destructive behaviors. – These could result in self-injury and/or damage to the Posey Bed 8060. – Violent moving of the body from side to side could cause the Posey Bed 8060 t o tip over or move to a position where the patient is injured by contact with an object i n the room. – Patients who rub excessively.
  • Page 7: A Special Note

    – If you need to elevate the head or body of an at-risk patient, while the patient is alone, k eep the mattress flat and use a Posey Torso Cushion (Cat. 8025) to position the patient. – If you must leave the head of the bed up for an at-risk patient (for example, while watching TV or if called f or by the doctor’ s order, or the patient’ s care plan, use the Posey Filler Cushions (Cat. 8021) and provide extra monitoring. • Provide extra monitoring. – Monitor patient per facility’ s restraint protocol to ensure that the Posey Filler C ushions cannot be removed by an at-risk patient and that an at-risk patient cannot c rawl under or around the Posey Filler Cushions. • Avoid stretching the canopy material. – The canopy may stretch over time during normal use, or due to patients who try to escape. This could result in pocket areas on the inside of the canopy. Regular washing and drying should help reduce this condition. dO NOt use any canopy that has tears or damage and request a replacement. alternative method...
  • Page 8: Patient Reassessment

    Patient Reassessment If the patient’ s physical or mental health changes, check with the doctor to make sure the Posey Bed 8060 is still a safe enviroment. Use the Posey Bed 8060 only if there is not a less restrictive alternative. aLWaYs use the least restrictive device available for the shortest time while you seek a less restrictive option. alternatives to Review the patient’ s mental and physical status often to be sure that the benefits of using the Posey Bed 8060 as a restraint outweigh the risks. Restraint use Safe use requires that: • You define and remove, if possible, the cause of the symptoms that require a restraint. This may include catering to individual needs and routines; increased rehabilitation; restorative nursing; changing the environment; or increased supervision. • You tailor interventions to the individual needs of the patient after weighing factors such as the patient’ s condition; behaviors; history; and environment. When possible, seek guidance from the patient’ s family. Depending on the patient’ s condition, alternatives to restraints may include one or more of these: • A bedside companion, • Fall alarms, • Floor cushions, • Lowering the volume on the TV, • Adjusting window shades or dimming lights,...
  • Page 9: Description Of The Posey Bed 8060

    • NYLON CaNOPY sYstem An A-frame green canopy surrounds the bed. The nylon is biocompatible. The canopy has four (4) access panels for easy access to the patient, and multiple ports for intravenous lines, the Nurse Call Button, or drainage line. Zippers are secured with Quick-Release Buckles. Parts of the Posey Bed 8060 system 1. eNCLOsed eXPaNdaBLe mattRess COmPaRtmeNt. Designed to fit a 6 inch (15 cm) mattress or a ten inch (25 cm) air mattress. 2. NYLON CaNOPY. The nylon material is water-repellent. 3. a-FRame. A sturdy “A” shaped metal frame supports the Nylon Canopy. 4. tWO “u” side PaNeLs. One (1) panel on each side with a single zipper on each panel for easy patient access. 5. head (5a) aNd FOOt (5B) aCCess PaNeLs. Helps provide easy access to the head and foot of the bed with a single zipper on each panel.
  • Page 10: Choosing The Right Bed For Use With The Posey Bed 8060

    Choosing the Right Bed for use with the Posey Bed 8060 Compatible hospital The Posey Bed 8060 is an A-Frame canopy that attaches to a compatible hospital bed. Because the canopy does not include a bed, it is very important to choose the correct hospital bed for proper Beds and safe use. Using the wrong bed may result in serious injury or death to the patient. There are a number of hospital beds in use today, from many manufacturers, which are fully compatible with the Posey Bed 8060. Hospital beds come with either removable head and footboards, or non- removable head and footboards. Compatible hospital beds must meet the following requirements: • Length of bed frame must be ≤ 96” and does not retract < 76” Deck of Bed • Width of bed frame must be ≤ 36” • The height of the bed platform (deck of the bed) from the floor must be able to adjust between 16 16” - 25” and 25 inches. Depending on the features of the bed, operational limits must also be observed when a Posey Bed canopy is in use as described in the User Manual. For example, the head of bed angle can only be raised to ≤ 70° .
  • Page 11: Choosing The Right Bed For Use With The Posey Bed 8060

    Choosing the Right Bed for use with the Posey Bed 8060 (Continued) NeveR use the Posey Bed 8060 with: incompatible Beds • Residential-type beds. The canopy system of the Posey Bed 8060 is not designed to s ecurely attach to residential-type beds. A failure to heed this warning may result in serious injury or death from entrapment or suffocation, or from a fall or unassisted bed exit; • Any hospital bed which cannot be lowered between sixteen (16”) and seventeen (17”) inches from the deck of the b ed to the floor. It is necessary to lower the bed to at least seventeen to keep the canopy tight and avoid a “blousing” effect and excess material in the patient compartment, which will increase the risk of entrapment or suffocation; • Any hospital bed that allows the head to be raised to an angle greater than seventy degrees (> 70°). Raising the head to a greater angle will damage the canopy and increase the risk of serious injury or death from a fall or unassisted bed exit; or • Any hospital bed that does not securely attach to the Posey Bed 8060 with either ( 1) the four IV Post Mount Brackets or (2) the Posey Bed Universal Straps; as this may result in serious patient injury. NeveR allow patient weight to exceed the maximum load of 300 lbs. The Allen Head Screws on the bottom center...
  • Page 12: Warnings And Precautions

    Filler Cushions Canopy Gaps Entrapment Torso Cushion Entrapment risk for certain at-risk patients include canopy gaps. Raising the head of the Posey Bed 8060 will create “gaps” or “pockets” between the head of the bed and the canopy. These areas can cause extreme risk of serious injury or death from entrapment to certain at-risk patients. Keep the mattress flat with the head of the bed down, when an at-risk patient is alone. Use Posey Filler Cushions (Cat. 8021) if an at-risk patient’ s head or body must be elevated (for example, while watching TV, or if called for by the doctor’ s order or the patient’ s care plan). In this case, provide extra monitoring per the facility’ s restraint protocol to ensure that the Posey Filler Cushions (Cat. 8021) cannot be removed by an at-risk patient and that an at-risk patient cannot c rawl under or around the Posey Filler Cushions. If filler cushions are not available, lower the bed to the flat position and use a Posey Torso Cushion (Cat. 8025). To help reduce the risk of suffocation, do the following: • NeveR put a mattress inside the patient area, Risks associated • aLWaYs keep the mattress in the mattress compartment, completely zipped, with suffocation or • Keep tubes or monitoring lines and the Nurse Call Button inside the bed only if allowed Choking by the care plan.
  • Page 13 NeveR leave a patient alone without proper monitoring. Failure to monitor per your facility’ s importance of policy, the doctor’ s orders, or the care plan could result in serious injury or death. Patient monitoring NeveR change the Posey Bed 8060 for any reason. • NeveR use any device, such as a Zip Tie or a padlock, to secure panel zippers. Only use the alterations to the Posey Quick-Release Buckles. You must aLWaYs be able to access the patient quickly in an Posey Bed 8060 emergency. • dO NOt add any accessories to the Posey Bed 8060 other than those recommended b y Posey. Make sure there are no tears, holes or cuts in the nylon panels or netting and that the canopy and frame are secure and attached properly to the hospital bed. Check the Canopy NeveR leave objects in the bed that will allow the patient to damage the canopy, and possibly escape. NeveR hang, suspend or attach toys or other items to the netting or canopy. Avoid risk of a fall or unexpected bed movement. Minimize the risk of injury to you and the Precautions during patient by following the procedure (see page 24) for transferring patients in and out of the Posey transfers and Bed 8060.
  • Page 14 • NeveR leave the patient’ s bedside until all access panel zippers are securely closed. Quick-Release Buckles must be connected and closed on both of the two (2) side access panels before leaving the patient alone. (See page 16) • NeveR use the bed if a zipper coil is kinked, misaligned, or has gaps and does not close securely along the entire length. Test that all zippers open easily and close securely along the entire length of the zipper. Inspect zipper coils for any kinks or misalignment. If any are identified, zip and unzip the zipper. If condition continues, dO NOt use product. Note the kinks on this sample. Zipper kinks DO NOT use the Posey Bed if zippers have open gaps that do not close securely along the entire length Before leaving the patient alone, apply pressure with NeveR rip the panels open, your hands along the entire length of the zipper to as this will damage the make sure the panel is securely closed and that there zipper slider, preventing the are no gaps or openings along the entire length of zipper from closing securely.
  • Page 15: Basic Bed Operation

    2. Fully expand the mattress compartment by unzipping the zipper around the entire length of the mattress compartment. 3. Follow instructions above on how to install a mattress. to help reduce the risk of entrapment or suffocation: • aLWaYs use the proper size mattress (see “Choosing the right mattress” above). Using a smaller mattress will result in gaps between the canopy and mattress. U sing a larger mattress will stress the fabric and may damage the zipper. • The mattress must be fully zippered into the mattress compartment at all times when a patient is in the Posey Bed 8060. • NeveR open or close the mattress compartment while the head or knee of the bed is in the UP position, as this may damage the fabric and/or the zipper. • NeveR use a mattress less than six inches (15 cm) high. aLWaYs make sure the expansion zipper is fully closed when using this size mattress. • NeveR use a mattress smaller than ten inches (25 cm) high when the compartment is expanded. • Make sure the expansion zipper is closed when using a six inch (15 cm) mattress. • NeveR put a mattress inside the patient area of the bed. A failure to follow these warnings may result in excess material in the patient area and increase the risk of serious injury or death from entrapment or suffocation. Posey Bed 8060...
  • Page 16: Zip And Unzip The Access Panels

    Panels introduction The Posey Bed 8060 has four (4) zippered access panels each labeled: • 2 side panels (A & B) • 1 end panel (C) • 1 end panel (D) All panels unzip for easy patient access. using the Quick- There is a Quick-Release Buckle at the start of the zippers on the side access panels. To open the buckle, pinch the 2 sides Release Buckles together and pull the clip apart. To close the buckle, push the male and female ends of the Quick-Release Buckle together until you hear a click. aLWaYs tug on the clip after closing to make sure it is connected. Make sure Quick-Release Buckles are securely fastened on both of the two (2) side access panels on the Posey Bed 8060 before leaving the patient’ s bedside. A failure to do so could result in serious injury or death from a fall or unassisted bed exit. NeveR use the bed if any of the Quick-Release Buckles are missing or damaged and do not close securely. access Panels The Posey Bed 8060 has four (4) zippered access panels: two side panels, and two end panels. side Panels. Each side panel has two zippers and a pull-tab. Each zipper has a pull-tab for opening and closing zippers. At the top corner on each side of the bed are Quick-Release Buckles, a set of...
  • Page 17: Zip And Unzip The Access Panels

    Zipper kinks along the entire length of the zipper to ensure there are no gaps or openings before leaving the patient alone. NeveR rip the panel open, as this will damage the zipper slider, preventing the zipper from closing completely. DO NOT use a zipper with open gaps that does not close securely along entire length Replacing Pull-tabs The side access panel zippers have a warning instruction plastic tag. If the plastic tag is damaged or becomes unreadable, it must be replaced. Call Posey at 1.800.447.6739 and request a free replacement (Part L9368). NeveR use the Posey Bed 8060 if there is damage to the canopy, damage to the access panels, or if the entire zipper does not close completely. A failure to follow this warning may lead to serious injury or death from a fall. aLWaYs check the canopy and ensure the entire zipper is completely closed before leaving the patient alone to help reduce the risk of a fall or unassisted bed exit. Posey Bed 8060...
  • Page 18: Use The Tube And Drainage Ports

    Ports introduction Tube and drainage ports allow for tubes (food, drainage, etc.) and IV lines to be delivered to and from the patient while in the bed. how to run tube/ To run a tube or line into the patient compartment, unzip the port, run the tube or line through the zipper opening into the patient compartment, and zip the port closed. Close the zipper as Line much as possible without impeding the flow of the tube. A tube port in use: A drainage port in use: dO NOt place the tube through the netting. Make sure zippers are fully closed when ports are not in use. This will help reduce the risk of the patient damaging or opening a port, or trying to escape by putting a hand or foot through a port. NeveR leave an unused port open when the patient is alone. aLWaYs check the condition of all tubes when raising or lowering the bed. There should be no “kinks” in the tube and fluids should flow freely to and from the patient. Posey Bed 8060...
  • Page 19: Before First Time Use

    Before First time use Purpose Before using the Posey Bed 8060 for the first time, it’ s important to check that the Posey Bed 8060 has been properly assembled, is in an appropriate area, and anyone who interacts with a patient in the Posey Bed 8060 successfully completes training. 3 Checklists Use the following checklists before having a patient occupy the Posey Bed 8060: • Check for Proper Bed Assembly • Guidelines for Proper Bed Location • Guidelines for Training Check for Proper Bed assembly Purpose To confirm that the Posey Bed 8060 was properly assembled and delivered in good condition. Biomedical Engineer or other authorized person. Who should do this? Checklist Prior to use with a new patient, photocopy and retain this checklist to record that each item has been verified.
  • Page 20: Guidelines For Proper Bed Location

    Guidelines for Proper Bed Location Purpose Patient safety asks that the Posey Bed 8060 is located in an area that provides easy access to the patient under both normal and emergency conditions. Who should do Attending Nurse or Caregiver. this? Checklist NOte: Each No (in table below) must be corrected before allowing a patient to use the Posey Bed 8060. Prior to use with a new patient, photocopy and retain this checklist to record that each item has been verified. Check 1. Is the Posey Bed 8060 clean? 2. Can a patient be easily accessed and can the bed be moved to the center of the room to allow access from all four (4) sides in an emergency situation? 3. Is the bed positioned so that the patient is NOt exposed to injury...
  • Page 21: New Patient Selection And Monitoring

    New Patient selection and monitoring Purpose To make sure that the Posey Bed 8060 is right for the new patient and that his or her first hours in the bed are safe and secure. Who should do Attending Nurse or Caregiver. this? Before allowing a patient to occupy the Posey Bed 8060, confirm the following: • A doctor has prescribed the Posey Bed 8060 for this patient, • A current patient care plan is available and followed, • The attending caregiver has been properly trained in the use of the Posey Bed 8060. Checklist NOte: Any Yes (in table below) indicates that the doctor must determine if the Posey Bed 8060 is appropriate for the patient. Prior to use with a new patient, photocopy and retain this checklist to record that each item has been verified. Check 1. Does the patient weigh less than 46 pounds?
  • Page 22: Emergency Patient Access And Exit

    Position the bed so it can be accessed from all four (4) sides. b. Lock the hospital bed casters. c. Lower the head and knee so the mattress is flat. d. Unclip the Quick-Release Buckles. e. Unzip aLL panels. f. Attend to the patient. 2. Exit patient, if necessary Transfer patient to stretcher or wheelchair. Position bed so it can be Lock the hospital bed casters Unzip all panels accessed from all four (4) sides disaster Planning Should disaster strike such as an earthquake or fire, have a disaster plan ready. Posey Bed 8060...
  • Page 23: Regular Daily Patient Care

    Regular daily Patient Care introduction Patients using the Posey Bed 8060 should be carefully monitored and cared for according to the doctor’ s orders and the patient’ s care plan. Given normal, everyday care such as feeding or using the bathroom, this section addresses how to: • Move the patient into the bed • Access and care for patient in the bed • Transfer the patient out of the bed • Conduct the “Quick-Check 10” before leaving patient alone safe transfers and Safely moving the patient and completing patient care inside the Posey Bed 8060 includes a number of Care factors: • Patient size • Medical condition • Disability • Ability to move Moving the patient to or from the bed will be different for patients who are able to stand instead of patients who must be lifted to or from the bed. NeveR use a patient lift for transfer unless it has been tested to make sure there is enough room under the canopy frame to do so safely. Using a...
  • Page 24: Moving The Patient Into The Bed

    Patient into the Bed Purpose To safely get a new or existing patient into the Posey Bed 8060. dO NOt use a patient lift unless already tested. This is to be sure there is enough room under the canopy frame to transfer the patient safely without damaging the canopy (see page 23). During patient care and when moving the patient into and out of the Posey Bed 8060, lock all hospital bed casters. Procedure NOte: Additional persons may be needed for a safe transfer. steP dO this a. Make sure area around the bed is clear of any 1. Prepare bed for patient. tripping hazards. NOte: Raise bed for easy access. b. Ensure the hospital bed casters are locked. c. Put mattress in the flat position. d. The caregiver must access the patient from the open frame side. e. Unclip the Quick-Release Buckle. f. Unzip the side panel and secure with the hook and loop tabs. 2. Transfer the patient to the bed. a. Speak gently and assure them the bed is for their comfort and security.
  • Page 25: Access And Care For The Patient In The Bed

    Care for Patient in the Bed Purpose To access safely and provide care to a patient in the Posey Bed 8060 including feeding, IVs, catheters, respiratory therapy, positioning, visitors and medicating. Make sure the patient is a safe distance from the side panel and the mattress is flat before accessing them. Serious injury may occur due to the added distance if the patient falls when the bed is raised. During patient care and when moving the patient into and out of the Posey Bed 8060, lock all hospital bed casters. NOte: Approach the patient gently to ensure they are comfortable and secure. Procedure steP dO this a. Make sure area around the bed is clear of any 1. Access the patient. tripping hazards. NOte: Raise bed for easy access. b. Ensure the hospital bed casters are locked. c. The caregiver must access the patient from the open frame side. d. Unclip the Quick-Release Buckle. e. Unzip the side panel and secure with the hook and loop tabs. 2. Attend to the patient. The caregiver should position his or her body to block the area of the open access panel to help reduce the risk of a fall while providing care.
  • Page 26: Moving The Patient Out Of The Bed

    Patient Out of the Bed Purpose To safely assist a patient out of the Posey Bed 8060 so he/she may use the bathroom or other reasons. dO NOt use a patient lift unless already tested. This is to be sure there is enough room under the canopy frame to transfer the patient safely without damaging the canopy. During patient care and when moving the patient into and out of the Posey Bed 8060, lock all hospital bed casters. Procedure NOte: Additional persons may be needed for a safe transfer. steP dO this 1. Access the patient. a. Speak gently to ensure they are comfortable and secure. b. Check that they are a safe distance from the panel. c. Make sure area around the bed is clear of any tripping hazards. d. Put mattress in the flat position. e. The caregiver must access the patient from the open frame side. f. Unclip the Quick-Release Buckle. g. Unzip the side panel and secure with the hook and loop tabs.
  • Page 27: A Special Considerations For Home Care Enviroments

    Consideration for home Care environments use in a home Care All caregivers must be properly trained and familiar with the content of the manual before caring setting for the patient in a Posey Bed. Pay particular attention to all warnings and cautions in the manual to avoid injury or death. • Only for the amount of time prescribed for use by a licensed medical doctor (Rx Only). • Only if each caregiver has reviewed and understands all instructions and warnings for safe use. • Only if persons are fully trained on the use of the Posey Bed 8060 and are present in the house to monitor and attend to the patient’ s needs whenever the patient is in the bed. • You must carefully follow the doctor’ s orders and the patient’ s care plan (if any) for use of the dr.’s Orders Posey Bed 8060. This includes all orders for monitoring and patient release. Care Plan If your patient was using a Posey Bed during hospitalization or while in a nursing home, you should ask the facility for a copy of the Care Plan to help guide you in the safe use of the Posey Bed 8060. Check with the doctor to see if the Care Plan is necessary to help meet the special needs of your patient. Entrapment risks for certain at-risk patients include canopy gaps. Raising the head of the Posey Bed entrapment Risk 8060 will create “gaps” or “pockets” between the head of the bed and the canopy. These areas can...
  • Page 28 Consideration for home Care environments (Cont.) NeveR leave side rails in the up position when the patient entrapment Risk compartment is closed. A failure to follow this warning may result (all Patients) - use in serious injury or death from entrapment in the side rails, or of side Rails between the mattress and the side rails. The risk of entrapment is even greater when the head of the bed is raised. These zones pose an extreme risk of serious injury or death from entrapment. An agitated or aggressive patient is also at risk of injury from contacting the side rails when they are in the UP position. To help reduce the risk of entrapment, aLWaYs put side rails down when leaving a patient alone to reduce the risk of entrapment and serious patient injury or death. Side rails should ONLY be used as an aid to assist a patient in or out of bed, or to help prevent a patient fall while providing bedside care. in Patient Immediately address the patient’ s needs or remove the patient from the bed. Contact the doctor emergency or call 911. importance of Patient monitoring If possible, Posey recommends a caregiver sleep in the same room as the patient. If you cannot be physically present to monitor the patient, you MUST use a device, such as a child monitor, for CONSTANT audio and/or video monitoring. Test to be sure that you can hear low levels of activity in the room. Failure to do so could result in serious injury or death. Posey Bed 8060...
  • Page 29: Quick-Check 10

    (at-risk patients not able to reposition themselves): To avoid entrapment, keep the head of the bed flat and use a cushion to elevate the torso if necessary. If the head of the bed is raised, use gap filler cushions. Compartments: Zipped completely closed with no gaps or kinks in the entire length of the zipper. Test by applying pressure along the entire length of the zipper. zippers and quick-release buckles: Securely closed. drainage/tube port: if tubing and tube port is in use, all fluids are flowing freely; if tubing is not in use, port is zipped closed. Frame Condition: Canopy, panel, and netting have no tears, holes or abrasions. Frame is firmly attached to the bed platform, undamaged, and fully padded. Top rail is in the highest position. Bed height: Bed platform should not be raised above 25” (64 cm) or lowered below 16” (41 cm). Lower bed to 16” (41 cm) when patient is alone. side rails: aLWaYs ensure all side rails (if available) are in the fully down position. Casters: all hospital bed casters (if available) are locked. a. Nurse Call Button: If the patient’ s care plan allows it, the nurse call button is placed within reach of the patient. B. monitoring (home use): Caregiver should sleep in the same room or use a device, such as a child monitoring system for constant montoring. (See Reverse for Warnings.) Posey Bed 8060...
  • Page 30: When Not To Use The Posey Bed

    When Not to use the Posey Bed Purpose To make sure that the Posey Bed is properly assembled and is in good condition before patient use. The Posey Bed must be inspected each time before leaving the patient’ s bedside. aLWaYs remove the patient from a damaged Posey Bed and remove it from service to prevent serious injury or death. Notify an authorized Posey representative for information about repairs. The repairs must be completed before the bed can be put back in service. • Canopy Metal Frame is bent or broken. • Canopy is not securely attached using the IV Post Mount Brackets or the Universal Bed Straps. • Canopy Frame is not completely covered by foam padding. • Canopy and Netting have tears, holes, or abrasions. Posey Bed 8060...
  • Page 31: When Not To Use The Posey Bed

    When Not to use the Posey Bed (Cont.) • Zippers and zipper pins are not completely seated in their boxes and/ or not all of the teeth are engaged. • Zippers produce gaps and/or openings when pressure is applied to the entire length of the zipper. • Zippers do not close securely along the entire length. Gaps or openings in the zipper may allow the patient to open the zipper and fall out of bed. Always apply pressure along the entire length of the closed zipper to make sure there are no gaps or openings. Opened Up • Zipper pull tabs are open/damaged and will not close the zippers. Damaged pull tab Crown (Tab) Holder Pull-Tab Body Undamaged pull tab...
  • Page 32: Quick Clean The Posey Bed 8060

    Quick Clean the Posey Bed 8060 Purpose To keep the Posey Bed 8060 clean and disinfected between complete bed and canopy cleanings. Procedure stePs dO this a. Prepare a solution of diluted disinfectant or a 1. Wipe the fabric with cleaning agent water-based germicide. NOte: NeveR use a concentration b. Use a damp cloth. of cleaning agent greater than c. Rinse with water to remove excess cleaning recommended by the manufacturer. agent. 2. Dry fabric Either wipe or air dry before use. 3. Clean the Hook and Loop strips Use a stiff brush to remove any lint or foreign materials. separate mattress Compartment from Patient Compartment Purpose To separate the mattress compartment from the patient compartment for easier loading in a washer.
  • Page 33: Machine Washing The Posey Bed 8060

    Washing the Posey Bed 8060 aLWaYs wash the canopy between patients to help prevent transmission of infectious disease. Purpose To keep the Posey Bed 8060 clean and disinfected. Procedure stePs dO this a. Use a mild detergent. 1. Wash the Canopy on one gentle cycle in cold b. Load panels loosely into washing water. NOte: Water should be between 65-85°F machine. c. Rinse thoroughly with water. (18-30°C) for approximately 25 minutes. Hang dry at room temperature or 2. Dry fabric. machine dry on air-only cycle (no heat). 3. Clean the Hook and Loop strips. Use a stiff brush to remove any lint or foreign materials. - dO NOt use industrial extractor-type laundry equipment, as this may damage the zippers and buckles. - NeveR use bleach, harsh cleaners or solvents. - aLWaYs attach hook and loop pieces together. Zip all zippers and connect Quick-Release Buckles.
  • Page 34: Posey Accessories

    POseY iNCONtiNeNCe Pad (8005a) To help protect mattress and bedding from urine spills. 8005A can be used with the Posey Support Surface. POseY tORsO CushiON (8025) POseY suPPORt suRFaCe (8007) Recommended to elevate the torso when the To provide additional padding and to help head of the bed is DOWN. secure sheets by tucking them underneath the support surface. POseY Bed PediatRiC CaNOPY COveR (8003P) aNd skiRt (8003Ps) POseY Bed tRaveL COveR (8008) Attaches to the outside of the Posey Bed To provide a cover for the Posey Bed during canopy to provide a child-friendly appearance. t ransport and storage. Posey Bed 8060...
  • Page 35: Troubleshooting And Frequently Asked Questions

    The slider is damaged and does not properly engage the coils when it is being closed. dO NOt use the Posey Bed 8060. This problem can be minimized by aLWaYs u sing the zipper pull-tab to open the zipper. NeveR rip the access panel open because it w ill damage the slider and prevent the zipper from closing securely. 3. Q: Where do i find the serial number of the Posey Bed 8060? A: The serial number label is on the bottom right of one end of the bed and on t he Metal Retainer. Patient Lifter Q: Can i use a patient lift with the Posey Bed 8060? a: Yes, providing it has been tested to ensure there is enough clearance under the canopy frame.
  • Page 36: Posey Limited Warranty

    • In clean condition. (Canopies that are returned dirty or smelly will be returned immediately and will not be inspected or repaired.) • With proof of purchase, and • Freight pre-paid by you. Posey will inspect the product and contact you within five (5) business days to explain the results of our inspection and what is or is not covered. hOW dOes state LaW aPPLY? This warranty is governed by the laws of the State of California, USA. It gives you specific legal rights. You may have other rights, which vary from state to state. This warranty does not affect any further rights that you have under the laws in your state for sale of consumer goods. technical service From Posey We are happy to assist you between the hours of 6 AM and 5 PM Pacific Time, USA. Please call us at 1.800.44.POSEY (1.800.447.6739), or 1.626.443.3143. You can fax us at 1.800.767.3933, or 1.626.443.5014. shiPPiNG: Ship items to Posey Company: 5635 Peck Road, Arcadia, CA 91006-0020 USA. CaNOPY RePaiRs. To prevent damage in shipping, clean the canopy and close all zippers. iN-WaRRaNtY RePaiRs: 1. Forward the product in clean condition, prepaid freight to the above address. 2. Clearly mark the shipping container with the RMA number. 3. Include dated proof of purchase.
  • Page 37 Notes...
  • Page 38 Notes...
  • Page 39 Notes...
  • Page 40 Your Local Authorized Posey Bed Dealer: Posey Company • 5635 Peck Road, Arcadia, CA 91006-0020 USA • www.posey.com Phone: 1.800.447.6739 or 1.626.443.3143 • Fax: 1.800.767.3933 or 1.626.443.5014 © 2012 Posey Company. All rights reserved. M6138 REV B 062612...
