Connecting to Your Network - Option 2 - Ethernet

1. Connect the 3D scanner using an ethernet
cable (not included).
2. Connect the ethernet cable to the 3D
scanner, and then connect the other end to
your router. (Figure 7.)
3. Open your web browser and enter the
IP address projected by the 3D scanner.
4. Optionally: Click on the "hamburger menu"
(the three horizontal lines) at the top-left
corner of the page. (Figure 8.)
5. Optionally: Choose "Network", then click on
WIFI and select your WIFI network and enter
its password.
6. Optionally: When the 3D scanner
successfully connects to your WIFI network it
will project "Connected" with an IP address.
Type the IP address in your web browser to
connect using WIFI.
7. Optionally: You may disconnect the ethernet
cable and use THREE via WIFI.

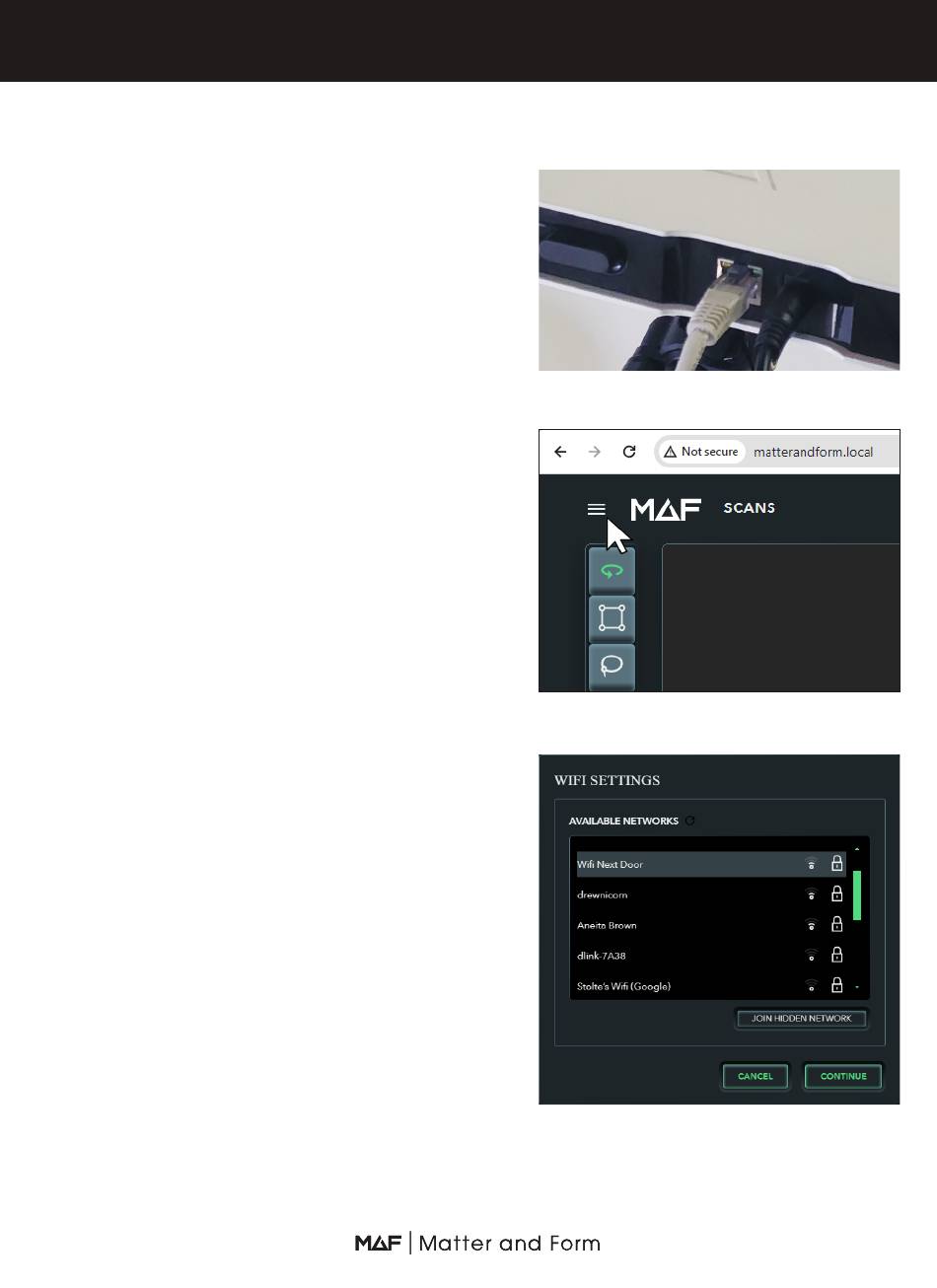

Figure 7 - Ethernet cable plugged in
Figure 8 - The Hamburger Menu
Figure 9 -WIFI Selection Screen
