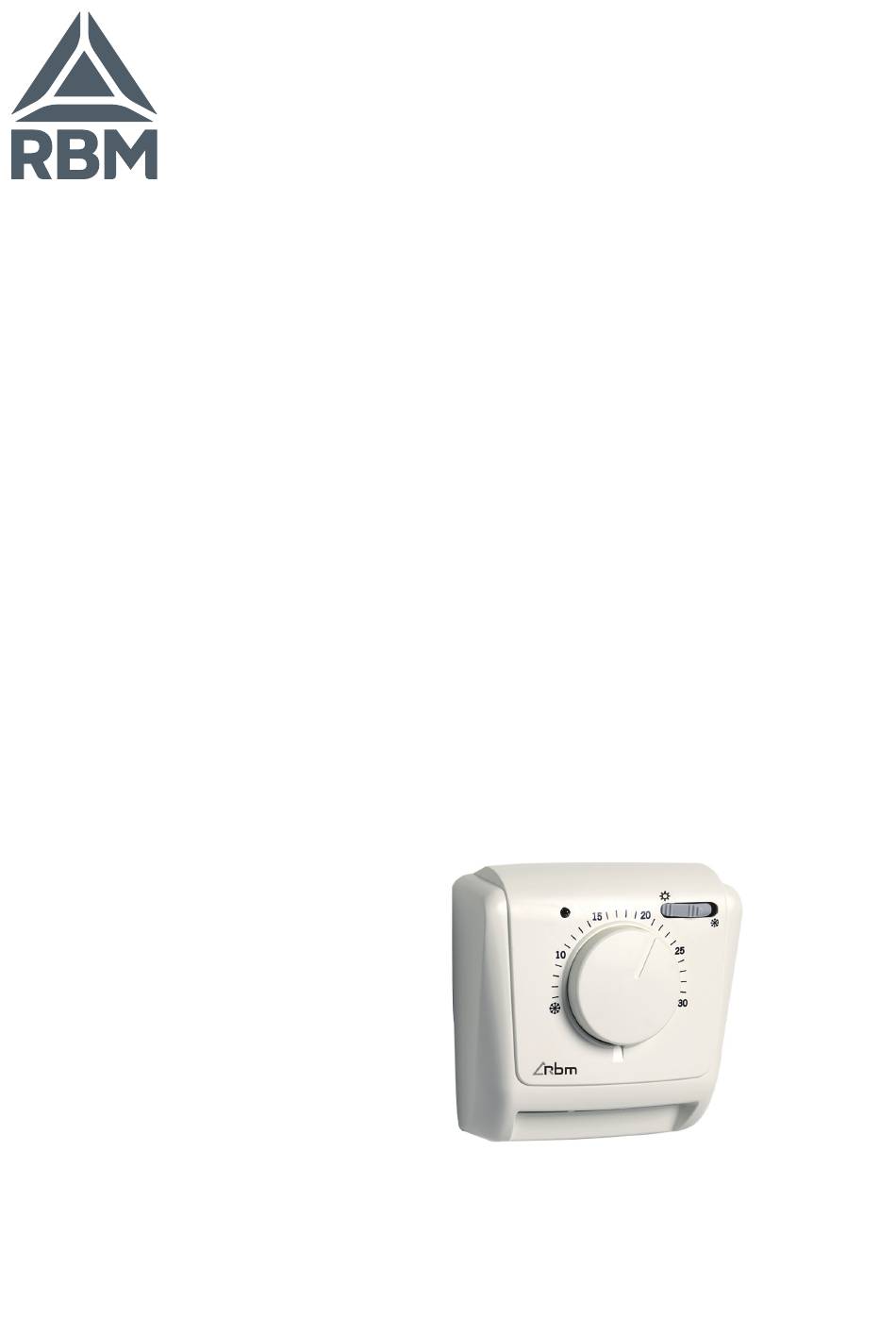

- Page 1 Rev. 06/2024 AMBIENT GAS MEMBRANE THERMOST USER MANUAL...
-
Page 2: Safety Warnings

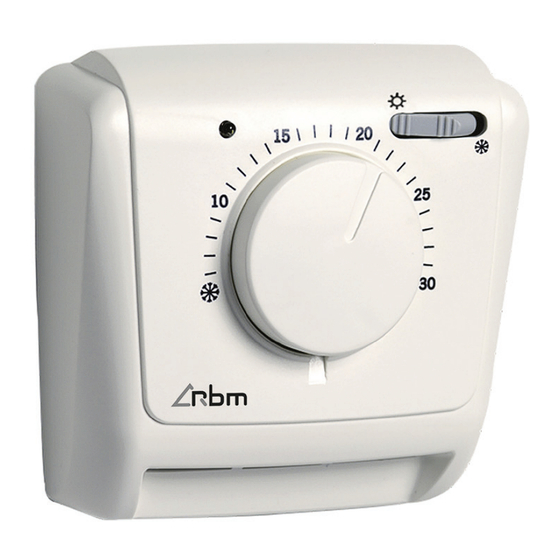

Rev. 06/2024 AMBIENT GAS MEMBRANE THERMOST PRODUCTION RANGE Code Description 386.00.22 Mechanical thermostat with Summer/Winter selector switch READ ALL THE INSTRUCTION CAREFULLY This thermostat is designed for automatic regulation of heating and conditioning systems in houses, hotels, schools, offi ces, workshops and many other environments, both domestic and industrial. -
Page 3: Technical Specifications
DIMENSIONS TECHNICAL SPECIFICATIONS Free mounted single-pole mechanical thermostat Setting range +5 / +30 °C Differential ∆t ≤ 1 °C Capacity of the contacts 10(1,5)A 250V~ Thermal gradient 1 °C /15 min. Sensitive element vapour expansion lung Class I equipment Protection degree IP 20 Type of action Silver contacts 1000/1000... -
Page 4: Installation
INSTALLATION You are advised to position the thermostat as far as possible in a place that refl ects the average temperature of the whole area. Avoid positioning it near doors, windows, sources of heat and in places where there is too much or too little ventilation. The thermostat should be fi tted at approximately 1.5 m from the ground. - Page 5 Part 2: particular provisions for thermosensitive command devices. RBM spa reserves the right to improve and change the described products and related technical data at any moment and without prior notice: always refer to the instructions attached with the supplied components; this sheet is an aid, should the instructions be extremely schematic.
