Hardware Hookup - sparkfun SGP30 Hook-Up Manual

2

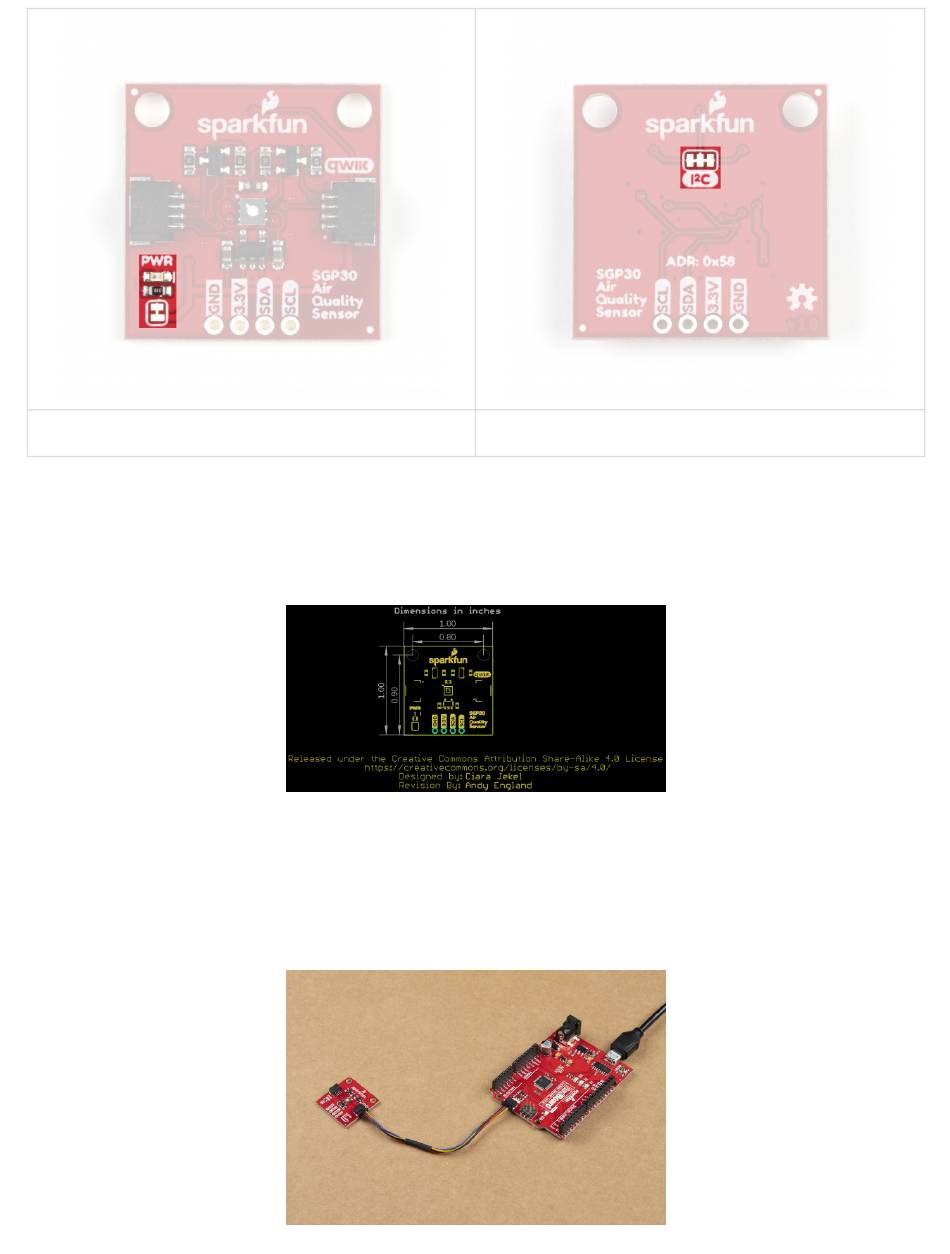

Power LED Jumper I C Pull-Up Resistor Jumper
Board Dimensions
We've designed the SparkFun Air Quality Sensor to match our Qwiic breakout standard. The board measures 1" x
1" and has two mounting holes that fit a 4-40 screw. For specific spacing measurements, take a look at the
dimensional photo below.

Hardware Hookup

Using the Qwiic system, assembling the hardware is a breeze. All you need to do is connect your SparkFun Air
Quality Sensor - SGP30 (Qwiic) to your chosen development board with a Qwiic cable or adapter cable. If you
would prefer to not use the Qwiic connectors, you can connect to the 0.1" header pins broken out on bottom of the
board.
