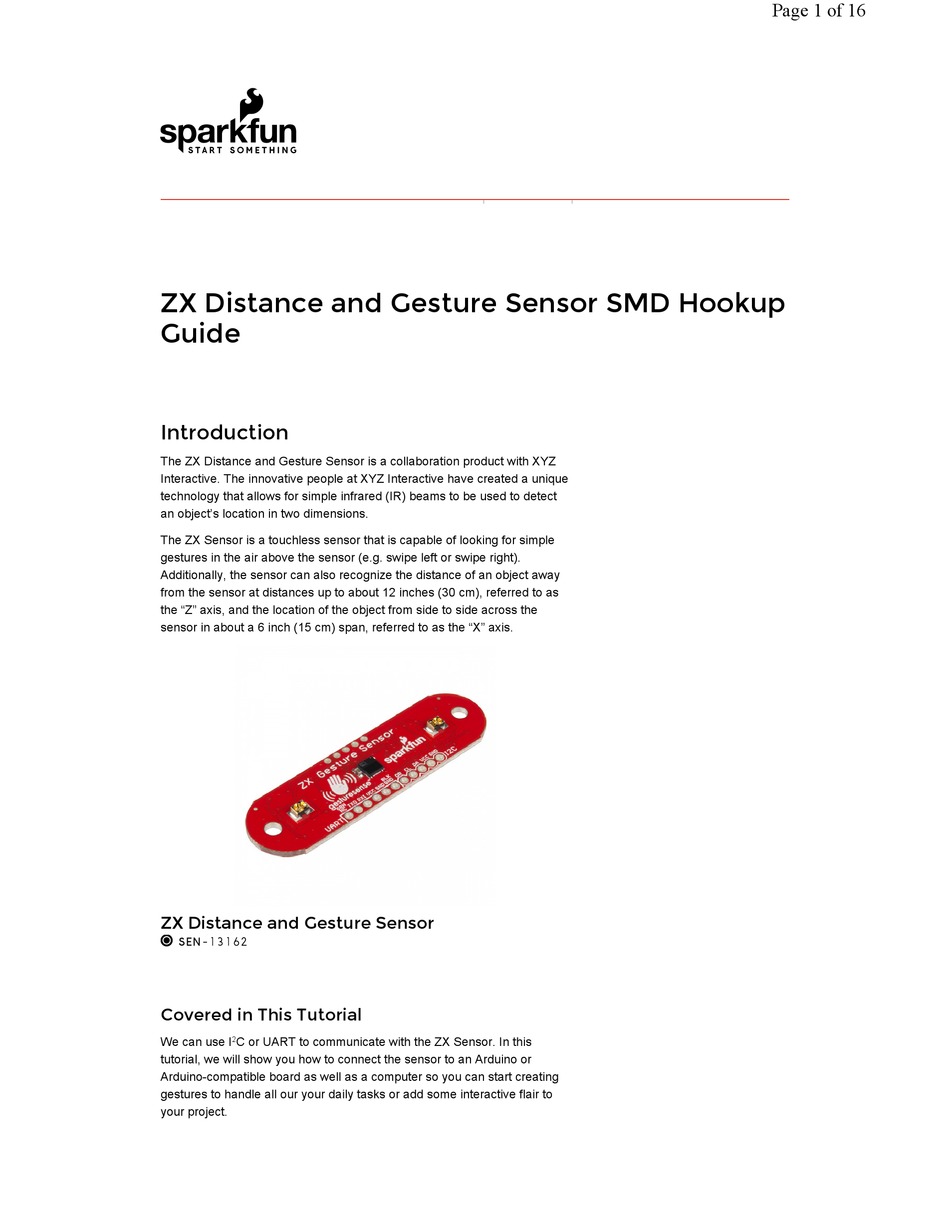

Page 1 of 16
ZX Distance and Gesture Sensor SMD Hookup
Guide
Introduction
The ZX Distance and Gesture Sensor is a collaboration product with XYZ
Interactive. The innovative people at XYZ Interactive have created a unique
technology that allows for simple infrared (IR) beams to be used to detect
an object's location in two dimensions.
The ZX Sensor is a touchless sensor that is capable of looking for simple
gestures in the air above the sensor (e.g. swipe left or swipe right).
Additionally, the sensor can also recognize the distance of an object away
from the sensor at distances up to about 12 inches (30 cm), referred to as
the "Z" axis, and the location of the object from side to side across the
sensor in about a 6 inch (15 cm) span, referred to as the "X" axis.
ZX Distance and Gesture Sensor
 SE N-1316 2
Covered in This Tutorial
We can use I C or UART to communicate with the ZX Sensor. In this
2
tutorial, we will show you how to connect the sensor to an Arduino or
Arduino-compatible board as well as a computer so you can start creating
gestures to handle all our your daily tasks or add some interactive flair to
your project.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZX Distance and Gesture Sensor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for sparkfun ZX Distance and Gesture Sensor

Summary of Contents for sparkfun ZX Distance and Gesture Sensor

  • Page 1 ZX Distance and Gesture Sensor SMD Hookup Guide Introduction The ZX Distance and Gesture Sensor is a collaboration product with XYZ Interactive. The innovative people at XYZ Interactive have created a unique technology that allows for simple infrared (IR) beams to be used to detect an object’s location in two dimensions.

  • Page 2: Materials Used

    SparkFun Wish List ZX Distance and Gesture Sensor SEN-13162 The ZX Distance and Gesture Sensor is a touchless sensor that is ca… SparkFun RedBoard - Programmed with Arduino DEV-13975 At SparkFun we use many Arduinos and we're always looking for the…...

  • Page 3: Board Overview

    Page 3 of 16 • How to Install FTDI Drivers – If you are programming an Arduino or using the ZX Sensor demo app, chances are you will need to use an FTDI Board Overview The ZX Sensor works by bouncing infrared (IR) beams of light from the two LEDs on either side off of an object above the sensor.

  • Page 4: Hardware Hookup

    Page 4 of 16 Open 0x10 Closed 0x11 Hardware Hookup Add Headers Solder a row of male headers to the nine headers holes on the board. To keep the board from tilting while soldering, place the unused break away headers sideways under the board. Heads up! Do not solder headers to the row of holes at the top of the board.
  • Page 5 D O W N L O A D T H E Z X S E N S O R AR D U I N O LI B R AR Y ! Unzip the downloaded file. Follow this guide on installing Arduino libraries to install the files as an Arduino library. https://github.com/sparkfun/SparkFun_ZX_Distance_and_Gesture_Sensor_Arduino_Library/archive/master.zip...
  • Page 6 Page 6 of 16 Arduino: ZX Example Load the ZX Demo Open up the Arduino program and select File → Examples → SparkFun_ZX_Distance_and_Gesture_Sensor → I2C_ZX_Demo. Attach a USB mini cable from your computer to the RedBoard. If you have not previously done so, install the FTDI drivers. For reference, here is the I2C_ZX_Demo.ino sketch.
  • Page 7      5V           VCC              Power       GND          GND              Ground       A4           DA               I2C Data       A5           CL               I2C Clock      Resources:      Include Wire.h and ZX_Sensor.h      Development environment specifics:      Written in Arduino 1.6.3      Tested with a SparkFun RedBoard      This code is beerware; if you see me (or any other SparkFu n       employee) at the local, and you've found our code helpfu l, please      buy us a round!      Distributed as­is; no warranty is given.      ********************************************************** ******/ #include <Wire.h> #include <ZX_Sensor.h> // Constants const int ZX_ADDR = 0x10;  // ZX Sensor I2C address // Global Variables     ZX_Sensor zx_sensor = ZX_Sensor(ZX_ADDR);     uint8_t x_pos;      uint8_t z_pos;  void setup() {       uint8_t ver;  // Initialize Serial port       Serial.begin(9600);       Serial.println();       Serial.println("­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­");       Serial.println("SparkFun/GestureSense ­ I2C ZX Demo");       Serial.println("­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­"); // Initialize ZX Sensor (configure I2C and read model I...
  • Page 8 Page 8 of 16 if ( zx_sensor.init() ) {         Serial.println("ZX Sensor initialization complete");       } else {         Serial.println("Something went wrong during ZX Sensor  init!");       }  // Read the model version number and ensure the library  will work       ver = zx_sensor.getModelVersion(); if ( ver == ZX_ERROR ) {         Serial.println("Error reading model version number");       } else {         Serial.print("Model version: ");         Serial.println(ver);       }  if ( ver != ZX_MODEL_VER ) {         Serial.print("Model version needs to be ");         Serial.print(ZX_MODEL_VER);         Serial.print(" to work with this library. Stopping."); while(1);       }  // Read the register map version and ensure the library  will work       ver = zx_sensor.getRegMapVersion(); if ( ver == ZX_ERROR ) {         Serial.println("Error reading register map version num ber");...
  • Page 9 Page 9 of 16 Click the Upload button and wait for the program to finish uploading to the Arduino. Select Tools → Serial Monitor to open up the serial terminal. More info on the Serial Terminal can be found here. Note that the Serial Monitor settings are the default settings (9600, 8, n, 1).
  • Page 10 Page 10 of 16 Here is the I2C_Gesture_Interrupt.ino sketch for reference.
  • Page 11 Page 11 of 16 /************************************************************* ***  I2C_Gesture_Interrupt.ino  XYZ Interactive ZX Sensor  Shawn Hymel @ SparkFun Electronics  May 6, 2015  https://github.com/sparkfun/SparkFun_ZX_Distance_and_Gesture_S ensor_Arduino_Library  Tests the ZX sensor's ability to read gesture data over I2C us ing   an interrupt pin. This program configures I2C and sets up an  interrupt to occur whenever the ZX Sensor throws its DR pin hi gh.  The gesture is displayed along with its "speed" (how long it t akes  to complete the gesture). Note that higher numbers of "speed"  indicate a slower speed.  Hardware Connections:   Arduino Pin  ZX Sensor Board  Function   ­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­   5V           VCC              Power   GND          GND              Ground   A4           DA               I2C Data   A5           CL               I2C Clock   2            DR               Data Ready  Resources:  Include Wire.h and ZX_Sensor.h  Development environment specifics:  Written in Arduino 1.6.3  Tested with a SparkFun RedBoard  This code is beerware; if you see me (or any other SparkFun   employee) at the local, and you've found our code helpful, ple ase  buy us a round!  Distributed as­is; no warranty is given.  ************************************************************** #include <Wire.h>...
  • Page 12 Page 12 of 16 // Initialize Serial port   Serial.begin(9600);   Serial.println();   Serial.println("­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­ ­");   Serial.println("SparkFun/GestureSense ­ I2C Gesture Interrup t");   Serial.println("Note: higher 'speed' numbers mean slower");   Serial.println("­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­­ ­"); // Initialize ZX Sensor (configure I2C and read model ID) if ( zx_sensor.init(GESTURE_INTERRUPTS) ) {     Serial.println("ZX Sensor initialization complete");   } else {     Serial.println("Something went wrong during ZX Sensor ini t!");   }  // Read the model version number and ensure the library wil l work   ver = zx_sensor.getModelVersion(); if ( ver == ZX_ERROR ) {     Serial.println("Error reading model version number");   } else {     Serial.print("Model version: ");     Serial.println(ver);   }  if ( ver != ZX_MODEL_VER ) {     Serial.print("Model version needs to be ");...
  • Page 13 Page 13 of 16 // Clear the interrupt flag     interrupt_flag = false; // You MUST read the STATUS register to clear interrupt!     zx_sensor.clearInterrupt(); // Read last gesture     gesture = zx_sensor.readGesture();     gesture_speed = zx_sensor.readGestureSpeed(); switch ( gesture ) { case NO_GESTURE:         Serial.println("No Gesture"); break; case RIGHT_SWIPE:         Serial.print("Right Swipe. Speed: ");         Serial.println(gesture_speed, DEC); break; case LEFT_SWIPE:         Serial.print("Left Swipe. Speed: ");         Serial.println(gesture_speed, DEC); break; case UP_SWIPE:         Serial.print("Up Swipe. Speed: ");         Serial.println(gesture_speed, DEC); break;       default:  break;     }    }  }  void interruptRoutine() {   interrupt_flag = true;...

  • Page 14: Supported Gestures

    Page 14 of 16 If you performed the gesture correctly, you should see a message appear in the Serial Monitor. NOTE: The "Speed" of the gesture is a measure of how fast the gesture occurred. Note that the lower the number, the faster the gesture occurred (e.g.
  • Page 15 Page 15 of 16 Setup Connect the FTDI Breakout board to the ZX Sensor. Ensure the pins on the FTDI Brekaout line up with the pins on the ZX Sensor (e.g. GRN connects to GRN and BLK connects to BLK). Connect the FTDI Breakout to your computer with a USB cable.
  • Page 16 Make bright, colorful displays using Guide the 32x32 and 32x16 RGB LED Getting started guide for the Avago panels. This hookup guide shows APDS-9960 color, proximity, and how to hook up these panels and gesture sensor. control them with an Arduino. https://learn.sparkfun.com/tutorials/zx-distance-and-gesture-sensor-smd-hookup-guide?_ga... 6/6/2017...
