CONNECTION TO INTERNET

The supplied Wi-FI hub will need to be connected to the internet
via either an Ethernet cable between a router and the hub or via
Wi-Fi.
10.3.1 USE THE ECONET CONFIGURATION WIZARD
The ecoNET configuration wizard is either accessed via the
System configuration creator (on first power on) or from the user
settings menu (Refer to Section 7.9).
After you have begun the configuration wizard:
1. Tap '>' to confirm to proceed.
2. Follow the steps displayed to connect the Wi-Fi hub to
the wiring centre (if this has not already been done) and tap
'>' to confirm.
3. The touchscreen display will confirm if the Wi-Fi hub has
been successfully connected. Tap '>' to proceed.
4. Select your preferred connection method:
• Ethernet - Ethernet cable connection between router
and Wi-Fi hub.
• Wi-Fi - Wireless connection between router and Wi-Fi
hub.
If ethernet selected:
5. Follow the steps displayed to connect the ethernet cable to
the Wi-Fi hub (if this has not already been done) and tap '>'
to confirm connection.
6. The smart controller will automatically perform a test for
connection status to the ecoNET external server. The
touchscreen will display confirmation connection once this
has been made.
If Wi-Fi selected:
5. Fill in required information by tapping boxes to open
on-screen keyboard to input.
• SSID - Name for the Wi-Fi network the hub is
required to connect to.
• Password - Password to access the Wi-Fi network.
• Type of Security - Wi-Fi security protocol the router
uses. WPA 2 is the most commonly utilised.
! NOTE !
Take care to tap '8 ' to confirm input parameters via the
on-screen keyboard. To go back tap ' '
6. Tap 'PERFORM A CONNECTION TEST' to test for
connection status to the ecoNET external server. The
touchscreen will display confirmation connection once this
has been made.
! NOTE !
It may take time to authenticate a Wi-Fi connection. Allow
time for IP address synchronisation with the router (Up to 5
minutes if first attempt to connect fails).
10.3.1.2 WI-FI MANUAL CONFIGURATION
To configure Wi-Fi access manually, navigate to the user settings
menu and select the Radio Icon (Refer to Section 7.9).
1. Tap 'Wi-Fi setting'.
2. Enter the required information by tapping each box to
display the on-screen keyboard to input.
• SSID - Name for the Wi-Fi network the hub is
required to connect to.
• Password - Password to access the Wi-Fi.
• Type of Security - Wi-Fi security protocol the router
uses. WPA 2 is the most commonly utilised.
! NOTE !
The wireless router is only compatible with a 2.4GHz
wireless signal.
Section 10: Wi-Fi Hub
10.3.2 HOW TO CHECK CONNECTION STATUS
Follow the steps to check the connection status with ecoNET24
services on the touchscreen display.
1. When the heating circuit control interface is shown (see
Figure 7-1), tap settings menu. Refer to Table 7-1 and Figure
10-4.

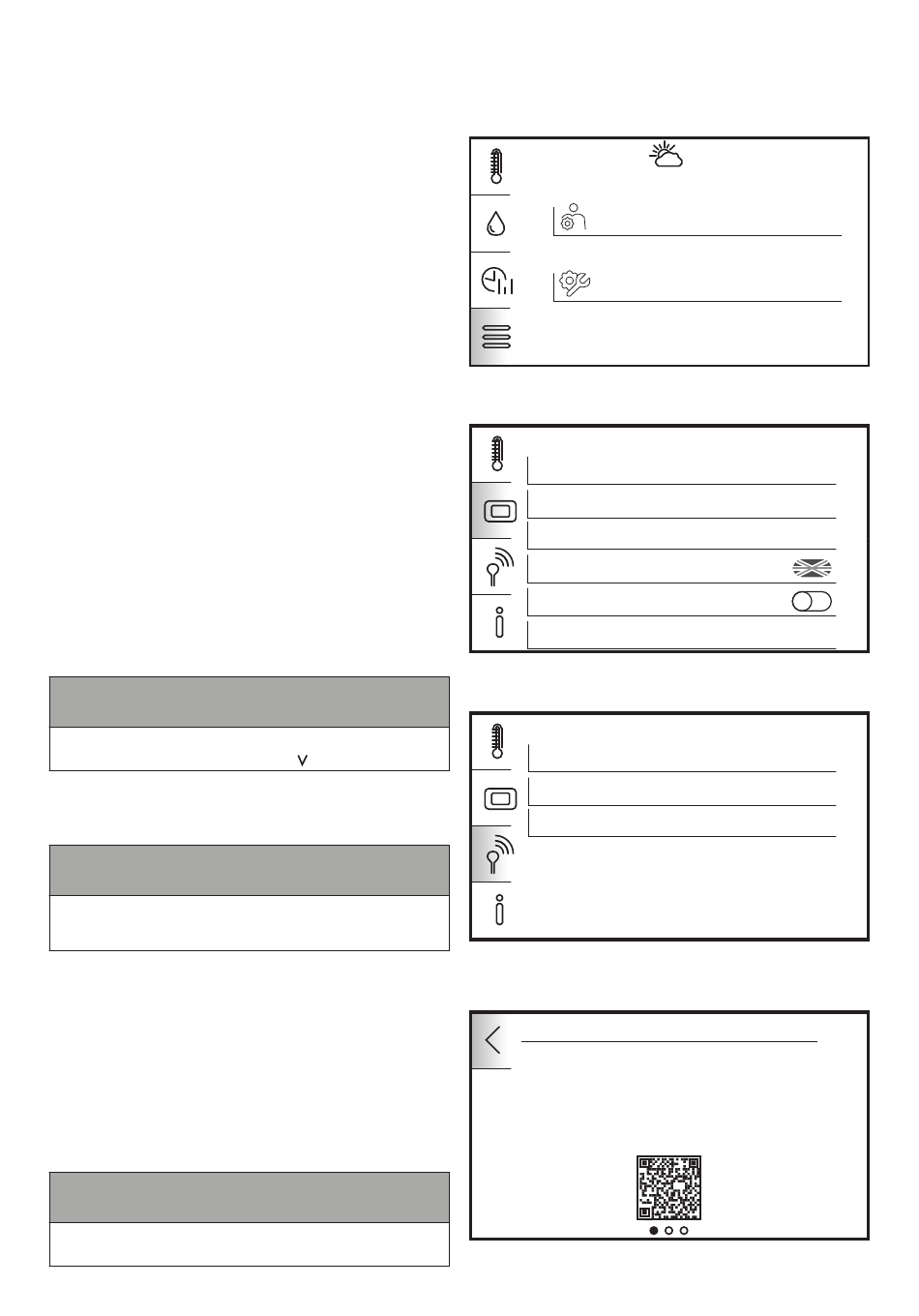

Figure 10-4: Settings selection
2. Tap 'USER SETTINGS'. Refer to Figure 10-5.
User settings
Time
Date
Panel address
Language
Parental lock
Screen brightness
Figure 10-5: User settings menu
3. Tap the Wi-Fi icon on the left. Refer to Figure 10-6.
User settings
ecoNET configuration wizard
ecoNET status
Wi-Fi settings
Figure 10-6: ecoNET connection options.
4. Tap 'ECONET STATUS'. Refer to Figure 10-7 for connection
status display.
ecoNET status
Connection with controller
Connection with server
UID
Figure 10-7: ecoNET connection status
---
User settings
Service settings
04.10.2024
100
100%
Connected
Connected
12ABCDE345FGH678JK9LMN
