CHINT NJG2 Operation Manual page 7

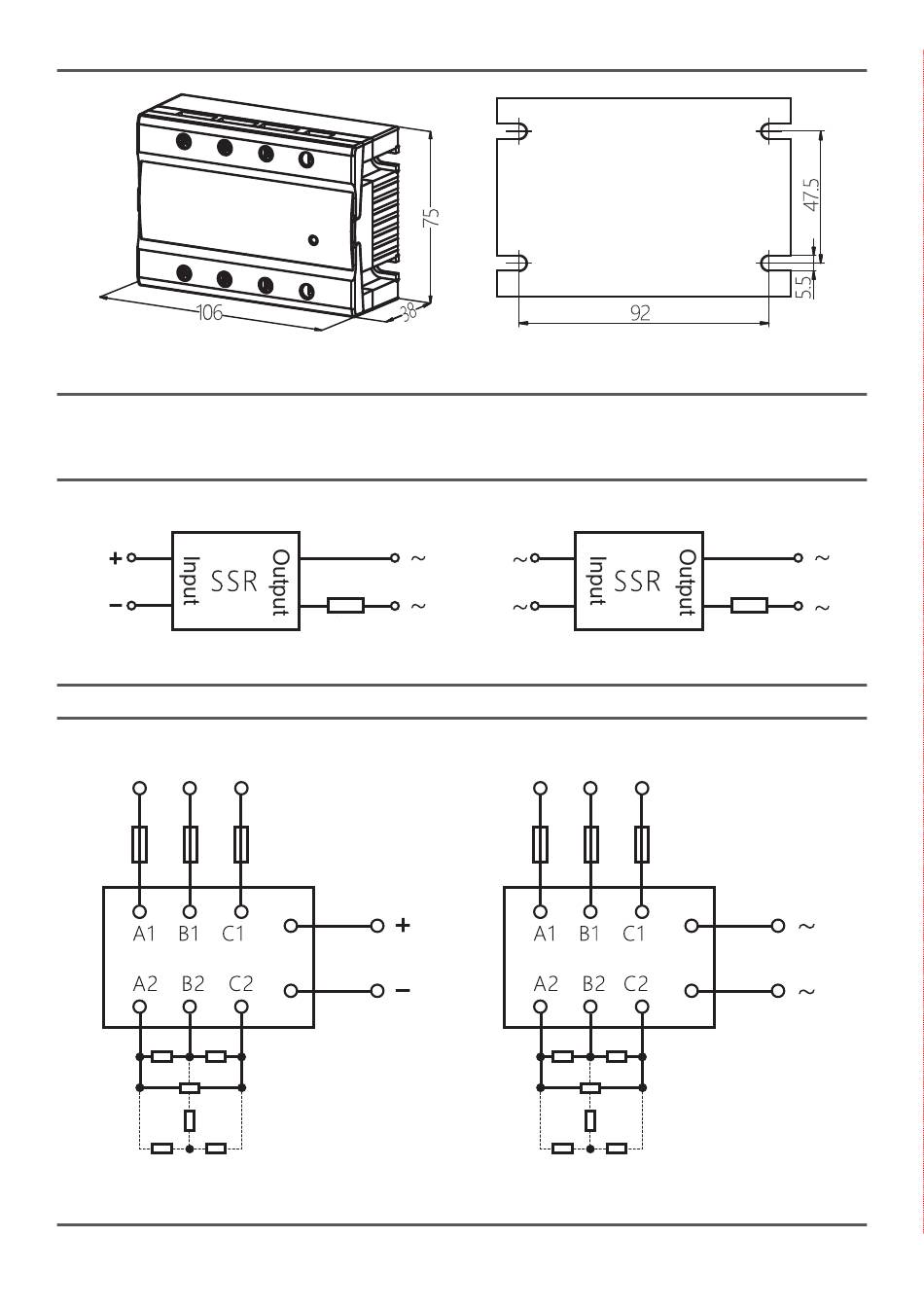

Figure 2: Three-phase SSR
For the wiring diagrams for different applications, please refer to Figure 3, 4 and 5.
DC-to-AC (D/A)
AC-to-AC (A/A)
Load Power Control Power Load Power
Control Power
Load Load
Figure 3: Wiring Diagram for AC SSR
Load Power Load Power
Control Power Control Power
Figure 4: Wiring Diagram for Three-phase SSR
07
