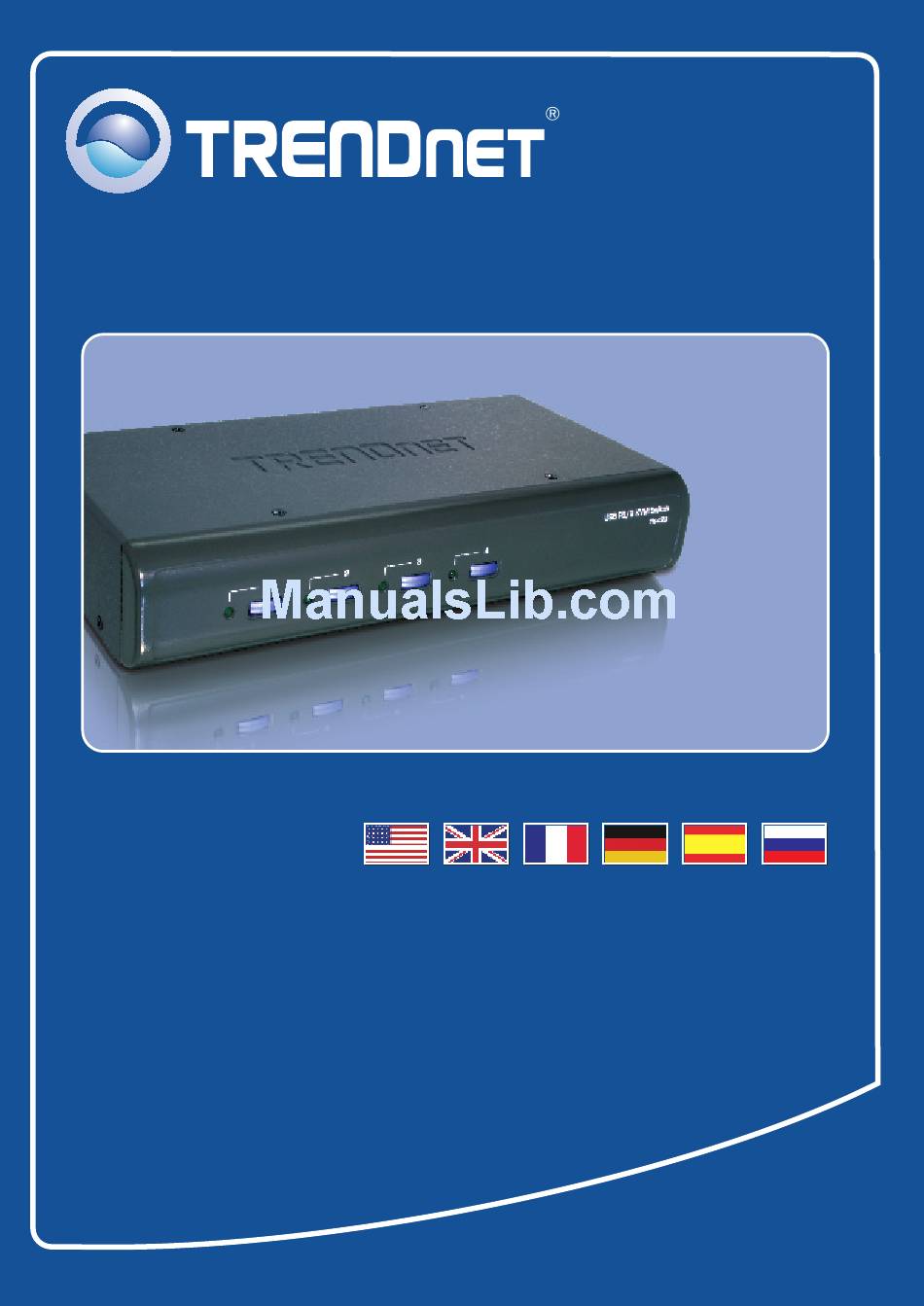

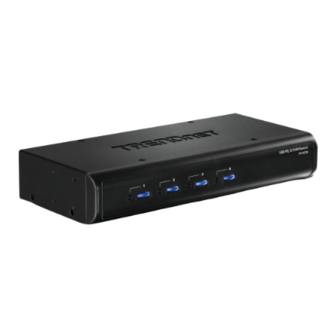

- Page 1 Quick Installation Guide TK-423K...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ..................... 1. Before You Start ................2. How to Install ..................3. Operation ................... Specifications .................... Troubleshooting ..................Version 09.02.2008... -
Page 3: English
1. Before You Start Package Contents TK-423 Quick Installation Guide AC Power Adapter (5V DC, 2A) 4 sets of KVM Cables System Requirements PS/2 or USB Keyboard PS/2 or USB Mouse VGA Compatible Monitor KVM cables Windows 98SE/ME/2000/2003 Server/Vista, Linux, and Netware. Application 4-Port USB PS/2 Audio KVM Switch Kit... -
Page 4: How To Install
2. How to Install 1. Turn OFF all computers and their peripherals, and then disconnect all power cords. 2. Connect the shared PS/2 or USB keyboard, monitor, PS/2 or USB mouse, speakers (optional) and microphone (optional) to the KVM switch's Console Port. Connecting to USB Computer To KVM 3. - Page 5 Connecting to PS/2 Computer 4. Connect the USB to PS/2 mouse adapter to the USB connector. 5. Use the KVM cables to connect your PC to the KVM Switch. To Mouse To Keyboard Port Port To VGA port To Computer via PS/2 6.
-
Page 6: Operation
3. Operation Note: To switch between computers, you can use the front-panel push buttons or the Hot Key commands. LED Indicators Green LED light: Indicates the selected PC port is active, whether the computer is turned on or off. Push Buttons Press the push buttons to switch between computers. - Page 7 Quick Reference Sheet for TK-423 Front-Panel Hot-Keys Description Command Buttons Press the Push Button for a specific port to ScrLk ScrLk Select the active PC channel Select PC switch to that port Press the Push Button ScrLk ScrLk Select the next lower PC for a specific port to Next lower channel connected channel...
-
Page 8: Specifications
Specifications Management: 4 computers 1 x USB keyboard Type A 1 x USB mouse Type A 1 x PS/2 keyboard 6-pin mini din female 1 x PS/2 mouse 6-pin mini din female Console Port Connectors: 1 x VGA HDB 15-pin female 1 x 3.5mm audio in/out jack 1 x 3.5mm microphone in/out jack 4 x VGA HDB 15-pin female... -
Page 9: Troubleshooting
You can switch computers by pressing the Push Buttons on the KVM switch or using the Hot Key commands. Go to Section 3 Operation for more information. If you still encounter problems or have any questions regarding the TK-423K, please contact Trendnet’s Technical Support Department. - Page 10 TK-423 - 2-Year Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
- Page 11 PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDnet'S PRODUCTS. TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY...
- Page 12 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 13 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
