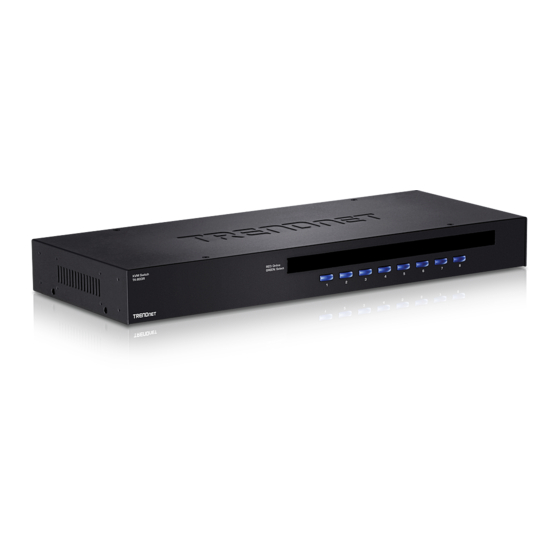

- Page 1 Quick Installation Guide TK-804R TK-1604R...
-
Page 2: Table Of Contents
Table of Contents Table of Contents English ... 1. Before You Start 2. How to Install ... 3. Operation ... Technical Specifications ... Troubleshooting ... Version 05.07.2007... -
Page 3: English
Keyboard Daisy-Chain Monitor USB or PS/2 USB or PS/2 Keyboard Mouse Daisy-Chain TK-804R/TK-1604R Quick Installation Guide Rack-Mount kit AC Power Adapter (9V DC, 1A) Daisy-Chain Cable (HDB 15-pin male to female) Daisy-Chain Terminator (HDB 15-Pin male) Firmware Cable (HDB 15-pin... -
Page 4: How To Install
2. Connect the shared PS/2 or USB keyboard, monitor, and PS/2 or USB mouse to the KVM switch's Console Port. (TK-804R shown) 3. Connect the included AC Power Adapter to the KVM switch and then to a power outlet. - Page 5 2. You can only daisy-chain the KVM switch with another TK-804R or TK-1604R. 3. You can daisy-chain up to 8 TK-804 or TK-1604 KVM switches. There is a maximum of 64 (TK-804R) or 128 (TK-1604R) computer connections. 1. Connect one end of the provided daisy-chain cable to the Daisy- Chain OUT port on the first (master) KVM switch.
- Page 6 3. If you have a third KVM switch, connect one end of the daisy-chain to the Daisy-Chain OUT port on the second KVM switch. Then connect the opposite end of the daisy-chain cable to the Daisy- Chain IN port on the third (slave) switch.
-
Page 7: Rack Mount
The KVM Switch can be mounted in an EIA standard-size 19-inch rack, which can be placed in a wiring closet with other equipment. Note: If you would like to mount the KVM switch to a EIA 19” equipment rack, install the included mounting brackets to the sides of the KVM switch, secure... -
Page 8: Operation
Indicates the sequence of the KVM switch when daisy-chained. Red LED light: KVM cable is connected and PC is powering the KVM switch. Green LED light: Indicates the selected PC port is active, whether the computer is turned on or off. - Page 9 After pressing the ScrLk key, you have 2 seconds to press the ScrLk key again. You then have another 2 seconds to press a command key. A beep confirms that the KVM switch is in "Hot-Key" mode. If you do not press a key within 2 seconds, the switch will exit hot-key mode.
- Page 10 English...
- Page 11 English...
- Page 12 English...
-
Page 13: Technical Specifications
Operating Temperature: Storage Temperature: Humidity: Certifications: TK-804R: 8 computers TK-1604R: 16 computers 1 x USB keyboard Type A 1 x USB mouse Type A 1 x PS/2 keyboard 6-pin mini din female 1 x PS/2 mouse 6-pin mini din female... -
Page 14: Troubleshooting
Does the keyboard and mouse have to be the same type (e.g. USB or PS/2)? One device can be USB while the other device is PS/2. If you still encounter problems or have any questions regarding the TK-804R/TK-1604R, please contact TRENDnet's Technical Support Department. - Page 15 TK-804R/TK-1604R - 2-Year Warranty If a product does not operate as warranted above during the applicable warranty period, TRENDnet shall, at its option and expense, repair the defective product or part, deliver to customer an equivalent product or part to replace the defective item, or refund to customer the purchase price paid for the defective product.
- Page 16 PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDnet'S PRODUCTS. TRENDnet SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY...
- Page 17 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 18 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 20675 Manhattan Place Torrance, CA 90501 Copyright ©2007. All Rights Reserved. TRENDnet.
