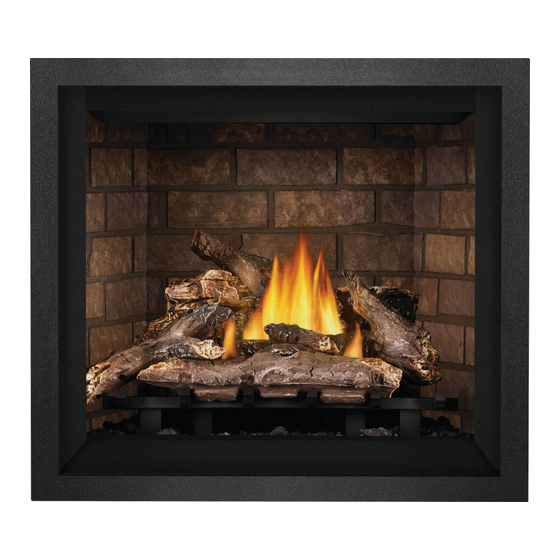

Napoleon E36 Instructions

INSTALLER: THESE INSTRUCTIONS ARE TO REMAIN WITH THE HOME OWNER.
CHECK THE BOXES TO INDICATE THAT THE CORRESPONDING STEPS HAVE BEEN COMPLETED.
Kit W175-0747, Natural Gas to Propane Includes;
1 W100-0301, BURNER (P)
1 W530-0032, REGULATOR
1 W456-0053, BURNER ORIFICE #53
1 W455-0049, PILOT INJECTOR (P)
1 W385-0075, CONVERSION DATA LABEL
Kit W175-0750, Natural Gas to Propane Includes;
1 W100-0301, BURNER (P)
1 W530-0032, REGULATOR
1 W456-0052, BURNER ORIFICE #52
1 W455-0049, PILOT INJECTOR (P)
1 W385-0075, CONVERSION DATA LABEL
WARNING
!
This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer's instructions and all applicable
codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire,
explosion, or production of carbon monoxide may result causing property damage, personal injury, or loss of life. The qualified
service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the
converted appliance is checked as specified in the owner's instructions suppled with this kit.
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this
appliance may result in property damage or personal injury.
CAUTION: Before proceeding with conversion, shut off gas supply and disconnect electrical power.
1. Remove safety barrier, door, and logs from appliance.
2. Remove the four (4) screws securing the burner assembly in place
(Fig. 1).
3. Slide the burner assembly to the right and lift. Care
must be taken to ensure the air shutter rod is attached
(Fig. 2).
4. Using a deep socket, remove the main burner
orifice. Replace with the orifice supplied.
5. Remove the two (2) screws securing the pilot in
place (Fig. 1). Using a backup wrench, remove the
pilot tube from the bottomside of the pilot (Fig. 3).
Remove the pilot orifice and replace with the one
supplied. Reattach the pilot tube and pilot to the
bracket.
6. Replace and re-secure the burner assembly,
ensuring that the venturi fits over the burner orifice
and the air shutter rod is secured and sealed.
7. To convert the main valve, follow the instructions
that are supplied with the regulator assembly kit.
8. The conversion data label must be filled out and
attached adjacent to the valve.
9. Turn on the gas supply and check for gas leaks by brushing on a soap
and water solution. Do not use open flame.
10. Replace the media. Then light the pilot and main burner to ensure that
the gas lines have been purged.
11. Re-secure the door. Turn on the electrical supply to the appliance.
Purge all gas lines with the glass door open.
Assure that a continuous flow is at the burner before closing the door.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada
FUEL CONVERSION KIT FOR MODELS
These kits are for use at altitudes of 0 to 4500 feet.
(C)E36
(C)E42
(C)E36 / (C)E42
Kit W175-0748, Propane to Natural Gas Includes;
1 W100-0300, BURNER (NG)
1 W530-0033, REGULATOR
1 W456-0040, BURNER ORIFICE #40
1 W455-0071, PILOT INJECTOR (NG)
1 W385-0075, CONVERSION DATA LABEL
Kit W175-0749, Propane to Natural Gas Includes;
1 W100-0300, BURNER (NG)
1 W530-0033, REGULATOR
1 W456-0038, BURNER ORIFICE #38
1 W455-0071, PILOT INJECTOR (NG)
1 W385-0075, CONVERSION DATA LABEL
Burner
Assembly
1(866)820-8686
(C)E36
(C)E42
Air Shutter
Rod
Pilot
Fig. 1
PILOT
ORIFICE
Fig. 3
www.napoleon.com
Fig. 2
W415-3005 / 02.11.21
