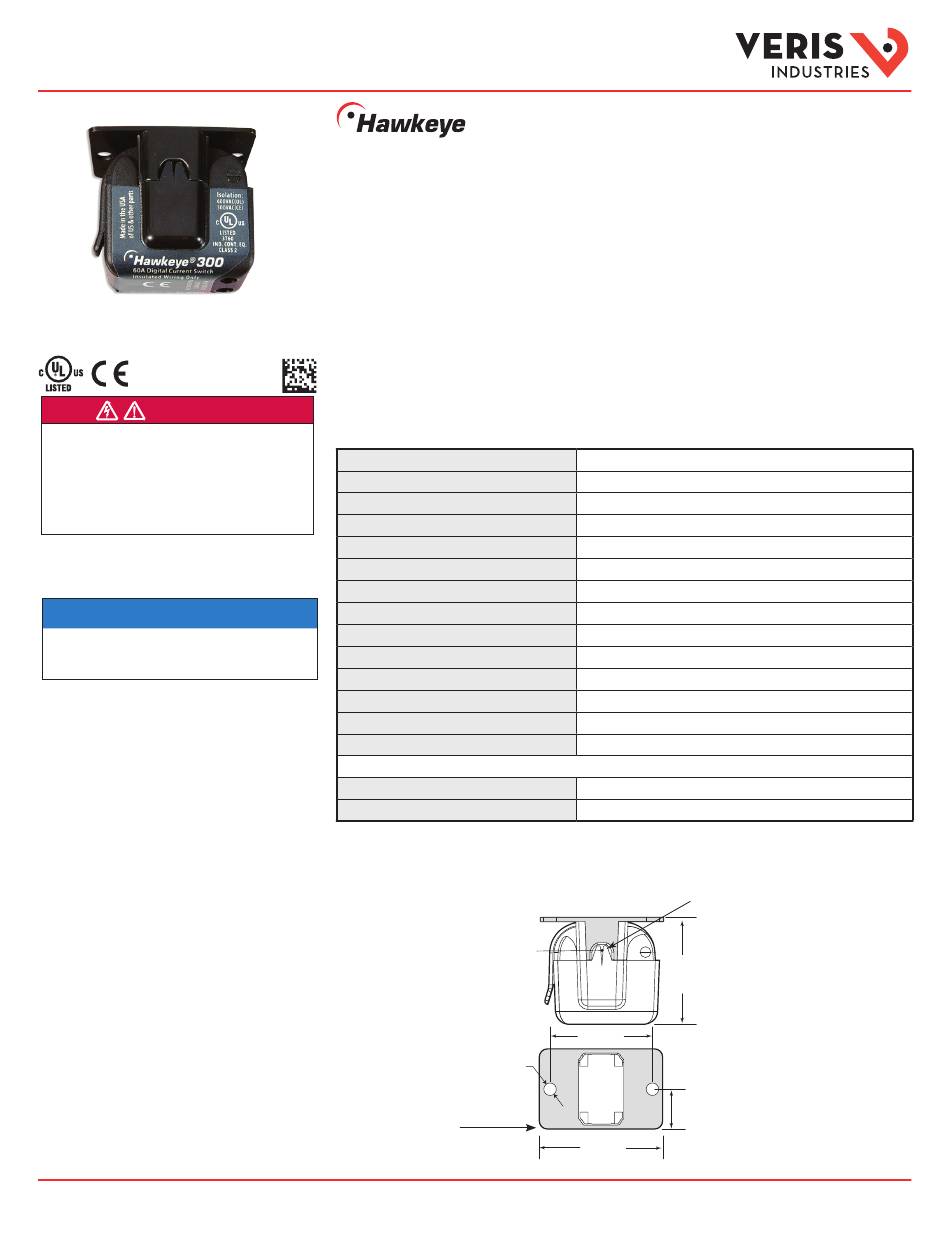

Veris Industries Hawkeye H300 Installation Manual

Installation Guide
Current Monitoring
US Patent 7,193,428
(other patents pending)
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
A qualified person is one who has skills and knowledge related to the construction and
operation of this electrical equipment and the installation, and has received safety
training to recognize and avoid the hazards involved.
No responsibility is assumed by Veris Industries for any consequences arising out of the
use of this material.
NOTICE
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
Z205622-0C Page 1 of 2
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Micro Split-Core On/Off Current Switch
Product Overview
The H300 is a current-sensitive switching device that monitors current (amperage) in the conductor passing
through it. A change in amperage in the monitored conductor that crosses the switch threshold causes the
resistance of the FET status output to change state, similar to the action of a mechanical switch. In this model, the
threshold is fixed at 150 mA AC max. The status output is suitable for connection to building controllers, or other
appropriate data acquisition equipment operating at up to 30 volts. The H300 requires no external power supply to
generate its output.
Specifications
NEC Article 100
Terminal Block Max. Wire Size
For CE compliance, conductor shall be insulated according to IEC 61010‑1.
Product design provides for functional insulation only.
Dimensions
Push to
"lock" in
place
©2019 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
Other companies' trademarks are hereby acknowledged to belong to their respective owners.
TM
H300
Sensor Power Induced from the monitored conductor
Amperage Range 0.15 to 60 A continuous
Status Output Ratings N.O. 1.0 A @ 30 Vac/dc not polarity sensitive
Insulation Class 600 Vac RMS (UL); 300 Vac (CE)
Setpoint Fixed at 0.15 A max. (60 Hz)
Frequency Range
50/60 Hz
Temperature Range
-15 to 60 °C (5 to 140 °F)
Humidity Range
10-90% RH non-condensing
Hysteresis 10% typical
Off State Resistance Open switch represents 1+ MΩ
On State Resistance Closed switch represents <200 mΩ
16 to 22 AWG (1.3 to 0.3 mm
Terminal Block Torque 7 in-lb (0.8 N-m)
Mounting Location Not suitable for wet locations. For indoor use only.
COMPLIANCE INFORMATION
Agency Approvals UL508, CE: EN61010-1
Installation Category Cat. III, pollution degree 2
Removable Mounting Bracket
0.3"
(8 mm)
6 AWG max.
1.5"
(38 mm)
Ø 0.18" (x2)
(5 mm)
1.8"
(46 mm)
)
2
Self-gripping Iris
1.6"
(40 mm)
0.6"
(15 mm)
TM
0619
