Installing the M951 system on the helmet

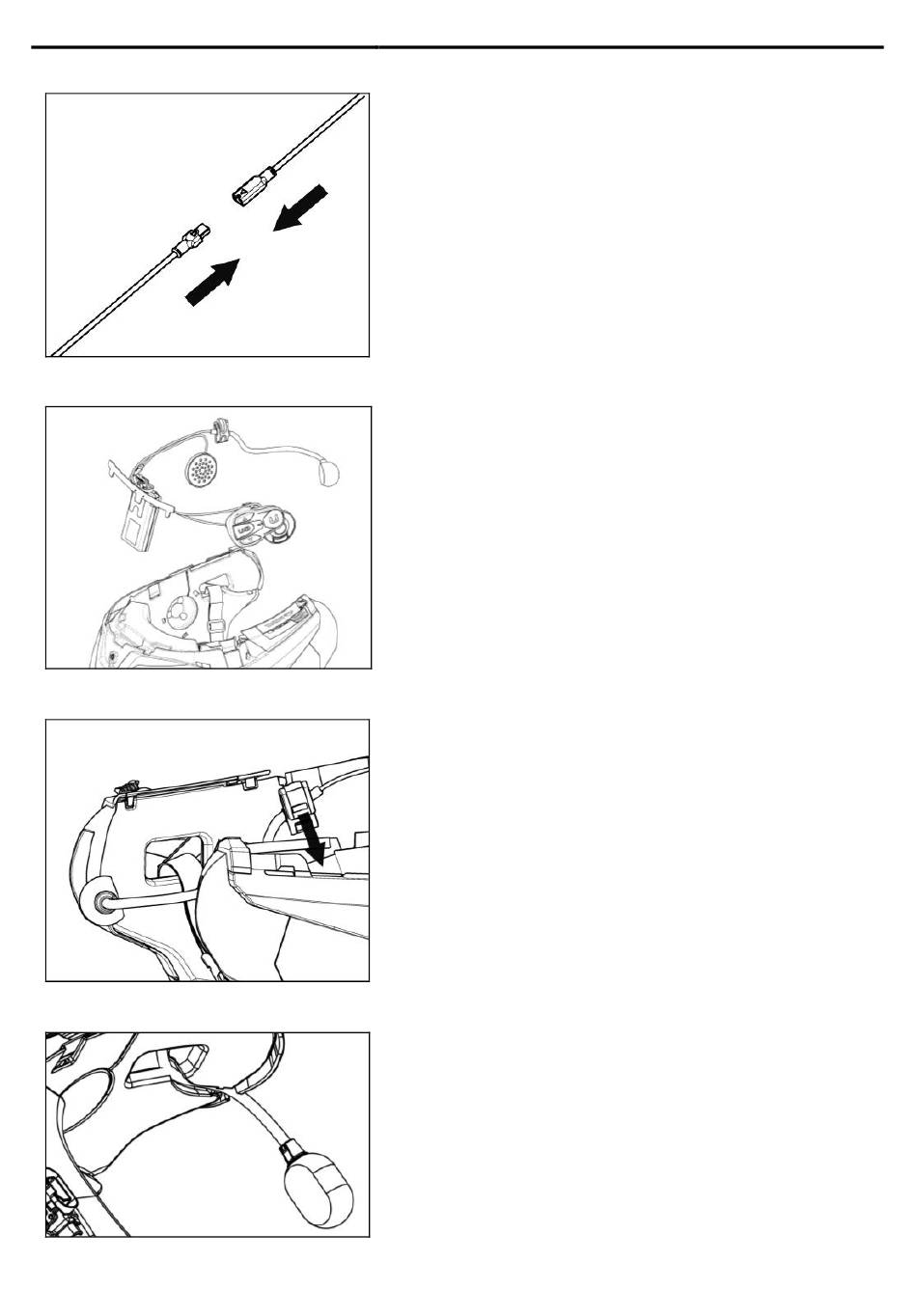

Fig. 2
Fig. 3
Fig. 4
Fig. 5
 Hook up the microphone connector to the
other end, following the directions of the
arrows (Fig. 2).
N.B.: You can adjust the position of the
microphone. For instructions on how to do this,
please see chapter. 3.2.
 Place the system in the special housing in the
back of the helmet, pushing it all the way
into the groove (Fig. 3).
 Fold the antenna back inside the shell.
N.B.: For positioning of the wiring and of the
microphone in the N100-5 helmet, follow the
instructions provided in the dedicated box.
 Fix the cable inside the helmet and make
sure the right fixing clip snaps into its
housing (Fig. 4).
 Position the microphone in the housing on
the right of the helmet, inserting the metal
boom in the groove found in the chin guard
coupling frame (Fig. 5).
Caution: make sure that the side of the
microphone support with the writing "n" is
facing inward.
