- Page 1 2020 EXMARK DEALER SERVICE SCHOOLS COMMERCIAL 30 X-SERIES...

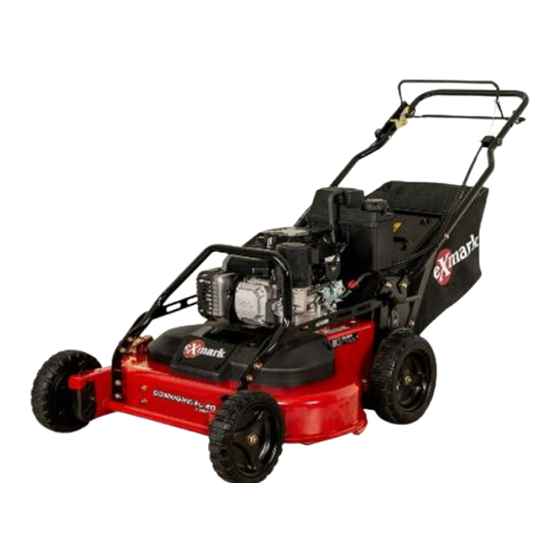

- Page 2 COMMERCIAL 30 X-SERIES The Commercial 30 X-Series is Equipped with a Larger Displacement Engine and a New Transmission Coupled with Several Drive Component Improvements. These Advances Allow the Commercial 30 X-Series to Handle the Toughest Terrain and Conditions while Remaining in a Small Walk-Power-Mower Package.
- Page 3 What We Will Cover Picture place holder Bigger Engine HD Transmission Parking Brake Introducing a Large HD transmission for new X Understanding of parking brake on 30” walkbehind. displacement commercial Series EC30. engine. With the increase weight of Offering a no slip drive Customer asking for higher system.
- Page 4 Comm. 30 X-Series: A New Product Product Overview X-Series vs. S-Series...
- Page 5 S-SERIES VS. NEW X-SERIES SPECS. Specification S-Series X-Series Model ECS180CKA30000 ECX200CKC30000 Engine Kawasaki Kohler Transmission Variable Speed Single Speed 1 gallon 1 gallon Fuel Tank Park Brake Compliance 50 State 50 State Speed 4.2 mph 3.8 mph Weight 170 lbs 186 lbs...
- Page 6 Major Changes: Component Upgrades Kohler CV200 702 Transmission Park Brake Operation/Adjustment Other Improvements...
- Page 7 NEW ENGINE KOHLER CV200 3 Year Warranty, Per Kohler 9.5 Ft-lbs. Torque Dual – Splash and Pressure Lube with Filter Mess-free Oil Filter Change with Drain Hose Oil Drain Plug Air Filter / Latching Clips ...
- Page 8 502 VS 702 TRANSMISSION Output torque vs Clutch force MV 702 MV 502...
- Page 9 NEW 702 TRANSMISSION...
- Page 10 NEW 702 TRANSMISSION Positive Output Engagement with Short Throw Gear Reduction for Increased Torque 15mm Output Shaft Diameter Single Speed Transmission\ No Variable Speed Slowed down 3.8mph Ground Speed Will hold up to hillside use ...
- Page 11 COMMERCIAL X 30 PARK BRAKE Cable Operated Parking Brake Brake Rotor Mounted to Axle Shaft Park Brake Only on Left Axle Auto-Disengagement when Transmission Bail is Actuated Park Brake Addition Due to Weight of Transmission and Engine ...
-
Page 12: Park Brake Adjustment
PARK BRAKE ADJUSTMENT Brake Adjustment is Simple and Straightforward - Loosen Adjustment Nut (2) and Slide Cable Toward Engine for Increased Tension and Away from Engine for Less Brake Tension NOTE: Make Adjustments in Small Increments to Avoid Over Tensioning. - Over Tensioning May Cause the Machine to not Roll Freely when Brake is Disengaged and... -
Page 13: Drive System Components
DRIVE SYSTEM COMPONENTS Drive System Improvements for X-Series - Hub Strengthened • Studs Increased from 3 to 6 - Wheel Gear and Pinion (60%) (25%) Thickness Increased - Output Shaft Bearing Assembly • 2 Bearings per Assembly • Length, ID and OD All Increased •... - Page 14 OTHER MACHINE IMPROVEMENTS Increased Material Thickness on HOC Plates Engine Deck is Thicker Near Engine Mounting Engine Deck has Reinforced Ribbing in High Stress Areas ECS30 HOC Axle ECX30 HOC Axle ECS30 Engine Deck ECX30 Engine Deck Picture place Picture place Picture place...
- Page 15 Machine Care: Maint. Specs Machine Maintenance and Part Numbers...
- Page 16 CHANGE TRANSMISSION BELT While Holding Idler Pulley Over Access Hole on Transmission, Insert Screwdriver through Access Rotate Idler Pulley Over Hole to Lock Idler Pulley in Access Hole on Transmission Position Using Ratchet and Socket (1) to Turn Idler Pulley Nut (2) SEE MANUAL FOR MORE DETAILED INSTRUCTIONS...
- Page 17 X-SERIES MAINTENANCE & MORE Service Interval Part Number Oil Capacity Oil Change See engine manual 24 oz Grease Points Transmission Belt Part Number Belt Tension Self-Tensioning 133-8151 Machine Warranty - 1 Year Limited Warranty Engine Warranty - Warrantied by Engine Manufacturer (3yr) - Follows Engine Manufacturer Guidelines Mulch Kit Available ...
