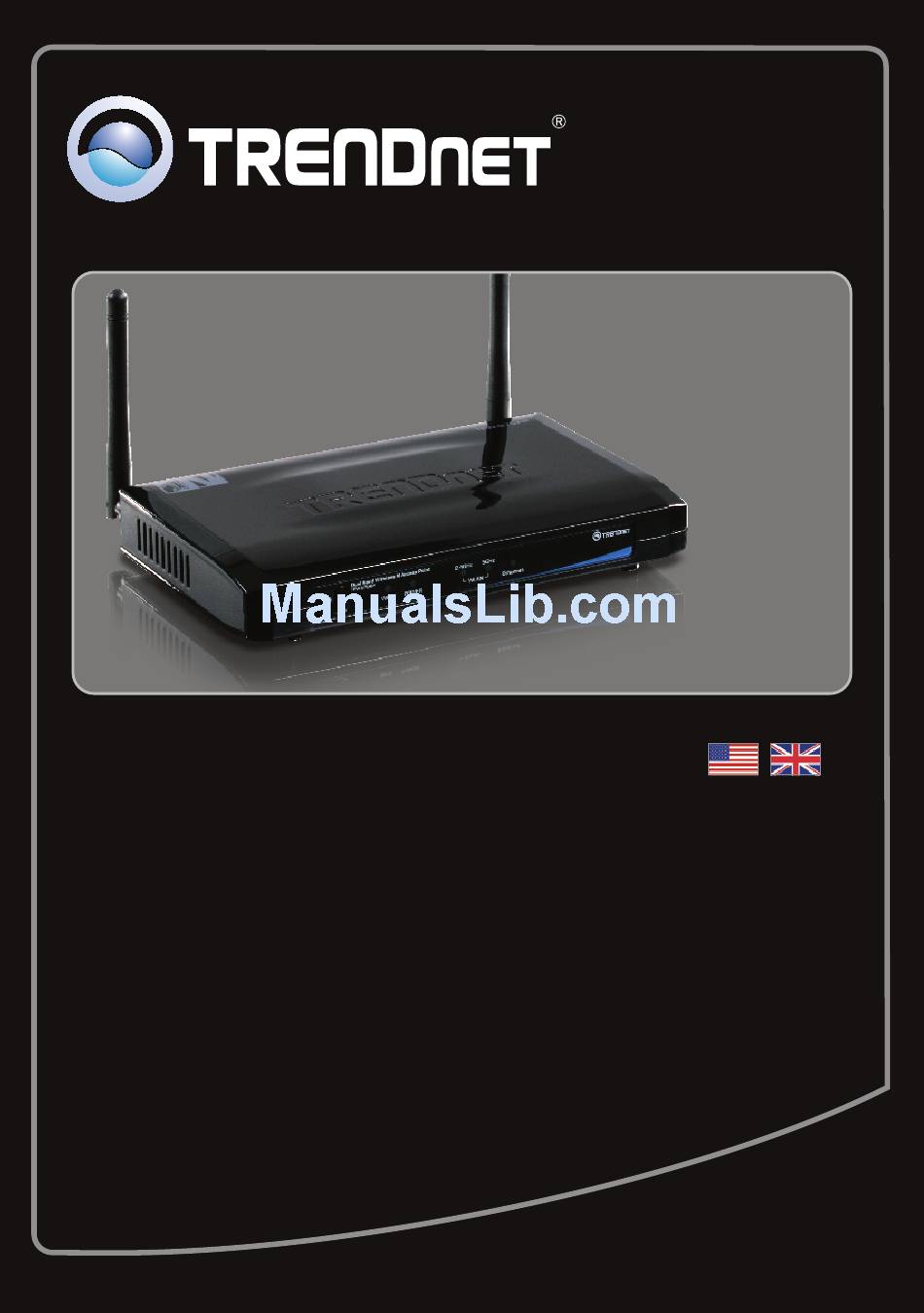

- Page 1 Quick Installation Guide TEW-670AP 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the Access Point Troubleshooting Wireless Tip Version 04.09.2010... -
Page 3: English
1. Before You Start Package Contents TEW-670AP • • Multi-Language Quick Installation Guide • CD-ROM (User’s Guide) Cat. 5 Ethernet cable (1m / 3.2ft) • • Power Adapter (12V DC, 2.5A) System Requirements Web Browser: Internet Explorer (6.0 or above) A computer with a network adapter properly installed A network Switch or Router with an available network LAN port... -
Page 4: Hardware Installation
2. Hardware Installation Note: Locate an optimum location for the Access Point. The best place for the Access Point is usually at the center of your wireless network. Please connect the computer configuring the TEW-670AP on the same switch/router. 1. Connect a RJ-45 cable from the Switch/Router to the LAN port on the Access Point. -
Page 5: Configure The Access Point
3. Configure the Access Point Note: 1. It is recommended that you configure the Access Point from a wired computer. Before the Access Point can be configured, a Static IP address must be assigned to your computer's network adapter in the subnet of 192.168.10.x. Since the Access Point's default IP address is 192.168.10.100, make sure no other network devices are assigned an IP address of 192.168.10.100. - Page 6 Note: 1. To protect your network from any unauthorized access it is recommended to enable wireless encryption. 2. The examples below are for WPA2-PSK security. If you select WPA-PSK or WPA2-PSK, make sure your wireless adapters support WPA or WPA2. If your wireless adapters do not support WPA or WPA2, then select WEP.
- Page 7 Your Installation is completed For detailed information regarding the TEW-670AP’s configuration and advanced settings, please refer to the Troubleshooting section, User's Guide on the CD-ROM, or TRENDnet's website at http://www.trendnet.com. 13. Wait 14 seconds while the Access Point reboots.
-
Page 8: Troubleshooting
Troubleshooting 1. How do I configure TCP/IP settings on my computer? Windows 7 1. Go into the Control Panel, click Network and Sharing Center, click Change Adapter Settings, right-click the Local Area Connection icon and then click Properties. 2. Click Internet Protocol Version 4(TCP/IPv4) and then click Properties. - Page 9 TRENDnet670N (2.4GHz) and TRENDnet670A (5GHz). If you have enabled encryption on the Access Point, make sure to configure the wireless network adapter with the same encryption key. If you still encounter problems or have any questions regarding the TEW-670AP, please contact TRENDnet's Technical Support Department.
-
Page 10: Wireless Tip
Wireless Tip The following are some general wireless tips to help minimize the impact of interference within an environment. Assign your network a unique SSID. Do not use anything that would be identifying like “Smith Family Network”. Choose something that you would easily identify when searching for available wireless networks. - Page 11 There are a number of other environmental factors that can impact the range of wireless devices. 1. Adjust your wireless devices so that the signal is traveling in a straight path, rather than at an angle. The more material the signal has to pass through the more signal you will lose.
- Page 13 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 14 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
- Page 15 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
- Page 16 Copyright©2010. All Rights Reserved. TRENDnet.
