Connect Family

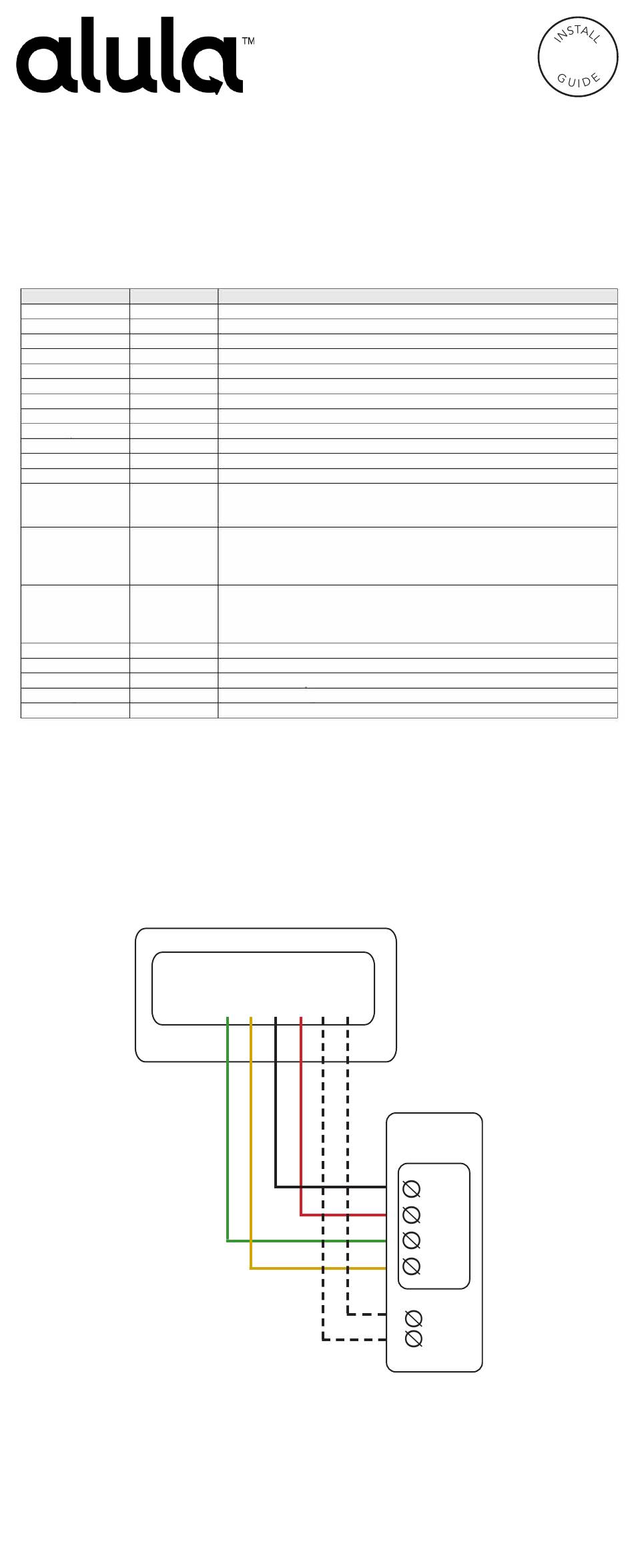

Honeywell Vista 15P & 20P
Program the panel for Full Interactive control with BAT-Mini.
• The installer code provided is the default. This code may vary by installation.
• Program an alpha keypad address on the panel at address 21 to control the
1st panel partition.
Enable Contact ID Reporting:
Keypad Display
Disarmed
Installer code 20
PABX
Pri. Phone
Pri. Phone
Sec. Phone
SublD. Pri.
SublD. Sec.
Phone Sys.
Rep Form Pri/Sec
Rep Form Pri/Sec
Split/ Dual
Open Rpt. (15P)
Open Rpt. 123
(20P)
Awy/Sty Rpt.
(15P)
Awy/Sty Rp 123
(20P)
Awy/Sty Rpt.
(15P)
Awy/Sty Rp 123
(20P)
RF LB Rpt.
Alm Res Rpt
Trb Res Rpt
Auto Stay Opt
Cross Zn Timer
• Power down the system and proceed to wiring
• Power up the panel
• Once the panel and BAT-Mini are online, navigate to the
Communications tab of Alula-Connect, enter the panel's
installer code, and initiate Device Action > Sync Panel Data
Panel Sync synchronizes panel programming with the BAT-Mini
Verify proper enrollment and operation using your control panel's installation manual.
BAT-Mini
Wiring and Programming Guide
Keypad Entry
4112,8,00
To enter the programming menu
*40
To go to PABX Access Code
*
To clear entries
*41
To go to primary phone setting
123456*
Enter phone number (123456 is an example)* to save
*43
To go to primary account number
1234*
Enter account number (1234 is an example)* to save
*47
To go to phone system menu
1
Press 1 to select tone dialing
*48
To choose Report Format
77
To select Ademco Contact ID reporting
*65
To go to Open Report code
1
To enable Open report code
100
*66
To Arm Away/Stay Rpt Code
11*
To enable Away/Stay ARM reporting code
*70
To go to Alarm/Restore reporting code
1
To enable alarm/Restore reporting code
To set Auto-Stay Arm
*84
0
Disable Auto-Stay Arm for Partition 1
*99
To exit and save
BAT-Mini
RS485
COMM
A
B
Y IN GND 12V
G IN
Ø Ø Ø Ø Ø ØØ Ø
REV A • 2024-07-16
Tech Support Line • (888) 88-ALULA • (888) 882-5852
™
Action Description
POWER
PHONE
RING
TIP
4
5
6
7
alula.com
VISTA
CONTROL
PANEL
-
BLACK
+
RED
DATA IN
GREEN
DATA OUT
YELLOW
TIP
RING
I
