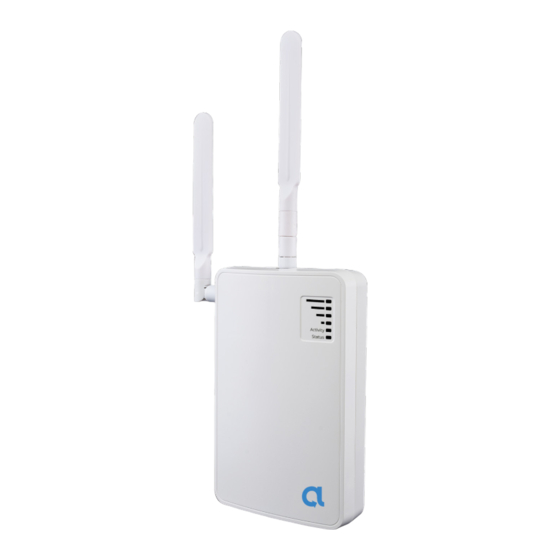

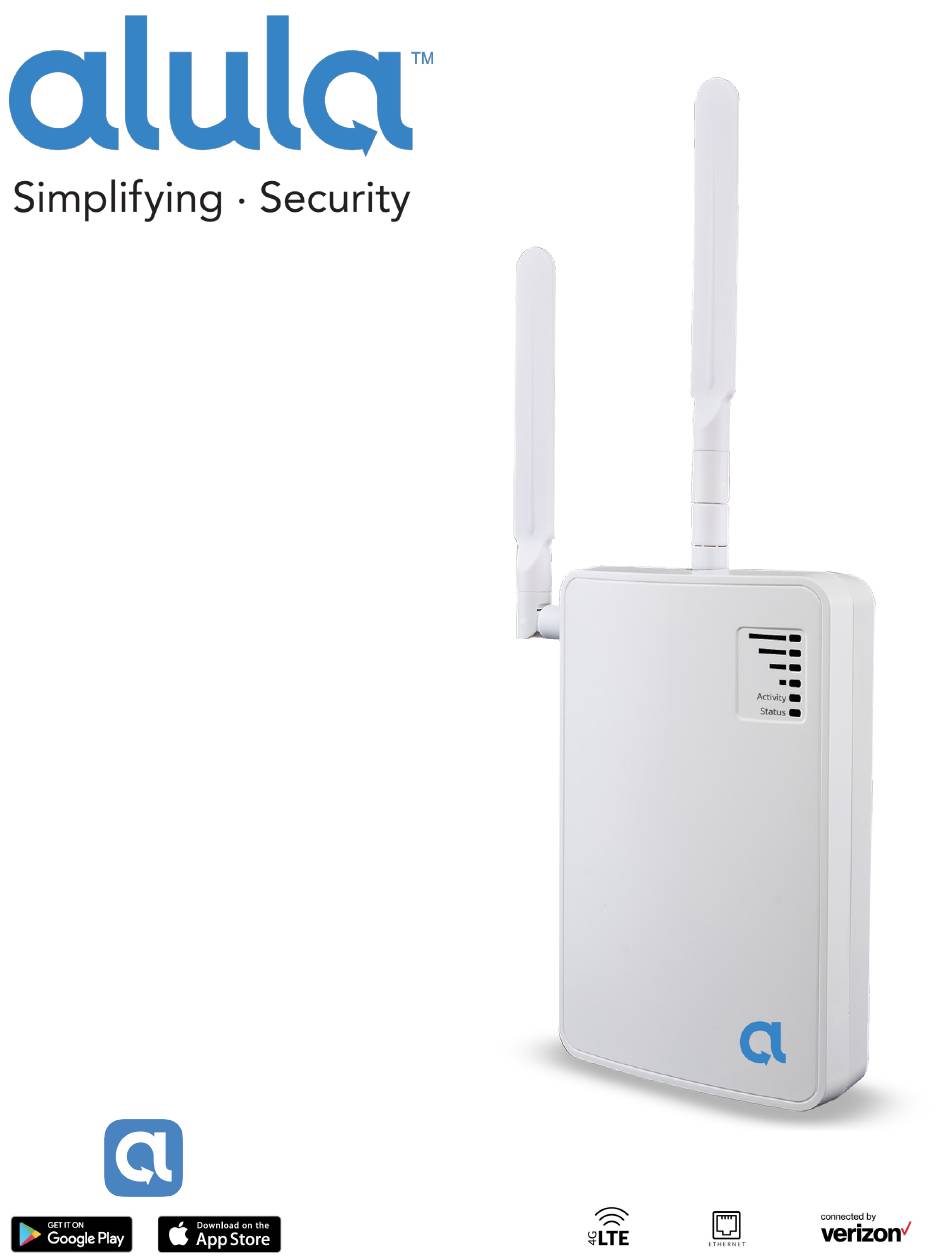

- Page 1 PRODUCT MANUAL BAT LTE SKU: IPD-BAT-LTE Universal Internet & Cellular 4G LTE Alarm Communicator...
- Page 2 Technical Support Information For Technical Support, call toll free: (888) 88-ALULA alula.net www.alarmdealer.com setup.alarmdealer.com - Mobile Friendly Alula 1402 Heggen St. Hudson, WI 54016...
-
Page 3: Table Of Contents
Table of Contents Quick Reference ..........................4 BAT LTE ............................. 5 • Installing the BAT LTE ..................... 5-6 • Wiring & Programming for popular panels ............... 7 DSC Panel Wiring and Programming ..................8 DSC PC-Link Connection ......................9 • DSC Programming Charts ..................10-11 Honeywell Vista Panel Wiring and Programming ............ -
Page 4: Quick Reference
QUICK REFERENCE Programming on GE Network: Dev~ice 0 BAT LTE as Sole Communicator Location 0 Enter the Phone Number Location 1 Enter Account Number Location 2 Enter ‘13’ for Contact ID Programming on Vista: BAT LTE as Sole Communicator Enter Phone Number... -
Page 5: Bat Lte
Virtual Keypad Connection The BAT LTE connects to most panels as a virtual keypad and allows the customer full virtual keypad access after they have authenticated using their username and password you have assigned them in the pre- installation phase. This allows the customer to use our Alula mobile phone and web interfaces. - Page 6 . Three or four lights indicate a strong signal. . It’s recommended to keep a distance of twelve inches (12”) between the communicator and the alarm panel. • If cellular signal strength is good, mount the plastic enclosure with a screw. •...
-
Page 7: Wiring & Programming For Popular Panels
All signals received by the unit will be recorded on the customer’s event log within the AlarmDealer.com portal. • Please reference Alula’s AlarmDealer.com Dealer User Guide for detailed information. Wiring & Programming for Popular Panels • The following pages are organized by Alarm Panel type. Wiring and programming instructions are given for: . -
Page 8: Dsc Panel Wiring And Programming
(Keyswitch alternative programming see Page 17) See Supported Panels section on page 18. Perform the TELCO Programming if Tip & Ring is being used. TELCO Programming: General Concept Programming on DSC (BAT LTE as Sole Communicator): Section As Sole Communicator... -
Page 9: Dsc Pc-Link Connection
DSC PC-Link connection PC-Link connection should only be used when the communicator is being installed as a back-up or uploading/downloading using DLS V. Remote downloader functionality requires Alula’s uDownloader software. -
Page 10: Dsc Programming Charts
PC-Link Programming: (Only needed if sending signals via PC-Link) DSC Programming for Communications - GSM Emulation: If GSM is used, it must be in dialer capture mode. BAT LTE as Fail BAT LTE as Dual BAT LTE as over w/Add’l Reporting w/Add’l... - Page 11 Options to turn on/off opening/closing for telephone Enable Option Enable Option Enable Option 1, 1 (option 1),telephone 2 1, 5 2, 5 (option 2), and alternate communications (option 5) Options to turn on/off maintenance for telephone Enable Option Enable Option Enable Option 1, 1 (option 1), telephone 2 1, 5...
-
Page 12: Honeywell Vista Panel Wiring And Programming
Tip & Ring to send signals then you can perform ecp bus programming. Otherwise, ALWAYS use TELCO programming. TELCO Programming: Programming on Vista (BAT LTE as Sole Communicator): Section BAT LTE as Sole Communicator Code Summarization... -
Page 13: Honeywell Vista Programming Charts
Code Summarization Communicator Communication Reporting Device for Failover This enables GSM. The Enter 1 Enter 1 Enter 1 BAT LTE Emulates a GSM. Enter Central Enter Central Station Receiver Station Receiver Secondary Phone Number Number Number Enter Account Enter Account... -
Page 14: Ge Panel Wiring And Programming
Recommended Keybus with Tip & Ring • (Keyswitch alternative programming see Page 17) TELCO Programming: General Concept Programming on GE NetworX: Section BAT LTE as Sole Communicator Code Summarization Device 0, Location 0 Enter the Phone Number Device 0, Location 1 Enter Account Number Device 0, Location 2 Enter ‘13’... -
Page 15: Generic Alarm Panel Wiring And Programming
Generic Alarm Panel Wiring and Programming Generic Alarm Panel Programming • Program the panel Phone Number into the panel • Program the Customer Account Number into the panel • Program Reporting codes into the panel • Program panel to transmit in 10 digit CID format... - Page 16 Generic Keyswitch Wiring and Programming For basic keyswitch interactive services with the BAT LTE, the following alarm panel wiring is needed. • A programmable output on the alarm panel will be used to signal to the Product (Y/Tx terminal) that the panel has entered Arm/Disarmed State.
- Page 17 Generic Keyswitch Programming Keyswitch state programming examples for Ademco, Digital Security Controls, and GE NetworX for Keyswitch and panel state program output operations are given below. Most alarm panel manufacturers will have the capability to configure a zone as a keyswitch and generally have at least one on-board programmable output that can be configured to activate on a number of different control state conditions.
-
Page 18: Supported Panels Charts
Supported Panels Honeywell Panel Revision Digital Dialer Full Interactive GSM Emulator Vista-10P 2.6+ ✓ ✓ ✓ ✓ ✓ ✓ Vista-10PSIA 4.0+ Vista-128BP 3.0+ ✓ ✓ ✓ ✓ ✓ ✓ Vista-128BPE 1.0+ Vista-128FB 1.0+ ✓ ✓ ✓ ✓ ✓ ✓ Vista-128FBP 2.0+ Vista-128FBPE 1.0+... -
Page 19: Specifications
GE NetworX Panel Revision Digital Dialer Full Interactive GSM Emulator NX-4V2 ✓ ✓ ✓ ✓ ✓ ✓ NX-6V2 NX-8V2 ✓ ✓ ✓ For non-supported panels: Bridge 12 VDC to “Y/TX” Terminal with any type of radial resistor with a value of 2.0k to 10k as a weak “pull up”. - Page 20 Alula 1402 Heggen St. Hudson, WI 54016 (888) 88-ALULA alula.net * All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
