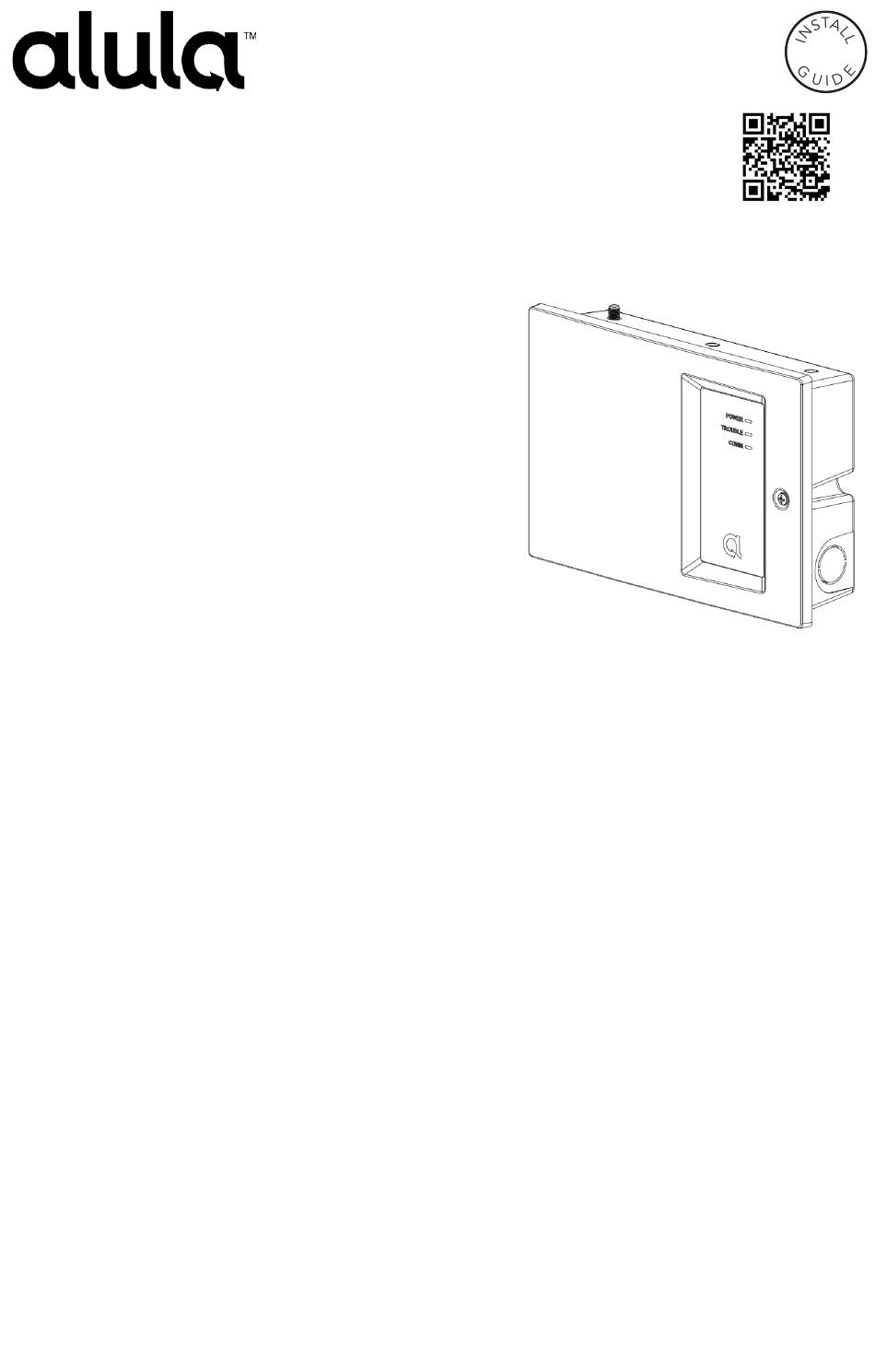

Connect Family

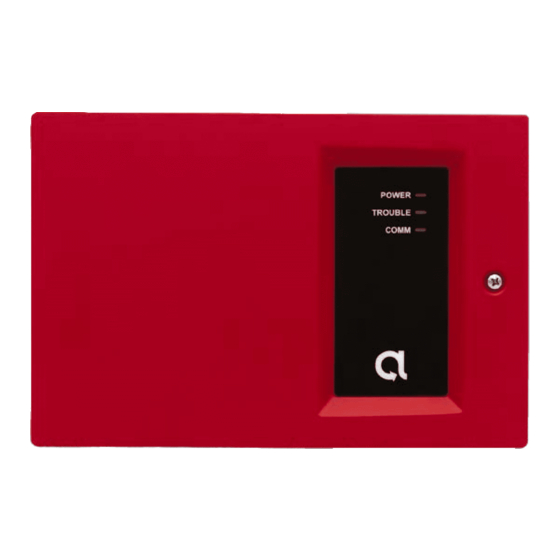

BAT-Fire
is a device that connects to an intrusion or fire alarm
control panel (FACP) and provides central station alarm
reporting.
Features
• Supports 12V and 24V regulated FACPs/burg panels
• Alarm capture via phone line interface or standard
FACP/burg panel points
• Supports Contact ID (CID) reporting format
• Dual Path: Ethernet (primary) with Cellular (backup)
• Sole Path: Ethernet or Cellular
• Platform visibility through AlulaConnect™
• Trouble event detection and reporting
• Four programmable input/output ports
• At-a-glance system status via front-panel LEDs
• UL 864 10th edition commercial fire certification
• ULC-S559 commercial fire
• UL 1610 commercial burg certification
• ULC-S304 commercial burg certification (Security Level II
installations)
Operation
Phone line capture
BAT-Fire provides two PSTN interfaces for the FACP/burg panel's DACT phone line connections.
BAT-Fire's DACT phone interface connection provides phone line voltage, dial tone, ringback tone
and all required CID protocol signaling. The BAT-Fire receives CID events from the FACP/burg
panel's DACT and then relays the CID events to the central station receiver.
Point capture
The BAT-Fire provides inputs that can be used to monitor an FACP's alarm, AC fail, and trouble
points (dry contact outputs). In this topology BAT-Fire inputs will be connected to the FACP points
(dry contact outputs). BAT-Fire will continually monitor the state of the FACP points (dry contact
outputs). A state change on a BAT-Fire monitored FACP point (dry contact output) will be report-
ed to the central station. (Refer to the Programming section describing how to set-up a BAT-Fire
input for FACP point capture.)
Note: for UL 864 10th edition, this configuration may only be used for panels with one input zone.
9th edition and earlier permitted this method for multiple protection zones.
Central station communication
The BAT-Fire can be configured to provide dual path connectivity using Ethernet/broadband
and cell or single path connectivity using either Ethernet/broadband or cell to Bosch Conettix
D6100IPv6 receivers at the central station.
Verify proper operation using your FACP/burg panel installation manual.
BAT-Fire
™
BAT-Fire, AT&T™ (BAT-FIRE-ATT)
BAT-Fire, Verizon™ (BAT-FIRE-VZ)
certification
Communicator
I
Scan QR for most up to date
manual, features, and compatibility
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Alula BAT-Fire BAT-FIRE-AT
Summary of Contents for Alula BAT-Fire BAT-FIRE-AT
- Page 1 BAT-Fire Communicator ™ BAT-Fire, AT&T™ (BAT-FIRE-ATT) BAT-Fire, Verizon™ (BAT-FIRE-VZ) Connect Family BAT-Fire is a device that connects to an intrusion or fire alarm control panel (FACP) and provides central station alarm Scan QR for most up to date reporting. manual, features, and compatibility Features •...
-
Page 2: Installation And Wiring
Installation and Wiring Mounting Holes 1. Set up an account in the AlulaConnect portal. 2. Mount the BAT-Fire using the guidelines listed below to meet UL 864, UL 1610, ULC-S559, and/or ULC-S304. Use the mounting holes on the back plate. 3. - Page 3 Figure 1. Phone Line Capture Wiring • Both Phone line 1 and 2 must be connected to the FACP/burg panel. The FACP/burg panel must be configured to supervise the phone lines. • Most FACPs/burg panels can be supported for event reporting as long as it provides Tip & Ring connection and transmits events in Contact ID format.
- Page 4 Figure 2. Point Capture Wiring • Refer to Programming section on how to configure BAT-Fire’s PGM1, PGM2, and PGM3 for FACP panel point capture and PGM4 as a trouble trigger. PGM4 is an open-collector output. • This figure shows one possible configuration between BAT-Fire and the FACP/burg panel. A relay may not be required.
-
Page 5: Trouble Conditions
Figure 3. Single Phone Line Burglary Wiring • For UL 1610 installations, refer to Programming section on how to configure BAT-Fire’s PGM3 as a ringback trigger. A UL-approved siren such as Honeywell Model 747 must be used for ringback. The ringback feature on the control panel must be disabled. •... - Page 6 Programming Programming via AlulaConnect Table 1: PARAMETERS FOR UL 864 & UL 1610 COMPLIANCE (USA) NOTICE TO INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES: This product incorporates field-programmable software. All features/options described below are permitted in UL 864/UL 1610. In order to comply with the requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864, and/or Standard for Central- Station Burglar-Alarm Units, UL 1610, certain programming features or options must be limited to permitted settings or not used at all as indicated below.
- Page 7 Table 2: PARAMETERS FOR ULC-S559 & ULC-S304 COMPLIANCE (CANADA) NOTICE TO INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER INVOLVED PARTIES: This product incorporates field-programmable software. All features/options described below are permitted in ULC-S559/ULC-S304. In order to comply with the requirements in the Standard for Equipment for Fire Signal Receiving Centres and Systems, ULC-S559-13-R2018 and/or the Standard for Control Units, Accessories and Receiving Equipment for Intrusion Alarm Systems, ULC-S304:2016-REV1, certain programming features or options must be limited to permitted...
- Page 8 Programming via AlulaConnect (cont.) Programming BAT-Fire Phone 2 trouble triggers • Select “Edit” to the right of Phone 2 • Check all desired Phone 2 triggers • Power Fail • Cover Tamper • Cell Fail • Ethernet Fail • Central Station Fail •...
- Page 9 Operation and Indicator Overview Events are reported to the central station receivers and the Alula platform event system. All events use Contact ID reporting codes. To enter programming press the Config button on the BAT-Fire for 2 seconds. • With the BAT-Fire cover open, it will remain in programming mode for 2 hours.
-
Page 10: Troubleshooting
2. Ensure account is properly configured. 1. Verify the reporting path and ensure the receiver is properly configured. Comms LED Yellow 2. Contact Alula for further technical support. 1. Ensure FACP/burg panel wiring is correct. 2. Ensure the FACP/burg panel is configured properly. - Page 11 Glossary Capture Sensing a status or condition DACT Digital Alarm Communicator Transmitter that reports on phone lines FACP Fire Alarm Control Panel I/O Port A programmable input or output on BAT-Fire, named PGM1-PGM4 Line A phone line, used for reporting alarm data Phone Line The operation of the BAT-Fire connecting to the FACP/burg panel phone ports and Capture...
-
Page 12: Specifications
(2) L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le Changes or modifications not expressly approved by Alula could void the fonctionnement. user’s authority to operate this equipment.
