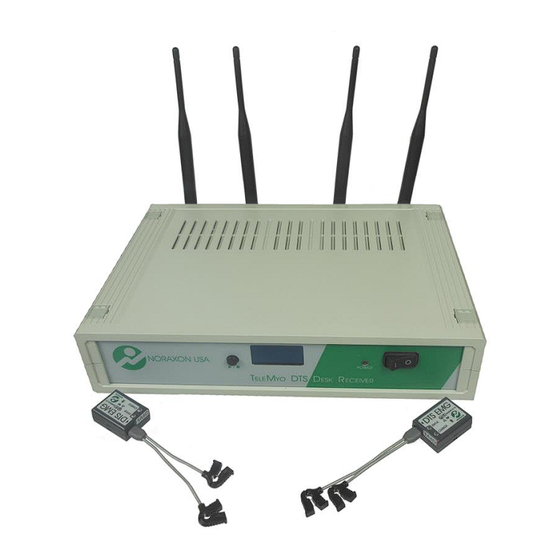

Noraxon TeleMyo 586 User Manual

Sensor and receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Desktop DTS Hardware User Manual
TeleMyo Desktop
DTS System
Sensor and Receiver
User Manual
P-5868 Rev L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TeleMyo 586 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Noraxon TeleMyo 586

Summary of Contents for Noraxon TeleMyo 586

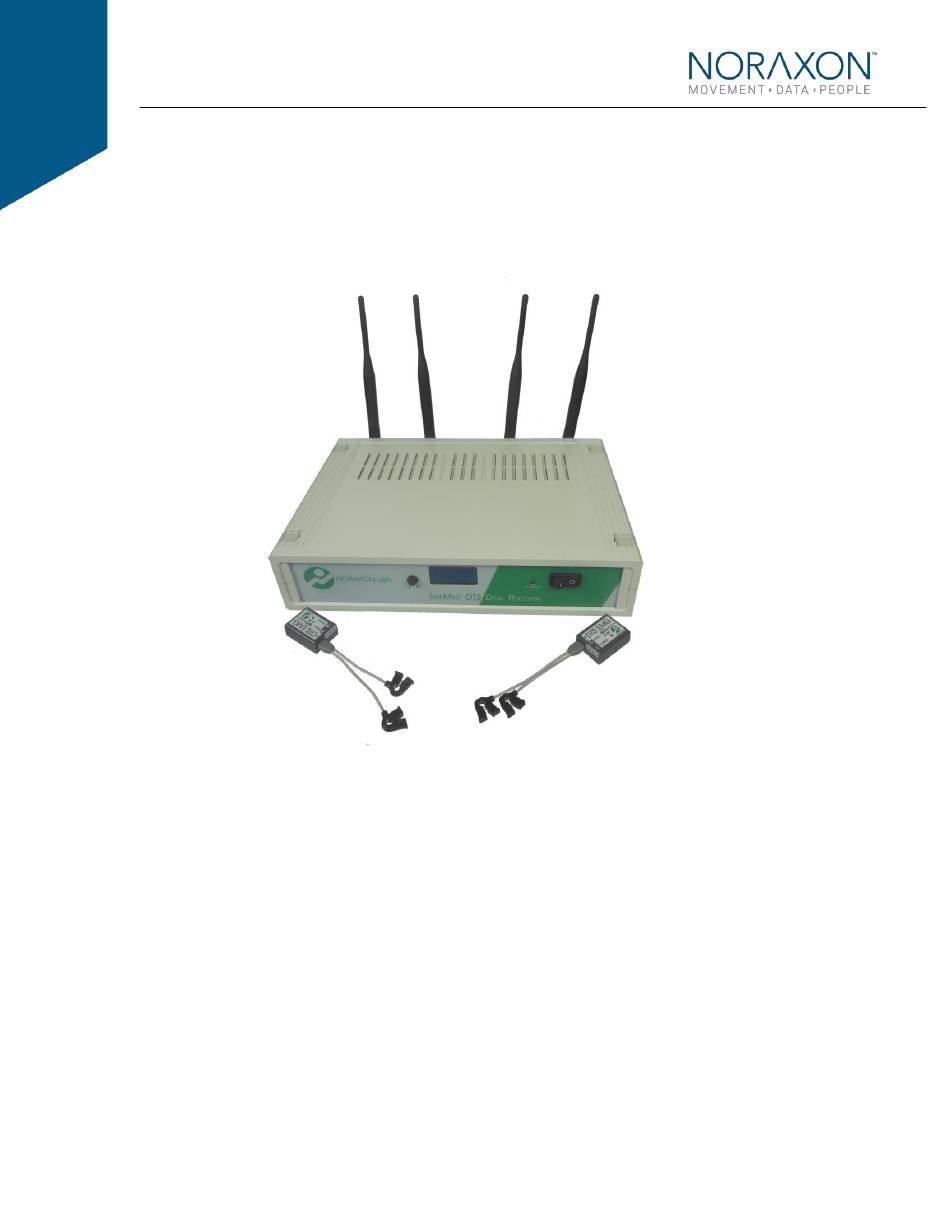

  • Page 1 Desktop DTS Hardware User Manual TeleMyo Desktop DTS System Sensor and Receiver User Manual P-5868 Rev L...

  • Page 2: Authorized European Representative

    Noraxon and myoRESEARCH are registered trademarks and the Noraxon logo, myoANALOG, myoFORCE, myoMETRICS, myoMOTION, myoMUSCLE, myoPRESSURE, myoVIDEO, myoSYNC, NiNOX, TRUsync and Ultium are common-law trademarks of Noraxon U.S.A., Inc. All other trademarks are the property of their respective owners. ©2018, all rights reserved.

  • Page 3: Table Of Contents

    Desktop DTS Hardware User Manual Table of Contents Section 1: Introduction Brief Description..........................1 Intended Use..........................1 Contraindications .......................... 2 Section 2: Definitions Graphic Symbols and Meaning ....................2 Glossary of Terms ........................3 Section 3: Identification Model Designation ........................5 Product Versions and Configurations ...................
  • Page 4 Desktop DTS Hardware User Manual Secondary Functions without PC Interface ................23 Sensor Delay ..........................23 Exceptional Functions/Situations (error messages) ..............25 Shutdown after Use ........................25 Storage and Protecting Between Usages .................. 26 Section 9: Accessories and Optional Modules Accessories..........................
  • Page 5 Desktop DTS Hardware User Manual Section 16: Specifications of the Product Expected Useful Lifetime ......................39 Dimensions and Weight ......................39 Performance Characteristics ...................... 39 Output & Transmission Frequency (Depending on country) ..........39 EMG Sensor Data Acquisition System ................... 39 EMG Sensors ..........................

  • Page 6: Section 1: Introduction

    TeleMyo DTS System to other biomechanical devices. Intended Use Noraxon’s EMG system, TeleMyo Desktop DTS, is intended to measure and quantify muscle biopotential signals separately or in combination with other kinematic or kinetic signals or to provide data to assist in diagnosis.

  • Page 7: Contraindications

    Community was certified by Notified Body #2797 BSI. 2797 Approval to market this product (#586) in the European Community was certified by Noraxon USA. The device generates radio frequency energy during operation. A 5 Volt DC power source is applied to this connection.

  • Page 8: Glossary Of Terms

    Desktop DTS Hardware User Manual Read material in the Instruction Manual wherever this symbol appears. Identifies the manufacturer of the device. Identifies the serial number of the device. Additional information available in a separate document Glossary of Terms DTS – (Abbreviation for Direct Transmission System) A network of short-range wireless sensors where measured data is transmitted directly from each sensor into a receiver for subsequent display and analysis on a computer or intelligent handheld device.
  • Page 9 Desktop DTS Hardware User Manual RF Traffic – The presence of radioactivity present on a given frequency similar to the number of cars on an expressway. Several users (wireless devices) may be communicating using the same frequency. Best operation of the DTS System occurs when the RF Traffic is low (no other users) on the selected RF Channel.

  • Page 10: Section 3: Identification

    Desktop DTS Hardware User Manual Section 3: Identification Model Designation The basic Desktop DTS System consists of two primary components: Model 586 Desktop DTS Receiver (1 per system) Model 548 DTS Lossless EMG Sensor (up to 16 per system) Product Versions and Configurations The model 586 Desktop DTS Receiver can accommodate up to 16 DTS Sensors.

  • Page 11: Section 4: General Warnings And Cautions

    Desktop DTS Hardware User Manual Section 4: General Warnings and Cautions Risks and Benefits There is no identified risk of physical harm or injury with use of the TeleMyo Desktop DTS product. The benefit provided by use of the device is the provision of objective measures to assess the severity of pathological human movement conditions and gauge any subsequent improvement offered by therapy, training or design changes.

  • Page 12: Section 5: Getting Started

    Desktop DTS Hardware User Manual Section 5: Getting Started Quick Start Guides MR3 – Quick Start Tutorial MyoMuscle Step 1: Home/Start Screen Select a module Select/create a subject Select a configuration (to create a new configuration see next page) Continue to next step with: Step 2: Measure Check the signals from the sensors and, if acceptable,...
  • Page 13 Desktop DTS Hardware User Manual Step 3: Viewer Review/Replay the record Set a marker at each start and end of a desired analysis period Continue to next step with: MR3 – General Quick Start Tutorial Step 4: Report Selection and Analysis Period Definition Select a Report in one of the MyoMuscle tabs Study report definition (Info)
  • Page 14 Desktop DTS Hardware User Manual Step 5: Read and Print a Report Scroll through the report results Use Print, View or Analysis Options Reports can be printed, copied to clipboard or exported to several files formats. The report can be Re-analyzed to adjust the period definition or to perform a comparison analysis.
  • Page 15 Desktop DTS Hardware User Manual MyoResearch-XP – Quick Start Tutorial MyoMuscle P-5868 Rev L...

  • Page 16: Section 6: Preparing The Product For Use

    Desktop DTS Hardware User Manual Section 6: Preparing the Product for Use (Set-up Instructions) Unpacking and Component Identification The TeleMyo Desktop DTS System is provided with a padded shipping container for storage and protection during transport. The contents are secured in recessed areas of the padding as illustrated.

  • Page 17: Component Inputs, Outputs And Indicators

    Desktop DTS Hardware User Manual DTS Sensor Charging Station (part #543) DTS Sensor Charger Power Source (part #PSU1) Additional contents not illustrated Double side tape samples (part #542C) Sample electrodes (typically dual electrodes part #272) Desktop DTS User Manual (part #586A) This document If additional accessories have been included please see Section 9, Accessories for component identification.
  • Page 18 Desktop DTS Hardware User Manual 2A EMG Sensor (front) Status – Sensor operational indicator flashes green. Flash rate is faster when Green measuring, slower when idle. Charge – Indicator illuminates steady amber while sensor is charging. When the Amber battery is fully charged the indication is off.

  • Page 19: Component Interconnections

    Desktop DTS Hardware User Manual Component Interconnections Step 1 Screw on the antenna (ANT3) to the antenna connector located on the rear of the TeleMyo Desktop DTS Receiver (586). If the antenna is already attached, check that it is securely tightened.

  • Page 20: Companion Software Installation

    5. Please include the following: Your name, Company/Organization Name, Serial Number on TeleMyo Desktop DTS Receiver and the Activation Key. 6. Noraxon Support will email or respond by phone with the Activation Code 7. Enter the provided Activation Code to remove any restrictions on use.

  • Page 21: Myoresearch Xp Configuration

    Desktop DTS Hardware User Manual MyoResearch XP Configuration Step 1 Open the MyoResearch XP program and click on the Measure button. Step 2 Click on the Hardware button Step 3 Select (click on) the Telemyo DTS Desk Receiver Icon from the various devices at the top of the screen.
  • Page 22 Desktop DTS Hardware User Manual Step 4 Click on the Settings Icon. Note: If the Desktop DTS Receiver is not connected to the computer the following message will appear instead of the dialog in step 6. Step 5 When the Desktop DTS Receiver is attached to the computer’s USB port, the Desktop DTS Settings Dialog will appear.

  • Page 23: Mr3 Configuration

    Desktop DTS Hardware User Manual Step 7 Select a wireless radio channel from the pull down list. In most cases the default “A (WiFi 1)” will work. Please refer to Appendices A and B for detailed information on radio channel selection. Click on OK MR3 Configuration Step 1...
  • Page 24 Desktop DTS Hardware User Manual Step 3 Double-Click on the Noraxon Desk Receiver Icon to bring up the dialog of step 4. Note: The Desktop DTS Icon will not be displayed if the device is not attached to the USB port of the computer.
  • Page 25 Desktop DTS Hardware User Manual Step 6 For each Desktop DTS Sensor identify its 4-character serial number and enter the value into the corresponding Serial column field. After this assignment there is no need to refer to sensor serial numbers any more. Channel numbers 1-16 are used to specify sensors Step 7 Click on the General tab.

  • Page 26: Section 7: Pre-Use Check-Out

    EMG electrodes. The 2-pin lead wire connector can be inserted either way into the EMG Sensor to facilitate attachment to the surface electrodes. Both snap/button style and pinch (or clip) style wire terminations are available. Noraxon also offers longer lead wires for special needs.

  • Page 27: Section 8: Operating Instructions

    Desktop DTS Hardware User Manual Section 8: Operating Instructions Safety Information Summary Strictly follow all safety practices given in section 4 of this manual. The most critical ones are repeated here. CAUTIONS • Never use the TeleMyo Desktop DTS System on a person with an implanted pacemaker •...

  • Page 28: Secondary Functions Without Pc Interface

    Desktop DTS Hardware User Manual Consult the user manual for the companion software for descriptions of the setup, playback and analysis of the data acquired by the Desktop DTS system. Secondary Functions without PC Interface The Desktop Receiver has the ability to operate without software, i.e. “standalone.” After each software measurement the Desk Receiver stores the current configuration (sensor serial numbers, sample rate, filter cutoffs, RF channel and sensor delay) to Flash memory.
  • Page 29 Desktop DTS Hardware User Manual Example: High (312/156ms) – The High setting produces a delay of 312ms at 1500Hz and 156ms at 3000Hz. MR-XP: The Sensor Delay setting can be found in the Desk Receiver Configuration (Settings) under the Hardware Setup. P-5868 Rev L...

  • Page 30: Exceptional Functions/Situations (Error Messages)

    Desktop DTS Hardware User Manual MR3: The Sensor Delay setting can be found in the Desk Receiver Hardware Setup (Device Configuration). Exceptional Functions/Situations (error messages) Error Message Meaning Channel n (1<n<8) was selected for a measurement but a sensor serial number for Channel n is not assigned channel n has not yet been defined in the companion software.

  • Page 31: Storage And Protecting Between Usages

    Desktop DTS Hardware User Manual Storage and Protecting Between Usages For extended storage or when travelling: • Put the DTS sensors into shutdown mode* • Place all sensors into the sensor charging station • Position all components inside the system travelling case according to their prepared cavities.
  • Page 32 Click on the Setup button at the lower middle of the screen • Click on the Hardware button in the right side Actions toolbar • Click on the Noraxon Desk Receiver icon • Click on the Configure Device button •...

  • Page 33: Section 9: Accessories And Optional Modules

    Desktop DTS Hardware User Manual Section 9: Accessories and Optional Modules Accessories Part No. Image Description More… DTS Sensor Charging Station (8 sensors) PSU1 Sensor Charging Station Power Supply DTS Footswitch Sensor DTS Single Axis Mechanical Goniometer (knee and elbow) DTS Dual Axis Goniometer (hip, shoulder, wrist, back) 517A DTS 3-Axis Accelerometer (2G/6G user selectable)

  • Page 34: Options

    DTS BioMonitor Mobie Force Sensor 542FW Fine Wire Leads 500-IS DTS Insoles-Pair As new accessories may be available after the time of printing, please check Noraxon’s website at this link for the latest offerings. http://noraxon.com/products/ Options Part No. Image Description Analog Outputs –...

  • Page 35: Interfaces To Other Devices

    Desktop DTS Hardware User Manual Interfaces to Other Devices Package Image Description Medilogic Measures foot pressure profiles using insoles Insoles Pressure Plate Measures foot pressure profiles using a plate (Stationary) (Can be used to assess balance) Pressure Plate Measures foot pressure and center of gravity (Treadmill) while walking MyoMotion...

  • Page 36: Section 10: Cleaning

    The EMG Sensors are not warranted against exposure to any of the conventional forms of sterilization(autoclave, heating, etc.). Users wishing to utilize this equipment in a sterile environment, such as an operating theater, should consult Noraxon for other options. P-5868 Rev L...

  • Page 37: Section 11: Maintenance

    Companion Software Updates • Perform a backup of the data folders to a separate drive as a precaution. • Click on the Patch/Update link provided in the email or as given on the Noraxon website http://noraxon.com/support-resources P-5868 Rev L...

  • Page 38: Device Software (Firmware) Updates

    Device Software (firmware) Updates The internal program (firmware) inside the various DTS devices can be updated through the use of a special utility programs available through a supplied link through the Noraxon website: http://noraxon.com/support-resources The installed programs will permit updates to both the Desktop DTS Receiver and the DTS...

  • Page 39: Section 12: Trouble Shooting, Fault Diagnosis

    (esp. at long distances) of-sight relationship between sensor and receiver Website Link to FAQ Answers to common questions can be found at Noraxon’s Frequently Asked Questions (FAQ) website page at this link: http://noraxon.com/suppoer-resources/faq Other educational material is available at this link: http://www.noraxon.com/support-resources/resource-center/...

  • Page 40: Radio Considerations

    Desktop DTS Hardware User Manual Radio Considerations The TeleMyo Desktop DTS radio system operates in the 2400 MHz ISM (Industrial, Scientific and Medical) radio band reserved for use in most countries of the world. The radio transfers data digitally using a proprietary wireless sensor protocol. Other devices operating in this frequency band include computer networks, microwave ovens, cordless phone sets and other WiFi enabled devices.

  • Page 41: Section 13: Service And Repair

    If you are shipping from outside the USA please use UPS, FedEx, DHL, or EMS (US Postal Service) and not a freight-forwarder. Using a freight-forwarder incurs additional brokerage fees. If a package is shipped to Noraxon via a carrier other than the ones listed above, it may be refused.

  • Page 42: Section 14: Spare Parts And Consumables

    Desktop DTS Hardware User Manual Section 14: Spare Parts and Consumables Consumable Items Part Image Description Dual electrodes 8 per pouch or 200 per box 542C Double sided tape for attaching DTS sensors, 504 per package Replaceable Items Part Image Description 542AP EMG Lead set, 3 inches with pinch attachments...

  • Page 43: Section 15: Taking Product Out Of Operation

    Desktop DTS Hardware User Manual Section 15: Taking Product out of Operation Disposal of Equipment and Batteries The Desktop DTS EMG Sensors contain Li-Polymer batteries, which may be hazardous if disposed of incorrectly. Please check with the governing authorities in your location before disposing of the TeleMyo DTS Desk Receiver and its contents.

  • Page 44: Section 16: Specifications Of The Product

    Desktop DTS Hardware User Manual Section 16: Specifications of the Product Expected Useful Lifetime Both the TeleMyo Desktop DTS Receiver (586) and EMG Sensors (548) have a usable life of seven years. The DTS EMG sensors (#548) operate with a rechargeable Lithium Ion battery, as do all DTS Sensors.

  • Page 45: Energy Consumption, Condition Of Use

    DTS Desktop DB-25 Analog Connector Cable This connector is available for general use with cables supplied by Noraxon or other manufacturers. All analog signals vary between +/- 5V. The DB-25 connector pin assignments are as follows:...

  • Page 46: Section 17: Technical Information

    Desktop DTS Hardware User Manual Section 17: Technical Information Block Diagram Model 548 DTS EMG Sensor Model 586 Desktop DTS Receiver P-5868 Rev L...

  • Page 47: Theory Of Operation

    Desktop DTS Hardware User Manual Theory of Operation The Desktop DTS wireless system is based on a pre-certified transceiver module: UGWG4USBB33 by Unigen. This radio module operates in the 2.4 GHz bands with an output power level of 1 mW and is based on a Wireless USB product by Cypress Semiconductor. Part 548 DTS Transmitter (EMG Sensor) Each Mini DTS transmitter module (part # 548) incorporates one Unigen transceiver module together with an EMG preamplifier / data acquisition motherboard.

  • Page 48: Electro-Magnetic Compatibility Tables

    Desktop DTS Hardware User Manual Electro-Magnetic Compatibility Tables Guidance and manufacturer’s declaration – electromagnetic emissions The TeleMyo DTS is intended for use in electromagnetic environment specified below. The customer or the user of the TeleMyo DTS should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance...
  • Page 49 Desktop DTS Hardware User Manual Guidance and manufacturer’s declaration – electromagnetic immunity The TeleMyo DTS is intended for use in electromagnetic environment specified below. The customer or the user of the TeleMyo DTS should assure that it is used in such an environment. Immunity Test IEC 60601 test level Compliance...
  • Page 50 Desktop DTS Hardware User Manual Recommended separation distances between portable and mobile RF communications equipment and the TeleMyo DTS The TeleMyo DTS is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the TeleMyo DTS can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the TeleMyo DTS as recommended below, according to the maximum output power of the communications equipment.

  • Page 51: Section 18: Appendices

    Use a network sniffer program to determine which WiFi RF channels are being used in your area. InSSIDer” is a network sniffer with a graphical display that is available as a free download from the Noraxon website under “Drivers and Firmware”: http://www.noraxon.com/support-resources/ This network sniffer is compatible with Windows XP, Vista and 7 (32 and 64-bit).

  • Page 52: Appendix B - Sensor Rf Channel Frequencies

    Desktop DTS Hardware User Manual Appendix B – Sensor RF Channel Frequencies The EMG Sensors and Biomechanical Sensors operate on a RF channel. The RF Channels (A- H) are assigned to the RF frequencies according to the table below. RF Channel Frequency (GHz) 2.400-2.409 2.415-2.424...

  • Page 53: Appendix C - Use Of Disposable Electrodes

    It will usually disappear within 24 hours. Noraxon discourages any attempt to reuse a disposable electrode, even if it is simply pulled off to slightly reposition the electrode’s muscle placement. Some of the electrode gel may remain on the original site and the EMG signal may be affected.
  • Page 54 Desktop DTS Hardware User Manual 6. Electrodes are the weak link in the EMG measurement chain. Lack of proper attention to electrode quality or site preparation is by far the most common cause of inferior recordings. 7. It may take up to 5 minutes for disposable electrodes to fully stabilize electrically once applied to the skin.

  • Page 55: Appendix D - Radiation Exposure Information Regarding Use Of Dts Sensors

    (next to the person’s head). At present, Noraxon identifies no restrictions on use and placement of the DTS sensors on any portion of the human body. The DTS sensors operate at radio frequencies known to effect older style pacemakers.

  • Page 56: Appendix E - Radio Regulatory Statements

    Desktop DTS Hardware User Manual Appendix E – Radio Regulatory Statements FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 57: Appendix F - Desktop Dts Synchronization

    Desktop DTS Hardware User Manual Appendix F – Desktop DTS Synchronization The TeleMyo Desktop DTS may be used with other devices. In order to synchronize the signal of the Desktop DTS with these other devices, it is necessary to set up both the software and hardware correctly.
  • Page 58 The sync for the Desktop DTS can be set in the Hardware Setup (Device Configurations) under the General tab. The Desktop DTS can be set to None (no sync), Sync Out (Output), or Sync In (Noraxon MyoSync(input)). Once sync is set, to display the sync signal the Hardware sync input should be set to Digital Channel 1, regardless of whether the Desktop DTS is set to sync in or out.

This manual is also suitable for:

Telemyo 546Telemyo 548
