Panasonic ES8259 Service Manual

Panasonic ES8259 Service Manual

Hide thumbs

Advertisement

Table of Contents

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
5 Schematic Diagram ---------------------------------------------12
Model No.
Asia
PAGE
© 2007 Matsushita Electric Works, Ltd. All rights
reserved. Unauthorized copying and distribution is a
violation of law.

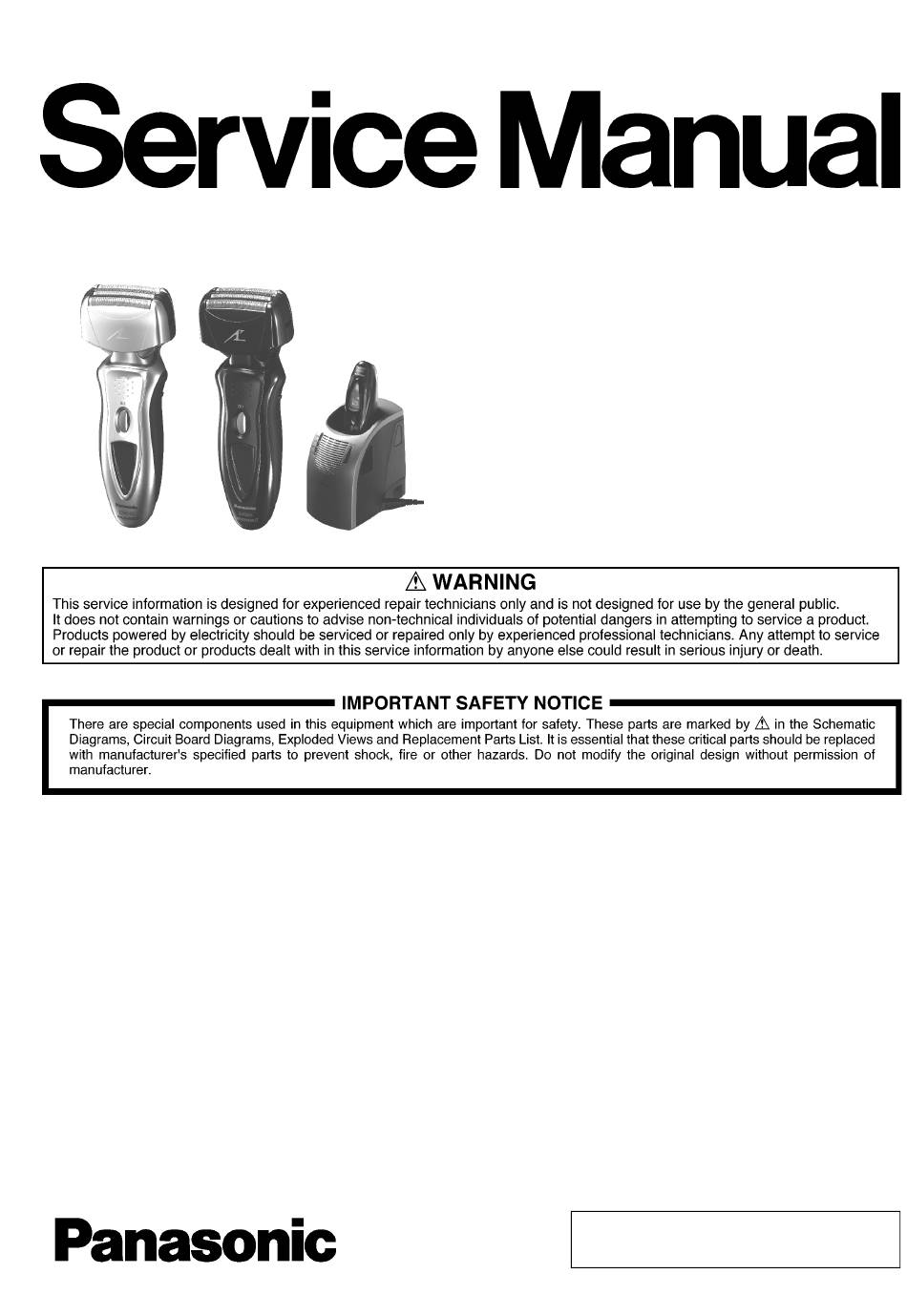

Order Number SD0709A52CE
Rechargeable Shaver
ES8253
ES8259
PAGE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES8259 and is the answer not in the manual?

Questions and answers

Related Manuals for Panasonic ES8259

Summary of Contents for Panasonic ES8259

  • Page 1: Table Of Contents

    Order Number SD0709A52CE Rechargeable Shaver ES8253 Model No. ES8259 Asia TABLE OF CONTENTS PAGE PAGE 1 Warning -------------------------------------------------------------- 2 2 Specifications ----------------------------------------------------- 2 3 Troubleshooting Guide ----------------------------------------- 3 4 Disassembly and Assembly Instructions ---------------- 7 5 Schematic Diagram ---------------------------------------------12 6 Exploded View and Replacement Parts List -----------13 ©...

  • Page 2: Warning

    1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.

  • Page 3: Troubleshooting Guide

    3 Troubleshooting Guide 3.1. Main unit and charging adaptor...
  • Page 5 3.2. Self-cleaning recharger (ES8259 only)
  • Page 6 3.3. OPERATION OF SELF-CLEANING RECHARGER (ES8259 only)

  • Page 7: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions 4.1. Disassembly Instructions Follow the procedure below to disassemble the main unit. 1. Remove the cap, the outer foil and the inner blade. 3. To remove the trimmer driving bar or the slit blade driving bar, press bars outward.
  • Page 8 5. Take out the battery from the chassis. 7. Move gently the linear motor assembly down and unhook it and remove the float springs from housing A. 6. Take out the tube holder. 8. Unsolder the lead wires from the module.

  • Page 9: Caution In Assembly

    4.2. Caution in Assembly NOTE: When reassembling, replace the new waterproof seal. Make sure whether there is NO foreign substance sticking around a part covered with waterproof seal. 1. Solder the lead wires with the module. 3. Make sure that the lead wires set in position to avoid NOTE: abnormal noise.
  • Page 10 4. Set the linear motor assembly on the housing A and slid- 6. Tighten six screws. ing it upward to hook. Confirm that the lead wire tube fits NOTE: Make sure to attach the connecting plate. to the housing A firmly and no foreign substance sticking around.
  • Page 11 8. Attach the bottom cover and tighten a screw. 10. Set the trimmer and tighten a screw. If the position is not properly, it makes the deformation of the hook. 9. Set the trimmer driving bar and the slit blade driving bar.

  • Page 12: Schematic Diagram

    5 Schematic Diagram 5.1. ES8253 5.2. ES8259...

  • Page 13: Exploded View And Replacement Parts List

    6 Exploded View and Replacement Parts List Model No. : ES8253 Exploded View forES8253...
  • Page 14 Model No. : ES8253 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES8253 WES8259X7158 PROTECTIVE CAP WES9161E OUTER FOIL WES9068E INNER BLADE WES8258L1007 LINEAR MOTOR ASSEMBLY WES8258L1087 TRIMMER DRIVING BAR WES8258L1077 SLIT BLADE DRIVING BAR WES8258L1177 FINISHING BLADE DRIVING BAR WES8258L0327 WATERPROOF RUBBER...
  • Page 15 Model No. : ES8259 Exploded View for ES8259...
  • Page 16 Model No. : ES8259 Parts List Ref. Safety Part No. Part Name & Description Q'ty Remarks ES8259 WES8259X7158 PROTECTIVE CAP WES9163E OUTER FOIL WES9068E INNER BLADE WES8259L1007 LINEAR MOTOR ASSEMBLY WES8258L1087 TRIMMER DRIVING BAR WES8258L1077 SLIT BLADE DRIVING BAR WES8258L1177...

This manual is also suitable for:

Es8253
