Summary of Contents for Siemens Healthineers Cios Select
- Page 1 Cios Select /Cios Select FD Maintenance Instructions System Maintenance Instructions The protocol XPR2-140.832.01.05.XX is required for these instructions...
-
Page 2: Document Version
Versions to hard‐ copy documentation are not automatically distributed. Please contact your local Siemens Healthineers office to order a current version or refer to our website http://www.siemens-healthineers.com. Disclaimer Siemens Healthcare GmbH provides this documentation “as is”... -
Page 3: Table Of Contents
4.2.4 Device leakage current measurement..... . Changes to Previous Version List of Hazard IDs © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 3 of 27 Cios Select /Cios Select FD 03.20... -
Page 4: General
General Safety Information TD00-000.860.01... Safety Information, "Safety Information including IEC XPR2-140.860.01... 62353" Safety Check per IEC 62353:2014-09 XPR2-000.833.01... Replacement instructions for the existing monitor See CB Doc Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 4 of 27 © Siemens Healthineers, 2014 03.20... -
Page 5: Required Tools, Test Equipment And Aids
Resolution test, Type 52 9900051 Safety tester for leakage current and protective conductor resistance test see SPC SMfit Spotmeter 7752848 Dosimeter e.g., Unfors see SPC © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 5 of 27 Cios Select /Cios Select FD 03.20... -
Page 6: Potentially Required Spare Parts
1 x FLC CMOS battery, part no: see SPC: must be replaced every 48 months. 1 x UPS lead gel battery, part no: see SPC: must be replaced every 48 months. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 6 of 27 ©... -
Page 7: Safety Information And Preventive Measures
The following hazard keys are included in this document: [HZID_06H383726] [HZID_06H383731] [HZID_06H383736] [HZID_06H383949] [HZID_06H384420] [HZID_06H384308] [HZID_06H384798] [HZID_06H384277] [HZID_06H422668] [HZID_06H384647] [HZID_06H384803] © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 7 of 27 Cios Select /Cios Select FD 03.20... -
Page 8: X-Ray Generator-Specific Safety Information
If HW loop is still closed at next boot-up a message will be displayed to the user and release of X-ray will be prohibited. Don't forget to open HW loop (inactive Service Switch for radiation release) af‐ ter service. HZID_06H384647 Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 8 of 27 © Siemens Healthineers, 2014 03.20... -
Page 9: Explanation Of Abbreviations
Protocol and must be checked off there accordingly. The sequence for the complete inspection and maintenance is found on the following pages. Each step must be performed, unless otherwise specified. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 9 of 27 Cios Select /Cios Select FD 03.20... -
Page 10: Maintenance Interval
The CMOS battery of the PC in the monitor trolley must be replaced every 48 months. Lead gel battery UPS (uninterruptible power supply) The lead gel battery of the UPS in the monitor trolley must be replaced every 48 months. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 10 of 27 © Siemens Healthineers, 2014... -
Page 11: Safety Inspection 2
It is not necessary to measure and document the braking force of the foot brakes. C-arm Perform all C-arm movements manually while paying attention to the bearing play, noises and smooth movements. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 11 of 27 Cios Select /Cios Select FD 03.20... - Page 12 Install the cassette holder on the I.I., ensure that it locks into place properly. TFT monitors Check the monitors for damage. Check monitors for proper attachment to the monitor trolley. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 12 of 27 © Siemens Healthineers, 2014...
-
Page 13: Safety Inspection
Repeat the procedure for all available zoom formats Dose-area product meter (if present) [HZID_06H384420] Check the dose-area product meter and test its accuracy. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 13 of 27 Cios Select /Cios Select FD 03.20... -
Page 14: Additional Safety Checks
The checks in accordance with IEC 62353 are part of the safety inspection. However, they cannot be performed until all other maintenance activities have been completed. For performance, see “Final result/ quality inspection”. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 14 of 27 © Siemens Healthineers, 2014... -
Page 15: Maintenance 3
3.1 Preventive check of operating values and functions Event log Read out and evaluate the system event log. Check the operating function. Check the operating functions of the system. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 15 of 27 Cios Select /Cios Select FD 03.20... -
Page 16: Periodic Preventive Maintenance
Running surfaces of the wheels Interior space and cables in FLC Upkeep Remount all covers on the system. Entire system: Correct damage to paint work, if possible. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 16 of 27 © Siemens Healthineers, 2014 03.20... -
Page 17: Calibration
3.3 Calibration FD calibration [HZID_06H422668] Perform the FD Calibration, described in the “Online Help” of the service program: Tune Up > System Adjust > FD Calibration © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 17 of 27 Cios Select /Cios Select FD 03.20... -
Page 18: Final Result/Quality Inspection
If the result of the “Dose Sensitivity” test is out of tolerance too, then perform a “Dose Dexi” adjustment (select <Tune UP> <System Adjust> <Dose Dexi> from the SSW main menu). After the “Dose Dexi” adjustment, repeat the IQAP “Dose Sensitivity” test. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 18 of 27 © Siemens Healthineers, 2014... -
Page 19: Checks In Accordance With Iec 62353
Your service organization’s safety in‐ structions as well as the country-specific and customer-specific hygiene regulations must be strictly observed. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 19 of 27 Cios Select /Cios Select FD 03.20... -
Page 20: General Measurement Notes
* Startup Certificate * old Maintenance Certificate * old Test Certificate specified by IEC 62353. If significant differences are found, corrective measures may be necessary. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 20 of 27 © Siemens Healthineers, 2014 03.20... - Page 21 (3) Measurement instrument Device leakage current measurement Two different methods of measurement can be used. Device leakage current, direct measurement, or the differential current measurement procedure. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 21 of 27 Cios Select /Cios Select FD 03.20...
-
Page 22: Grounding Conductor Measurement
If the measured values vary while the power supply cord is being moved, this could indicate a broken ground wire. If necessary, replace the power supply cord. Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 22 of 27 © Siemens Healthineers, 2014... -
Page 23: Device Leakage Current Measurement
(block access, or perform the measurement in a sep‐ arate room). During the measurement, the tester must not touch the ME equipment or any other equipment. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 23 of 27 Cios Select /Cios Select FD 03.20... - Page 24 Perform the leakage current measurement using the differential measurement meth‐ Maximum value in accordance with IEC 62353: 2.0 mA (observe the country- specific regulations!) Device leakage current (in mA) Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 24 of 27 © Siemens Healthineers, 2014 03.20...
-
Page 25: Changes To Previous Version 5
Hazard keys added: 06H384647 and 06H384803 Maximum value for device leakage current measurement corrected. Check of SIEMENS logo and ID labels removed. Some formatting changes made. © Siemens Healthineers, 2014 XPR2-140.831.01.05.02 Page 25 of 27 Cios Select /Cios Select FD 03.20... -
Page 26: List Of Hazard Ids
6 List of Hazard IDs The list shows the Hazard IDs of this document. HZID_06H384798 Voltage still present after switching-off (Page 8) HZID_06H384647 Service switch active (Page 8) Cios Select /Cios Select FD XPR2-140.831.01.05.02 Page 26 of 27 © Siemens Healthineers, 2014 03.20... - Page 27 All other rights are re‐ served. siemens-healthineers.com Siemens Healthineers Headquarters Siemens Healthcare GmbH Henkestr. 127 91052 Erlangen Germany Telephone: +49 9131 84-0 siemens-healthineers.com Print No.: XPR2-140.831.01.05.02 | Replaces: XPR2-140.831.01.04.02 Doc. Gen. Date: 03.20 | Language: English © Siemens Healthineers, 2014...
Need help?
Do you have a question about the Cios Select and is the answer not in the manual?
Questions and answers
Error: " 2444 - FD´ not responding. Turn system off/on"
The error "2444 - FD' not responding. Turn system off/on" on the Siemens Cios Select indicates that the Flat Detector (FD) is not responding to the system. The suggested action is to power the system off and then on again to try to restore communication with the FD.
This answer is automatically generated

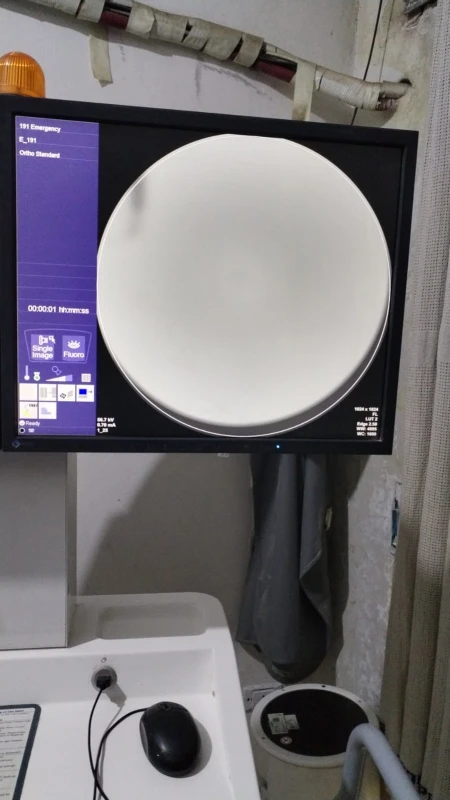

لدي جهاز Siemens cios select لا يعطي صورة واضحة
