PROJECT NAME
LUNA
BASED ON
4ms Tremulus Lune
EFFECT TYPE
Tremolo
PROJECT SUMMARY
An all-analog tremolo featuring six knobs for fine control over every aspect of the waveform.
This documentation is for the kit version of the project. If you purchased the PCB by itself, please
use the
PCB-only version
are completely different due to the specialized parts and assembly methods used in the kit.

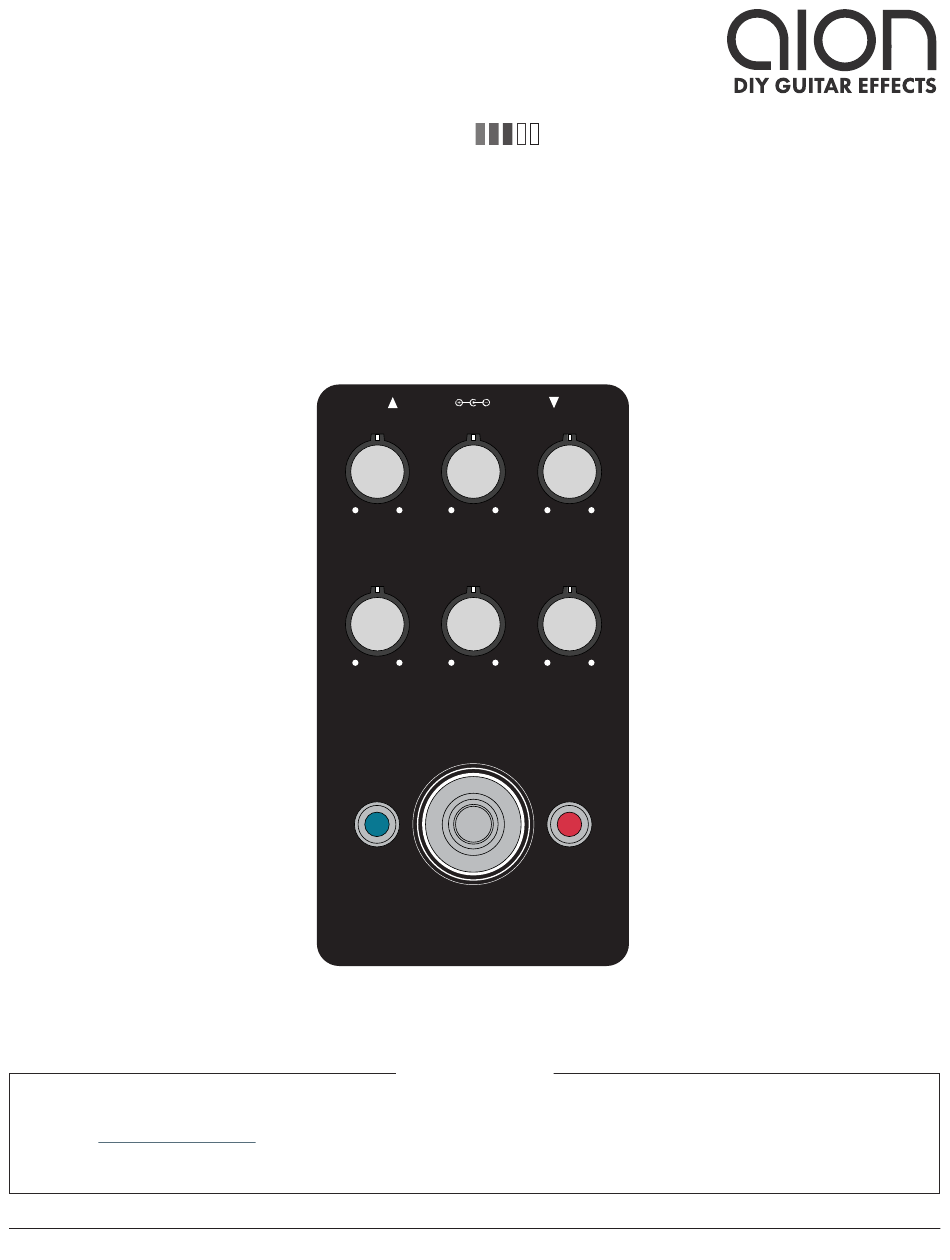

LUNA OPTICAL TREMOLO
SYMMETRY
VOLUME
LUNA
OPTICAL TREMOLO
IMPORTANT NOTE
of the documentation instead. The circuit is the same, but the instructions
BUILD DIFFICULTY
Intermediate
DOCUMENT VERSION
1.0.5 (2024-08-08)
9V
SPACING
RATE
DEPTH
SMOOTH
1
