3.2.2 Fix the Mounting Bracket to a Ceiling ............. 16 3.2.3 Fix the Mounting Bracket to a Pole or Beam ........... 16 3.2.4 Use the Cable Ducts for IPBS1................. 17 3.2.5 Connect External Antennas (only IPBS2, IPBS3 and DB1)......18 3.2.6 Secure the Cable ....................
Installation Guide Mitel IP-DECT Base Station Introduction Introduction This document describes how to install the Base Station. The document is intended for service technicians. For information on how to operate the device, see the applicable Installation and Operation Manual for the device.

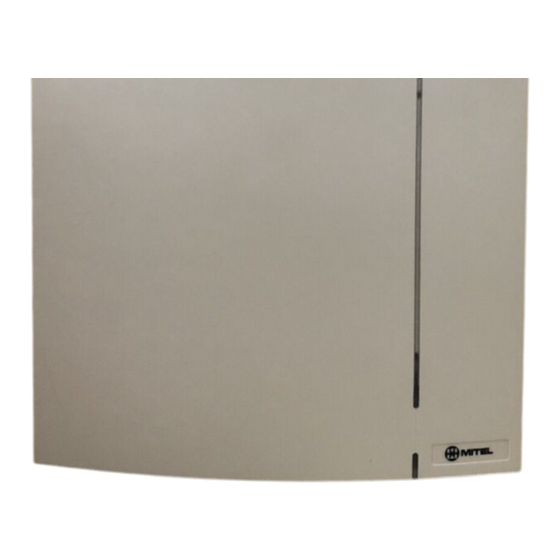

Test Power Supply (RJ45) (RJ45) (RJ12) Figure 1. IPBS1 Overview Contents of the Box The box in which the IPBS1 is packed contains: • An IPBS1 with integrated antennas • A mounting bracket • Two screws with wall plugs Power Distribution...
Page 5
23. Software The software in the IPBS1 can be updated by downloading new software without disconnecting the equipment. The new software is stored in flash memory. For information on how to update the software in the IPBS1, see the applicable Installation and Operation Manual for the IPBS1.
IPBS1 with External Antennas The IPBS1 is available with two omni-directional external antennas. Other external antennas can be mounted as well. This section contains the differences between the IPBS1 with internal and external antennas. For all other information see 2.1.1 IPBS1 with Internal Antenna on page 2.
IPBS3 with external antennas The IPBS2/IPBS3 is backward compatible with the IPBS1 when it comes to coverage, functionality, accessories and mounting bracket. If an old IPBS1 has to be replaced you just reuse the mounting bracket and install the IPBS2/IPBS3.
Page 8
Installation Guide Mitel IP-DECT Base Station Description • A mounting bracket • Two screws with wall plugs Power Distribution The IPBS2/IPBS3 can be powered using the following methods: • Power over Ethernet, IEEE 802.3af • A local AC-adapter NOTE: For more information about power distribution, see 3.3 Power the Base Station...
Installation Guide Mitel IP-DECT Base Station Description Mini firmware 100 ms yellow, 100 ms off. The IPBS2/IPBS3 is in mini firmware mode. TFTP mode Solid yellow. TFTP mode. Error 100 ms red, 100 ms off. No Ethernet connection. Fatal error Solid red.
Page 10
Installation Guide Mitel IP-DECT Base Station Description Back view while lying down MCX connectors Figure 3. IPBS2/IPBS3 with MCX connectors for external antennas. Contents of the Box The box in which the IPBS2/IPBS3 is packed contains: • An IPBS2/IPBS3 with external antennas.
Installation Guide Mitel IP-DECT Base Station Description BS3x0 The following versions are available: • BS330 with Internal antenna • BS340 with External antennas • BS330-9131 (EU) with Internal antenna • BS330-9134 (US) with Internal antennas • BS340-9131 with External antenna...
Page 12
Installation Guide Mitel IP-DECT Base Station Description Software The software in the BS3x0 can be updated by downloading new software without disconnecting the equipment. The new software is stored in flash memory. For information on how to update the software in the BS3x0, see the applicable Installation and Operation Manual for the BS3x0.
Installation Guide Mitel IP-DECT Base Station Description The following versions of the DB1 are available: • DB1 with internal antenna • DB1 with external antennas The DB1 is backward compatible with the BS3x0 when it comes to coverage, functionality, accessories and mounting bracket.
Installation Guide Mitel IP-DECT Base Station Description Power Distribution The DB1 can be powered using the following methods: • From the PBX via the Express Powering Pair (EPP) and data pairs • With a local AC-adapter NOTE: For more information about power distribution, see 3.3 Power the Base Station...
Installation Guide Mitel IP-DECT Base Station Description DIP Switches The DIP switches can be found on the back of the DB1, see Figure 5 on page 11. Note: DIP switch 3 and 4 shall be set to ON. Set DIP switch 1 and 2 to ON or OFF as follows:...
Page 16
Installation Guide Mitel IP-DECT Base Station Description Versions (different type of mains plug) For European countries except U.K. Art. no.: 130137B Order. no.: BSX-0013 For U.K. Art. no.: 130136B Order. no.: BSX-0014 For NA Art. no.: 130138A Order. no.: BSX-0015 For Australia Art.
1 Hold the mounting bracket with its flat side against the wall with the text ‘TOP’ upwards and mark the two holes. The minimum distance between the upper hole and the ceiling or any object above the base station must be at least 65 mm for IPBS1/BS3x0 and 100 mm for IPBS2/IPBS3/DB1, see Figure 7 on page 16.
Installation Guide Mitel IP-DECT Base Station Installation of the Base Station Ceiling 65 mm (IPBS1, BS3x0) 100 mm (IPBS2, DB1) Figure 7. Fixing the mounting bracket to a wall. 3.2.2 Fix the Mounting Bracket to a Ceiling Fixing to a ceiling is done in the same way as the a wall, see 3.2.1 Fix the Mounting Bracket to a...
3.2.4 Use the Cable Ducts for IPBS1 When the base station IPBS1 is mounted to the wall, cable ducts can be used to route the wiring through. 1 Fix the cable duct to the wall in one of the positions shown in Figure 9 on page 18.
Installation Guide Mitel IP-DECT Base Station Installation of the Base Station 65 mm 57 mm 125 mm 75 mm 70 mm 15 mm thick cable ducts Figure 9. Minimum distances between a cable duct and the mounting bracket 3.2.5 Connect External Antennas (only IPBS2, IPBS3 and DB1)
Page 21
Installation Guide Mitel IP-DECT Base Station Installation of the Base Station 6 Connect the coaxial cables to the MCX connectors on the base station. Back view while lying down MCX connectors 7 Mount the base station (3), see 3.2.9 Mount the Base Station on page 22.
Installation Guide Mitel IP-DECT Base Station Installation of the Base Station antenna antenna bracket lock nut Min 74 mm coaxial cable Max 250 mm mounting bracket base station Figure 10. Connect external antennas. 3.2.6 Secure the Cable For safety reasons secure the base station cable to a convenient point at about 30 cm from the base station.
Page 23
Installation Guide Mitel IP-DECT Base Station Installation of the Base Station 2 For information on the pinning of the data jack see the following: • IPBS, Pin the IPBS Cable on page 21. • BS3x0 and DB1, Pin the BS3x0/DB1 Cable on page 22.
3.2.8 Connect the Base Station Cables 1 Only for IPBS1: If it is required that the cables enter the base station centrally from above, guide the cables through the recess in the middle of the base station as shown below.
Installation Guide Mitel IP-DECT Base Station Installation of the Base Station Figure 14. Mounting of the IPBS. Power the Base Station The base station is powered the following ways: • Power over Ethernet (only IPBS). • Power over Express Powering Pairs (EPP) and data pairs (only BS3x0 and DB1) •...
Installation Guide Mitel IP-DECT Base Station Related Documents Related Documents IP-DECT Base Station Installation and Operation Guide 58016279 / October 2020...
Installation Guide Mitel IP-DECT Base Station Related Documents Document History For details in the latest version, see change bars in the document. Version Date Description 26 September 2012 First released version. 15 January 2013 Have just removed the Preliminary stamp at top of pages.
Installation Guide Mitel IP-DECT Base Station RFP Power Consumption Appendix A. RFP Power Consumption The table below show power consumption for a base station connected to and powered from the PBX. The maximum cable length for base stations connected to the PBX must not exceed 1700 meters.
Page 29
Installation Guide Mitel IP-DECT Base Station RFP Power Consumption 58016279 / October 2020...
Page 30
Mitel Deutschland GmbH Zeughofstrasse 110997 Berlin, Germany...
