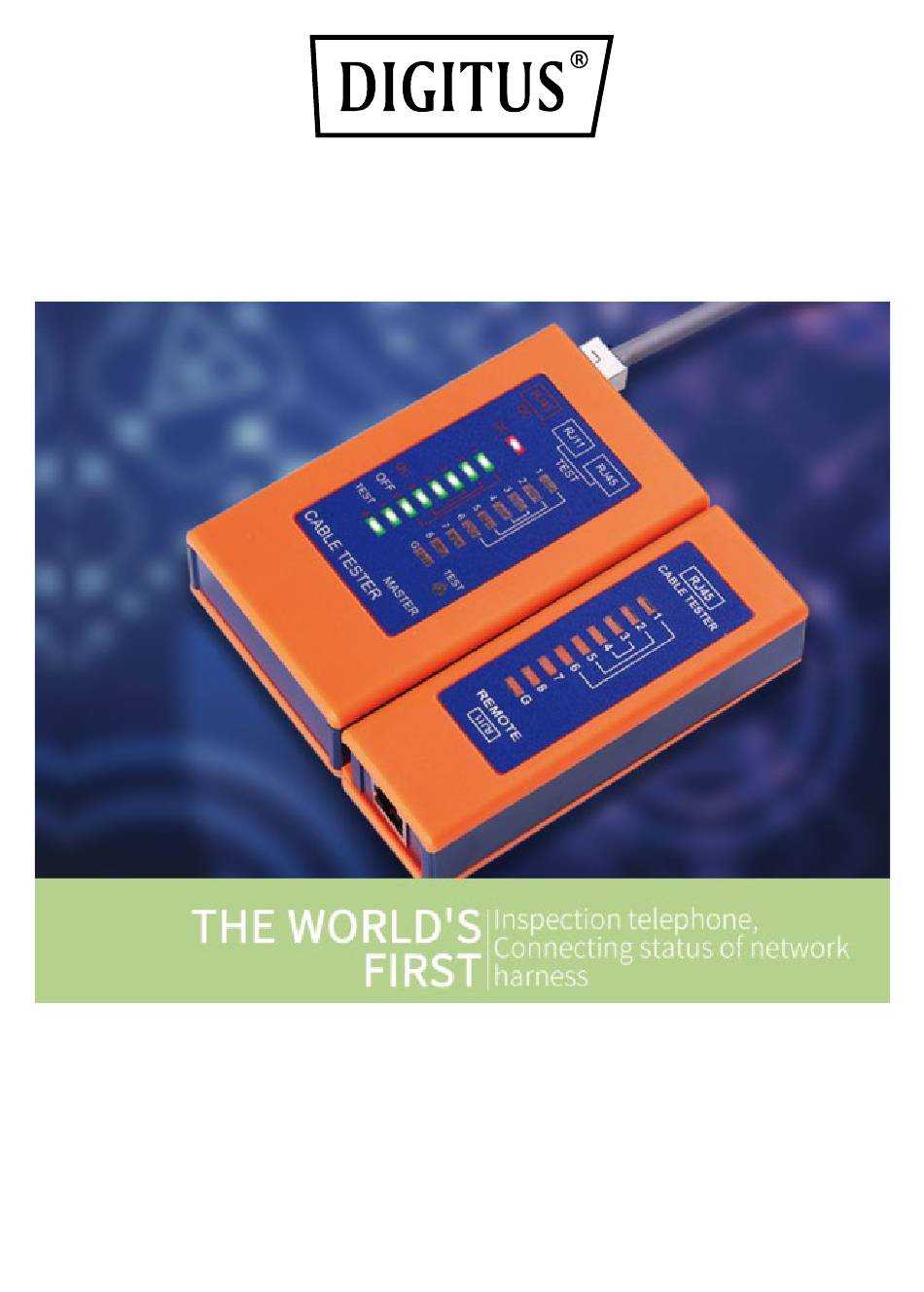

- Page 1 Quick Installation Guide DN-14001-2...
- Page 2 1. Introduction Intelligent, fast and intelligent state tester for connection of telephone and network harness Check the connection between RJ45 connector and wire- harness. Accurately determine which end of the RJ45 connector is Connecting with the network line perfectly solves the problem that the ordinary tester cannot determine two water.
- Page 3 lf the connector is not connected properly to the wire-harness, the indicator light of the wire harness will not be turned on. Function For network 1.2.3.4.5.6.7.8.G line pairs, telephone line 1.2.3.4.5.6 line pairs, root-by-root (pair) test, which (pair) staggered line, short circuit and open circuit can be distinguished and determined.
- Page 4 The network plug and telephone plug are Netting inserted into the main tester and there mote tester respectively, and the host and remote machine sequence indicator lights shine one by one from l to G. Telephone line connection Correct wiring sequence light flashing mode Main tester: 1-2-3-4-5-6-7-8-G Remote Tester: 1-2-3-4-5-6-7-8-G(RJ45)
- Page 5 lf the wiring rack or wall module is tested; two matching jumpers are needed to lead to the tester host and remote machine When using host to test cable with switch, the host voltage of access tester cannot exceed 12V. Connect one end of the network cable to the switch and insert the ...
- Page 6 When live and switch test network line, switch voltage shall not exceed 12V. This machine uses a 1.5V battery. Do not connect, charge, heat or put into the fire to avoid explosion accident. After use, please take out the battery, to avoid leakage and damage the machine after a long time.
