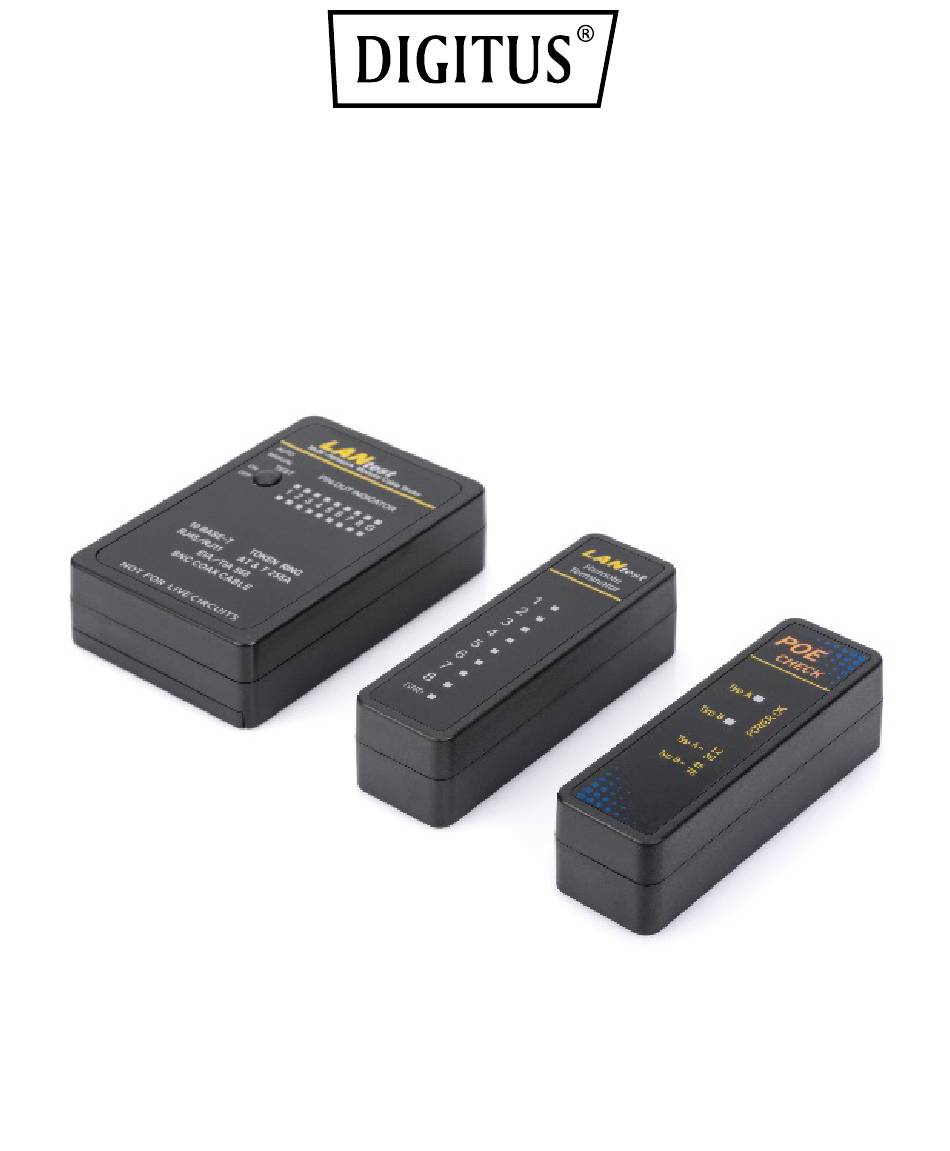

  • Page 1 Network and Communica�on Cable Tester, RJ45 and BNC Quick installa�on guide DN-14001-1...
  • Page 2: Safety Instruction

    According to the European WEEE direc�ve, electrical and electronic equipment must not be disposed with consumers waste. Its components must be recycled or disposed apart from each other. Otherwise contaminative and hazardous substances can pollute our environment. You as a consumer are commited by law to dispose electrical and electronic devices to the producer, the dealer, or public collec�ng points at the end of the devices life�me for free.
  • Page 3: Specification

    2.0 Introduction The LAN tester makes it easy to iden�fy the correct PIN assignment of 10Base-T, 10Base-2, RJ45/TM11 modular cables as well as 258A, TIA-568A/568B and token ring cables by comparing the outgoing cable end with the corresponding receiving cable end. With the remote tester, you can test cables that are installed at a different loca�on, for instance in wall distributors or patch fields.
  • Page 4: Product Profile

    2.3 Product Profile Main Unit Remote Unit 1. RJ45 Jack 7. Test switch for manual scan 2. RJ45 Jack 8. RJ45 Jack 3. LED Display for sourcing end (Jack 1) 9. LED display for receiving end (same as Jack 2) 4.
  • Page 5: Operation

    3.0 Operation 3.1 Loopback Test • 10Base-T Cable Test 1. Plug one end of tested cable on sourcing of RJ45 jack (Marked with ‘.A.') and another end of tested cable on remaining receiving RJ 45 jack. 2. Slide power switch on, the upper row LEDs will start to scan in sequence if the Auto/Manual switch is set on Auto mode, or the LED will light on pin 1 if the Auto/Manual switch is set on Manual mode.
  • Page 6 • Modular Cable test Please follow up the procedures of 10Base-T Cable Test. However, the LED display should be read as the right picture. • 10Base-2 Cable Test 1. Plug the two atached BNC adaptor cables on both RJ45 jacks, then connect the tested cable both ends on BNC adaptor cables.
  • Page 7: Remote Test

    Note: 1) The center pin of BNC should be read on LED 1 and shielding pin of BNC should be read on LED 2. 2) As the 10Base-2 cable has only two wires, we suggest you to read the result of LED scan by manual mode. 3.2 Remote Test 1.
  • Page 8: Test Result

    3. Read the test result from LED display on remote unit. Note: The LED display on remote unit was scanned in sequence corresponding to the sourcing end of master unit. 4.0 Test Result 1. Con�nuity: Pin 2 is continued 2. Open: Pin 2 is opened 3.
  • Page 9 5.0 Warning • This tester is not intended for use on powered circuits. Ataching this tester to a powered circuit can result in damage to the tester or injury to the user. • lf you will not use the tester for a long �me, take off the batery from batery compartment.
  • Page 10 Alterna�ve A Alterna�ve B A class connec�on (End-Span). B class connec�on (Mid-Span). Pin 1,2,3,6 powers. Pin 4,5,7,8 powers. Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address.
