PC ATX power supply tester
Feature

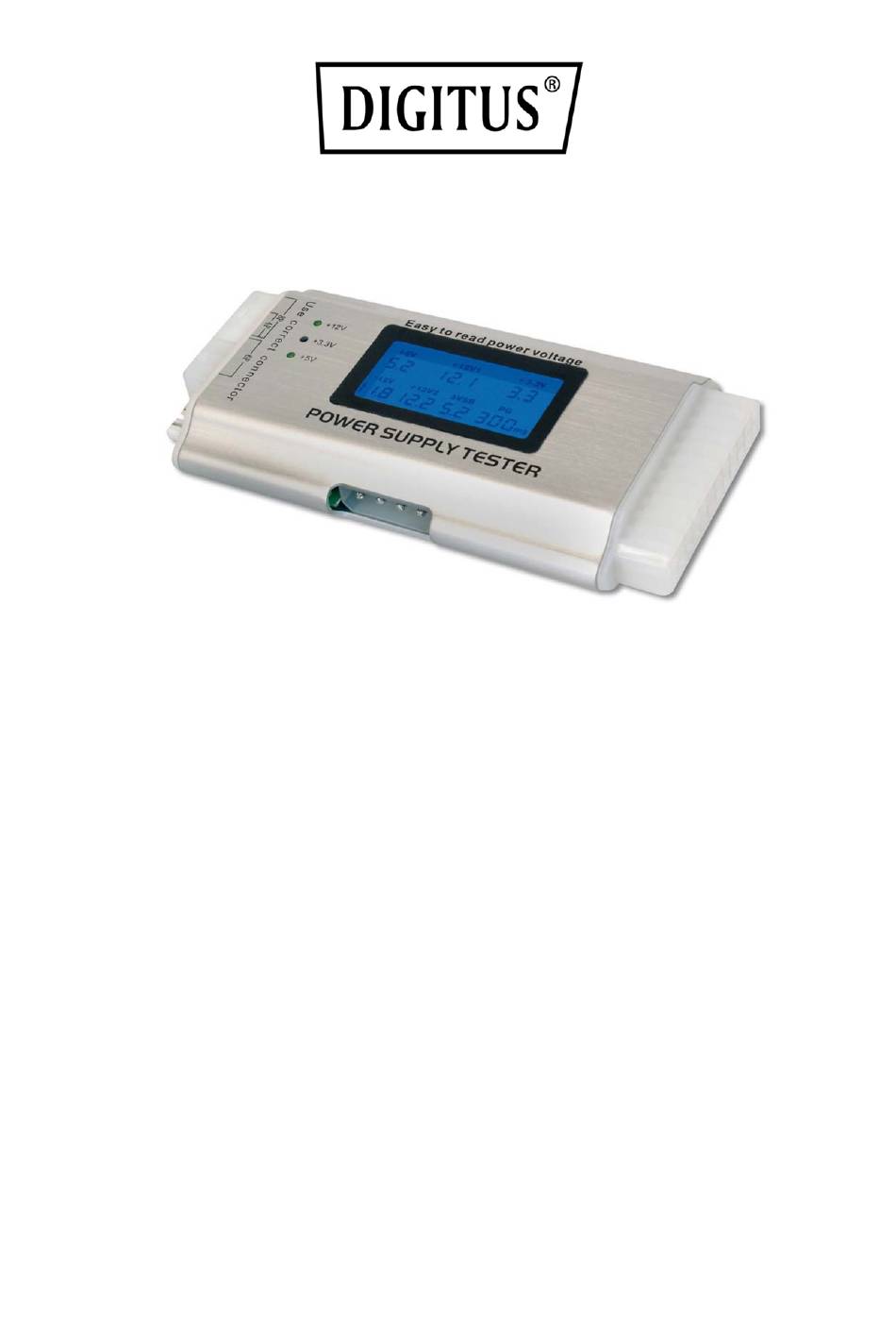

The product designs with LCD which allows you to show the ATX power
voltage. It easy to plug with ATX power 24pin and plug-in (P4/P6/P8) and
display the voltage on the LCD panel.
•
Easy to check ATX power supply.
•
Aluminum case.
•
Accurate voltage indicator +/- 0.1V
(+12V1/+5V/+3.3V/5VSB/+12V2/-12V).
•
ATX P.G .value display.
•
Lower or higher P.G. values alarm.
•
ATX PSU each output connectors check.
Lower voltage detected alarm.
•
•
Over voltage alarm.
•
No voltage detected alarm.
Quick Installation Guide
DA-70601
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitus DA-70601
Summary of Contents for Digitus DA-70601
- Page 1 PC ATX power supply tester Quick Installation Guide DA-70601 Feature The product designs with LCD which allows you to show the ATX power voltage. It easy to plug with ATX power 24pin and plug-in (P4/P6/P8) and display the voltage on the LCD panel.
- Page 2 Installation Plug-in to your ATX power 24pin and plug-in (P4/P6/P8) into the tester before turn on power 20pin ATX PSU: recommend to use P4 connector 24pin ATX PSU: recommend to use P6 connector EPS PSU: recommend to use PS connector Turn on the ATX power supply.
- Page 3 PG (ms) Alarm Blink 0-99 1 00-249 250-500 501-600 600-999 When abnormal happened, it will alarm and relative digit blinks on the screen. VOLTAGE TABLE (B) Warn Voltage Range Limited Voltage Range Low(A) High(B) Min.(C) Max.(D) +4.7V +5.3V +4.0V +6.0V -10.8V +13.2V -10V...
