Living Spaces DON85 Assembly Instructions

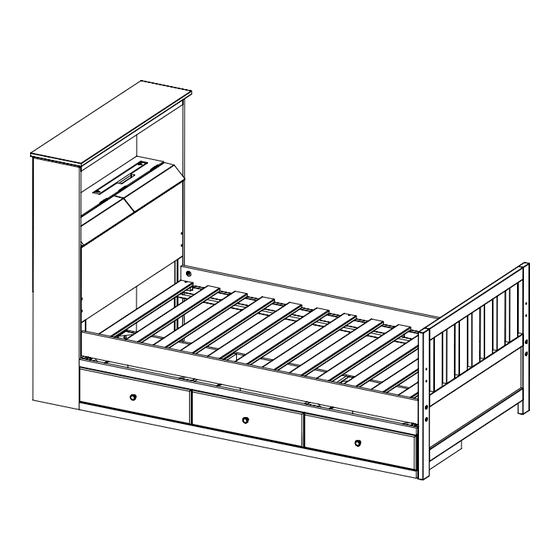

3 drawers storage bed

Download this manual

3 DRAWERS STORAGE BED

Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment.

Separate, identify and count all parts and metal hardware.

Compare with parts list and hardware illustrations to be sure all parts are present. If any parts(s) are missing or damage, contact

your dealer's customer service department. For efficient and speedy service, please indicate the model number and the parts

needed.

Attention: Some lettered parts listed on the instruction sheets may not be in the parts bag, they may already be assembled.

TOOLS REQUIRED: (Not Included)

Phillips Screwdriver

Screw PH 8 x 5/8 "

Part No: HCPF-073

4 pzs

Bronze Corner Brace 3/4" x 3/4"

Part No: HI-CB4

2 pzs

DON60

DON85

EACH UNIT SOLD SEPARATELY

ASSEMBLY INSTRUCTIONS

MODEL No. DON85

Knob Dull Barrel Nickel

Part No. HBJ-CK3675

(3 Pcs) INSTALLED

Bolt 8/32 x 1 Zinc

Part No.HCPP-07

(3 Pcs) Installed

pag 1 of 2

Need help?

Do you have a question about the DON85 and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS 3 DRAWERS STORAGE BED MODEL No. DON85 Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware. Compare with parts list and hardware illustrations to be sure all parts are present. If any parts(s) are missing or damage, contact your dealer's customer service department.
Page 2 STEP-1 Locate the drawer storage bed under the bunk bed as show in diagram. STEP-2 Use the metal bracket (B) and screw(A) to attach the drawer storage bed and the bed rails as shown in diagram. pag 2 of 2...
