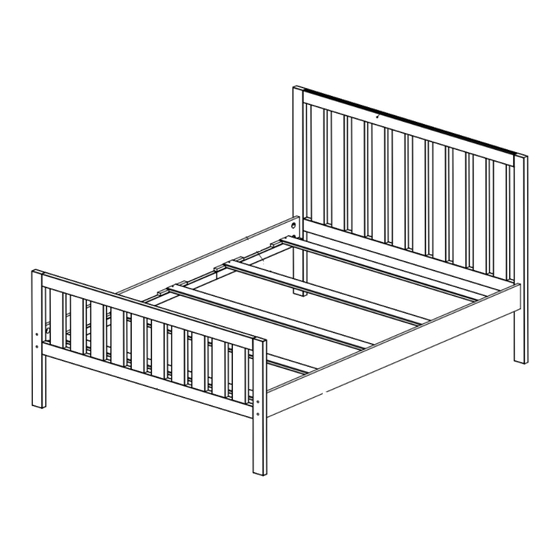

CAPTAIN'S FULL BED
Important: Be sure to check all packing material carefully for small parts which may come loose
inside carton during shipment. Separate, identify and count all parts and metal hardware.
Compare with parts list and hardware illustrations to be sure all parts are present. If any part(s)
are missing or damageD, contact your dealer's customer service deparment. For efficient and
fast service, please indicate the model number and the parts needed.
ATTENTION: Some lettered parts listed on the instruction sheets may not be in
the parts bag, they may already be assembled.
TOOLS REQUIRED
Phillips Screwdriver(Not included)
Allen Key (included)
DON80
SB-1394B
EACH UNIT SOLD SEPARATELY
ASSEMBLY INSTRUCTIONS
MODEL No.
DON80
DON80-130
DON80-35
DON61
Page 1 of 4
Advertisement
Related Manuals for Living Spaces DON80
Summary of Contents for Living Spaces DON80
- Page 1 ASSEMBLY INSTRUCTIONS MODEL No. DON80 CAPTAIN'S FULL BED Important: Be sure to check all packing material carefully for small parts which may come loose inside carton during shipment. Separate, identify and count all parts and metal hardware. Compare with parts list and hardware illustrations to be sure all parts are present. If any part(s) are missing or damageD, contact your dealer's customer service deparment.
- Page 2 PART LIST (DONNA Group) CARTON # DON80 Headboard (1 pc) Footboard (1 pc) CARTON # SB-1394B SLAT ROLL CARTON # DON61 RAIL Page 2 of 4...
- Page 3 HARDWARE LIST (DONNA CAPTAIN'S) PHILLIPS HEAD SCREW 6 x 1 ¼" Part No. HCPF-80 (6 pcs) JOINT CONNECTOR 1/4-20X 9/16 Part No. HIN-209(8 pcs) Allen Key Part No. HIN-04 (2pcs) BOLT JCBB 1/4-20X70MM Part No. HCPP-70Z(8 pcs) Page 3 of 4...
- Page 4 Step-1 Insert (4) BOLT (60mm) (F) into each HEADBOARD (A) hole and (4) Bolt (70mm) (I) into each FOOTBOARD (B) hole. Place (8) JOINT CONNECTORS(G) in RAIL(D) Holes . Hold the JOINT CONNECTORS(G) and tighthen until secure with ALLEN KEY(H). See diagram (1). Do not tighthen bolts all the way in until all parts are assembled...
