Y S e e e e o e O e O e
a l
Pd

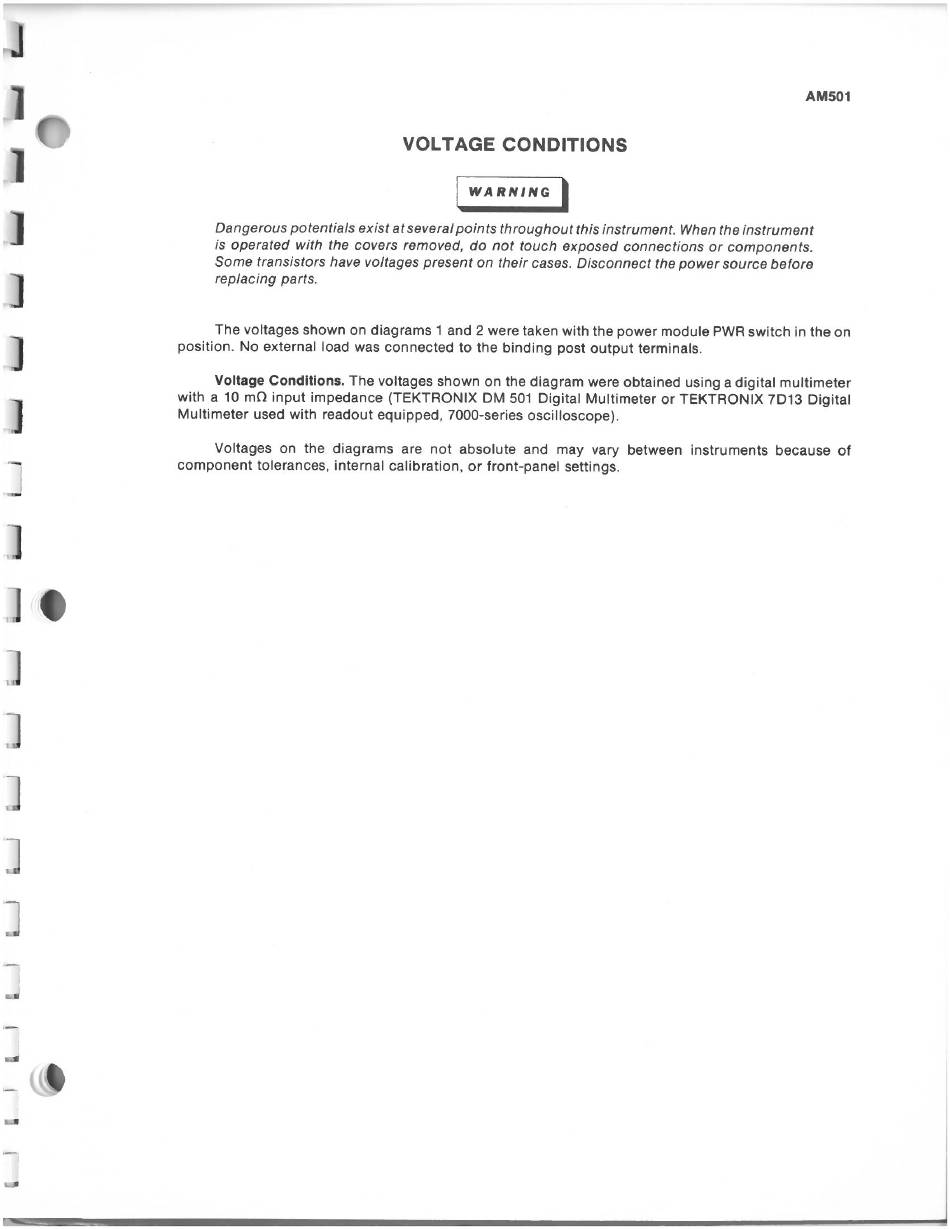

The voltages shown on diagrams 1 and 2 were taken with the power module PWR switch in the on
position. No external load was connected to the binding post output terminals.
Voltage Conditions. The voltages shown on the diagram were obtained using a digital multimeter
with a 10 mQ input impedance (TEKTRONIX DM 501 Digital Multimeter or TEKTRONIX 7D13 Digital
Voltages on the diagrams are not absolute and
may vary between instruments because of
component tolerances, internal calibration, or front-panel settings.
