Lites
HPLED DE WHITE

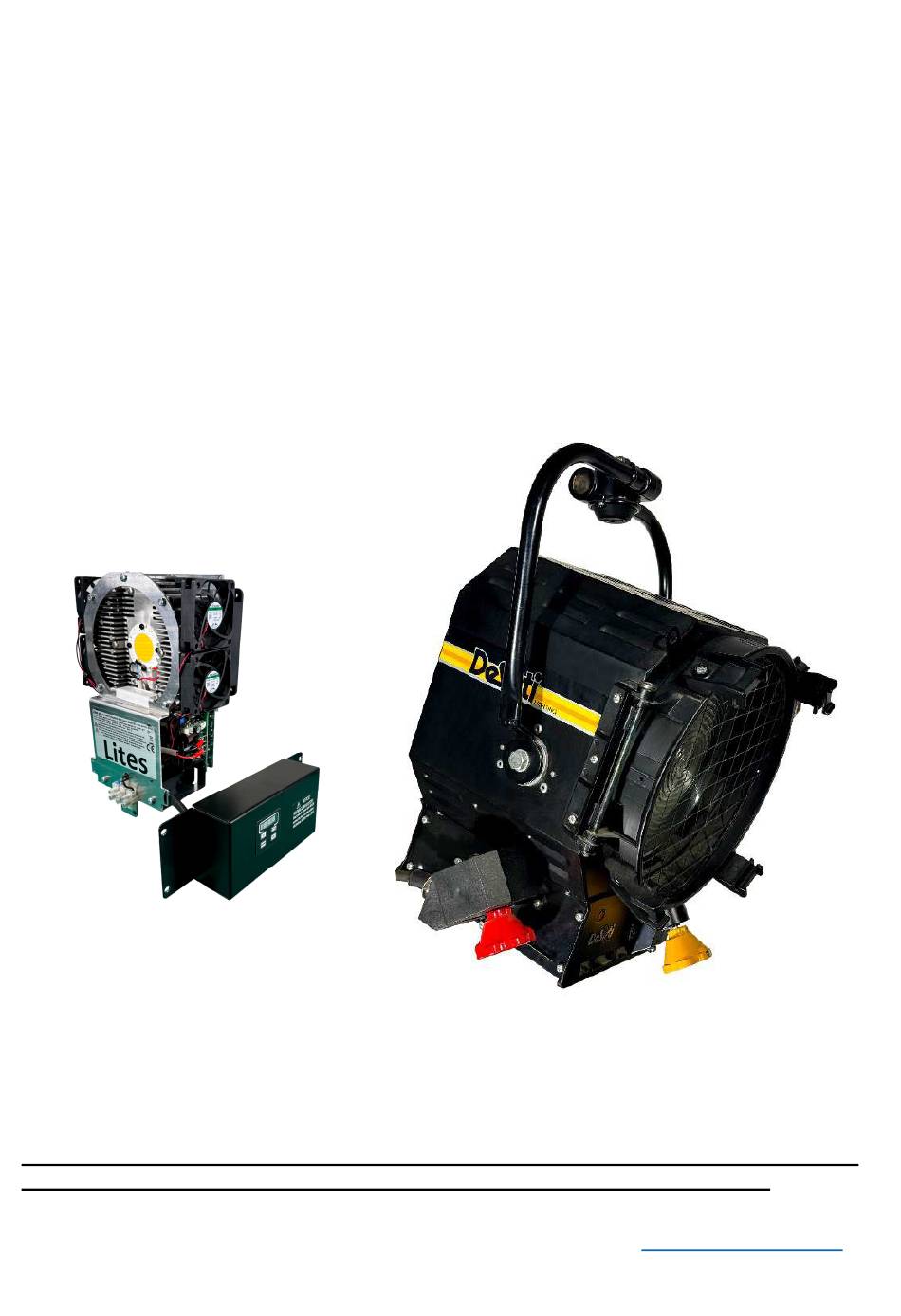

Retrofit for Fresnel
LEONARDO 2000 cod. 320-321 (De Sisti)
Owner's and service manual
Read this manual totally and carefully follow all the instructions contained. File this
manual for future use. It is essential to read all the information contained to ensure
correct installation, service and full operation of the HPLED DE
All operations must be accomplished, handled and carried out by qualified personnel
only.
NOT COMPLYNIG WITH GIVEN NOTICE IT WILL VOID WARRANTY AND WILL FREE
THE MANUFACTURER OF ANY KIND OF RESPONSABILITY AND LIABILITY.
www.litessrl.com
Advertisement
Related Manuals for Lites HPLED DE WHITE
Summary of Contents for Lites HPLED DE WHITE
- Page 1 Lites HPLED DE WHITE Retrofit for Fresnel LEONARDO 2000 cod. 320-321 (De Sisti) Owner's and service manual Read this manual totally and carefully follow all the instructions contained. File this manual for future use. It is essential to read all the information contained to ensure...
-
Page 2: Warranty
Unpacking Unpack the carton and gently remove HPLED DE from the box. Ensure HPLED DE is received in all its parts.In the event the HPLED DE shows any damage, do not use it and contact immediately your transporter as well as your seller. Items in the carton consist of: - N. - Page 3 Technical specifications Power Supply 100-240 V~ 50/60Hz Maximum power consumption 230W Stand-by power consumption 3W Minimum ambient temperature -10°C Maximum ambient temperature 35°C LED Colour Temperature: 2700°k, 3000°K, 4000°K,5600°K (to specify when ordering) Minimum : 90 > and 97 > (depending on LED model) LED Life (see Manufacturers ’...
- Page 4 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9 Fig.10 Fig.11 Fig.12 Pagina 4 di 8...
- Page 5 (Controller sets the device in a listing to read: settings, DMX address, personality settings, (Read all DMX mode including all DMX channels above) ON/OFF ”Identify”: This mode is used to identify the manufacturer’s device (Lites srl). It gives a flash of light from the LED. Model information (HPLED DE) Software version information (HPLEDII –T v.x.xx)
- Page 6 Menu items Displayed Allowed or Function Message displayed values Addr Set Up DMX Address 001..510 1 ch 2 ch Mode DMX Operating mode (see next page) Manual light output adjustment (this is possible even if no DMX is 0..255 present). Adjusted value will be stored on the internal permanent memory Shows driver operating temperature drUt ..°C...
- Page 7 DMX Operating Modes (Mode) HPLED DE provides different DMX operating modes ensuring the ideal use of the DMX universe Shutter/strobo, 8/16 bit dimmer, fan speed and LED frequence are adjustable. 1ch mode Channel Function DMX Values dimmer 0..255 Light output: 0=Off, 255=Maximum Power 2ch mode Channel Function...
- Page 8 Error messages In case of malfunction, the following messages can be shown: Led sensor error: the sensor on the led is faulty. Overtemperature LED: the temperature on the LED exceeds the allowed limit, check if the fan is working. Micro overtemperature: the temperature on the driver board exceeds the allowed limits, check if the fan is working.
